Hydro-Quebec Metering Cabinets
NEMA 1
<< Product Information << Commercial Enclosures <<

Download PDF


Application
  • Designed for indoor housing of metering transformers per Hydro Quebec specifications.

Standards
  • CSA Approved
  • Complies with
    • IEC 60529, IP20

Construction
  • Formed and spot welded from 14 or 16 gauge steel.
  • Spot welded construction and formed edges.
  • Removable inner panels.
  • Hinged covers.
  • 2 cutouts in top of each cabinet with metering plates included.

Finish
  • Enclosure and cover are finished in ANSI 61 gray inside and out.

Accessories
  • N/A


Back to Top

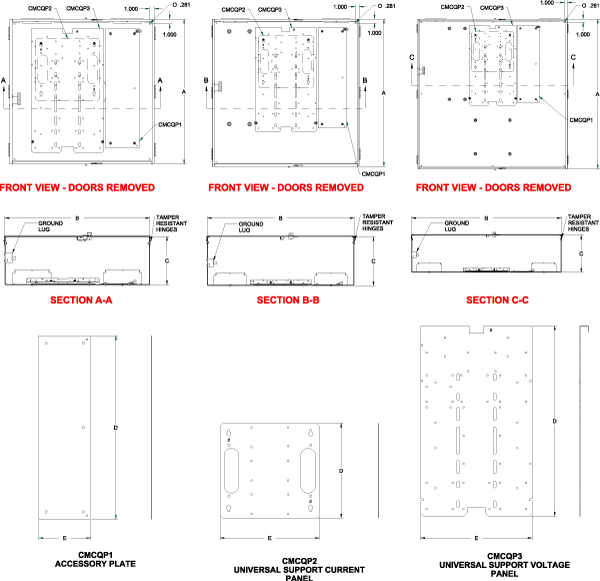

Cabinet Catalog Numbers
Part No. Dimensions Gauge
A B C
CMCQ303010 30 30 10 16
CMCQ363612 36 36 12 14
CMCQ484812 48 48 12 14

Panel Catalog Numbers
Panel Part No. Description Dimensions
D E
CMCQP1 Accessory Plate 24.685 7.000
CMCQP2 Universal Support Current Panel 12.756 13.386
CMCQP3 Universal Support Voltage Panel 25.591 15.006

Panel Selection Guide
Part No. Panel supplied with enclosure Panel capacity per enclosure
CMCQP1 CMCQP2 CMCQP3 CMCQP1 CMCQP2 CMCQP3
CMCQ303010 1 1 1 1 1 1
CMCQ363612 1 1 1 2 1 1
CMCQ484812 1 1 1 2 2 1
