Type 1 Mild Steel Small Wallmount Enclosure N1J Series

Hinge Door with Quarter Turn

Application

  • Designed for indoor use to house controls, instruments and components not requiring oil-tight or dust-tight protection.

Standards

  • UL-50 Type 1
  • CSA Type 1
  • Complies with
    • NEMA Type 1
    • IEC 60529, IP20

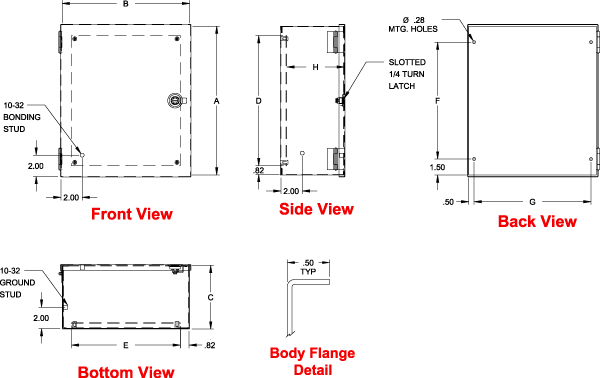

Construction

  • Formed and spot welded from 16 gauge steel.
  • Formed steel covers close by use of slotted quarter turn latch.
  • Full swing door using butt hinges.
  • Through holes in back for wall mounting.
  • Bonding stud is provided on the door and a grounding stud is provided on the box.
  • Includes 14 gauge steel inner panel.

Finish

  • Enclosure and cover are finished in ANSI 61 gray powder coating.
  • Inner panel is finished in white powder coating

Accessories

Gallery Image

Enclosure Inner Panel
Part No. H W D H W
N1J664 6.00 6.00 4.00 4.25 4.25
N1J864 8.00 6.00 4.00 6.25 4.25
N1J884 8.00 8.00 4.00 6.25 6.25
N1J1084 10.00 8.00 4.00 8.25 6.25
N1J10104 10.00 10.00 4.00 8.25 8.25
N1J12104 12.00 10.00 4.00 10.25 8.25
N1J12124 12.00 12.00 4.00 10.25 10.25
N1J14124 14.00 12.00 4.00 12.25 10.25
N1J886 8.00 8.00 6.00 6.25 6.25
N1J1086 10.00 8.00 6.00 8.25 6.25
N1J10106 10.00 10.00 6.00 8.25 8.25
N1J12106 12.00 10.00 6.00 10.25 8.25
N1J12126 12.00 12.00 6.00 10.25 10.25
N1J14126 14.00 12.00 6.00 12.25 10.25
N1J16126 16.00 12.00 6.00 14.25 10.25
N1J20126 20.00 12.00 6.00 18.25 10.25
N1J12128 12.00 12.00 8.00 10.25 10.25
N1J14128 14.00 12.00 8.00 12.25 10.25

Need Assistance? Contact Us.

Data subject to change without notice.
