N1A Series Panel Enclosure
Non-Ventilated - NEMA 1 |
| << Product Information << Commercial Enclosures << |
|
| Application |
|
- Designed for indoor use to house controls, instruments and components not requiring oil-tight or dust-tight protection.
|
| |
| Standards |
- UL 50 Type 1 on models marked1
- CSA Type 1
- Complies with
|
| |
| Construction |
- Enclosure is formed and spot welded from 14 gauge steel.
- Removable 12 or 14 gauge inner panel is mounted in the rear of the enclosure on collar studs.
- Removable door is mounted on slip hinges.
- Door is fastened with a slotted quarter turn latch; doors 30” and higher are provided with two latches.
- A bonding stud is provided on the door and a grounding stud is provided in the box.
- Mounting holes are provided in the rear of the enclosure.
|
| |
| Finish |
- Enclosure and door are finished in ANSI 61 gray powder coating.
- Inner panel is finished in white powder coating.
|
| |
| Accessories |
|
|
|
Back to Top |
 |
| |

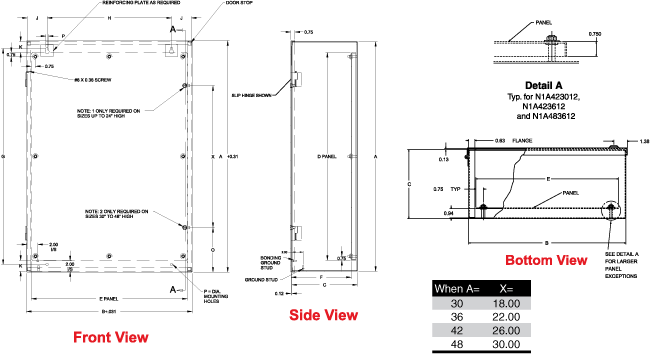

| Part No. |
Dimensions |
Panel Size |
Panel
Gauge |
No. of
Studs |
|
Mounting Dimensions |
|
Panel Clearance |
|
Ship
Wt.
lbs |
| A |
B |
C |
D |
E |
G |
H |
J |
Q |
P |
F |
K |
O |
| N1A16127¹,² |
16 |
12 |
7 |
13 |
10.5 |
14 |
4 |
13.88 |
7.00 |
2.50 |
1.06 |
0.31 |
6.04 |
1.5 |
— |
25 |
| N1A16167¹,² |
16 |
16 |
7 |
13 |
14.5 |
14 |
4 |
13.88 |
11.00 |
2.50 |
1.06 |
0.31 |
6.04 |
1.5 |
— |
30 |
| N1A16207¹,² |
16 |
20 |
7 |
13 |
18.5 |
14 |
4 |
13.88 |
15.00 |
2.50 |
1.06 |
0.31 |
6.04 |
1.5 |
— |
36 |
| N1A20167¹,² |
20 |
16 |
7 |
17 |
14.5 |
14 |
4 |
17.88 |
11.00 |
2.50 |
1.06 |
0.31 |
6.04 |
1.5 |
— |
37 |
| N1A20207¹,² |
20 |
20 |
7 |
17 |
18.5 |
14 |
4 |
17.88 |
15.00 |
2.50 |
1.06 |
0.31 |
6.04 |
1.5 |
— |
43 |
| N1A24167¹,² |
24 |
16 |
7 |
21 |
14.5 |
14 |
4 |
21.88 |
11.00 |
2.50 |
1.06 |
0.31 |
6.04 |
1.5 |
— |
43 |
| N1A24207¹,² |
24 |
20 |
7 |
21 |
18.5 |
14 |
4 |
21.88 |
15.00 |
2.50 |
1.06 |
0.31 |
6.04 |
1.5 |
— |
51 |
| N1A24247¹,² |
24 |
24 |
7 |
21 |
22.5 |
12 |
4 |
21.88 |
19.00 |
2.50 |
1.06 |
0.31 |
6.01 |
1.5 |
— |
67 |
| N1A30207¹,² |
30 |
20 |
7 |
26 |
18.5 |
12 |
6 |
27.50 |
12.75 |
3.63 |
1.25 |
0.44 |
6.01 |
2.0 |
6.16 |
67 |
| N1A30247¹,² |
30 |
24 |
7 |
26 |
22.5 |
12 |
6 |
27.50 |
16.75 |
3.63 |
1.25 |
0.44 |
6.01 |
2.0 |
6.16 |
80 |
| N1A36247¹,² |
36 |
24 |
7 |
32 |
22.5 |
12 |
6 |
33.50 |
16.75 |
3.63 |
1.25 |
0.44 |
6.01 |
2.0 |
7.16 |
94 |
| N1A36307² |
36 |
30 |
7 |
32 |
28.5 |
12 |
8 |
33.50 |
22.75 |
3.63 |
1.25 |
0.44 |
6.01 |
2.0 |
7.16 |
114 |
| N1A16129¹,² |
16 |
12 |
9 |
13 |
10.5 |
14 |
4 |
13.88 |
7.00 |
2.50 |
1.06 |
0.31 |
8.04 |
1.5 |
— |
27 |
| N1A20169¹,² |
20 |
16 |
9 |
17 |
14.5 |
14 |
4 |
17.88 |
11.00 |
2.50 |
1.06 |
0.31 |
8.04 |
1.5 |
— |
31 |
| N1A20209¹,² |
20 |
20 |
9 |
17 |
18.5 |
14 |
4 |
17.88 |
15.00 |
2.50 |
1.06 |
0.31 |
8.04 |
1.5 |
— |
47 |
| N1A20249¹,² |
20 |
24 |
9 |
17 |
22.5 |
14 |
4 |
17.88 |
19.00 |
2.50 |
1.06 |
0.31 |
8.04 |
1.5 |
— |
55 |
| N1A24209¹,² |
24 |
20 |
9 |
21 |
18.5 |
14 |
4 |
21.88 |
15.00 |
2.50 |
1.06 |
0.31 |
8.04 |
1.5 |
— |
55 |
| N1A24249¹,² |
24 |
24 |
9 |
21 |
22.5 |
12 |
4 |
21.88 |
19.00 |
2.50 |
1.06 |
0.31 |
8.01 |
1.5 |
— |
125 |
| N1A30209¹,² |
30 |
20 |
9 |
26 |
18.5 |
12 |
6 |
27.50 |
12.75 |
3.63 |
1.25 |
0.44 |
8.01 |
2.0 |
6.16 |
72 |
| N1A30249¹,² |
30 |
24 |
9 |
26 |
22.5 |
12 |
6 |
27.50 |
16.75 |
3.63 |
1.25 |
0.44 |
8.01 |
2.0 |
6.16 |
85 |
| N1A30309² |
30 |
30 |
9 |
26 |
28.5 |
12 |
8 |
27.50 |
22.75 |
3.63 |
1.25 |
0.44 |
8.01 |
2.0 |
6.16 |
102 |
| N1A36249¹,² |
36 |
24 |
9 |
32 |
22.5 |
12 |
6 |
33.50 |
16.75 |
3.63 |
1.25 |
0.44 |
8.01 |
2.0 |
7.16 |
107 |
| N1A36309² |
36 |
30 |
9 |
32 |
28.5 |
12 |
8 |
33.50 |
22.75 |
3.63 |
1.25 |
0.44 |
8.01 |
2.0 |
7.16 |
120 |
| N1A42249¹,² |
42 |
24 |
9 |
38 |
22.5 |
12 |
6 |
39.50 |
16.75 |
3.63 |
1.25 |
0.44 |
8.01 |
2.0 |
8.16 |
111 |
| N1A242012¹,² |
24 |
20 |
12 |
21 |
18.5 |
14 |
4 |
21.88 |
15.00 |
2.50 |
1.06 |
0.31 |
11.04 |
1.5 |
— |
61 |
| N1A242412¹,² |
24 |
24 |
12 |
21 |
22.5 |
12 |
4 |
21.88 |
19.00 |
2.50 |
1.06 |
0.31 |
11.01 |
1.5 |
— |
132 |
| N1A302412¹,² |
30 |
24 |
12 |
26 |
22.5 |
12 |
6 |
27.50 |
16.75 |
3.63 |
1.25 |
0.44 |
11.01 |
2.0 |
6.16 |
94 |
| N1A363012² |
36 |
30 |
12 |
32 |
28.5 |
12 |
8 |
33.50 |
22.75 |
3.63 |
1.25 |
0.44 |
11.01 |
2.0 |
7.16 |
129 |
| N1A423012 |
42 |
30 |
12 |
38 |
28.5 |
12 |
8 |
39.50 |
22.75 |
3.63 |
1.25 |
0.44 |
11.01 |
2.0 |
8.16 |
144 |
| N1A423612 |
42 |
36 |
12 |
38 |
34.5 |
12 |
8 |
39.50 |
28.75 |
3.63 |
1.25 |
0.44 |
11.01 |
2.0 |
8.16 |
169 |
| N1A483612 |
48 |
36 |
12 |
44 |
34.5 |
12 |
8 |
45.50 |
28.75 |
3.63 |
1.25 |
0.44 |
11.01 |
2.0 |
9.16 |
197 |
¹ UL 50 listed Type 1
² Flat Panel |
| |
|
