1416 Series - NEMA 1
Ventilated Component Case |
| << Product Information << Commercial Enclosures << |
|
| Application |
|
- Designed to provide mechanical protection for components requiring ventilation.
- Suitable for use where heat dissipation is required.
|
| |
| Standards |
|
| |
| Construction |

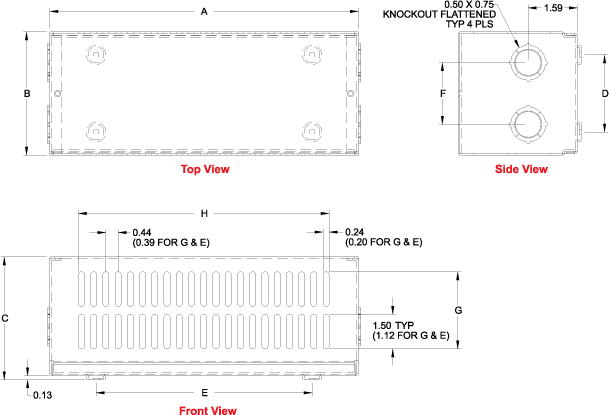

- Base is formed from 16 gauge steel with two 0.5”/0.75” conduit knockouts located in each end.
- Four .125” high raised dimples with mounting holes are provided on the base.
- Cover is formed from 18 gauge steel with 0.235” x 1.5” ventilating slots (0.199” x 1.12” on E & G only).
- Screw holes and offsets in the cover allow easy assembly.
|
| |
| Finish |
- Base and cover are finished in ANSI 61 gray powder coating.
|
| |
| Accessories |
|
|
|
Back to Top |
 |
| |
| Part No. |
Dimensions |
Ventilated Area |
Ship Wt.
(Lbs) |
| A |
B |
C |
D |
E |
F |
G |
H |
| 1416E |
6 |
4 |
4 |
2.5 |
4 |
2 |
2.50 |
4.06 |
2 |
| 1416G |
10 |
4 |
4 |
2.5 |
7 |
2 |
2.50 |
8.31 |
2 |
| 1416I |
10 |
6 |
6 |
4.5 |
7 |
3 |
3.25 |
7.68 |
4 |
| 1416K |
11 |
7 |
7 |
5.5 |
8 |
4 |
5.00 |
7.68 |
6 |
| 1416M |
12 |
8 |
8 |
6.5 |
9 |
5 |
5.00 |
10.31 |
8 |
| 1416O |
15 |
10 |
8 |
8.5 |
12 |
6 |
5.00 |
12.93 |
10 |
| 1416Q |
20 |
10 |
8 |
8.5 |
17 |
6 |
5.00 |
18.18 |
12 |
| 1416T |
20 |
10 |
10 |
8.5 |
17 |
6 |
6.75 |
15.56 |
14 |
|
| |
