| Part No. |
Optional Panel
Part Number |
|
|
|
Panel
Size |
Mounting |
Overall
Dimensions |
Knockout
Pattern |
Shipping
Wt. lbs |

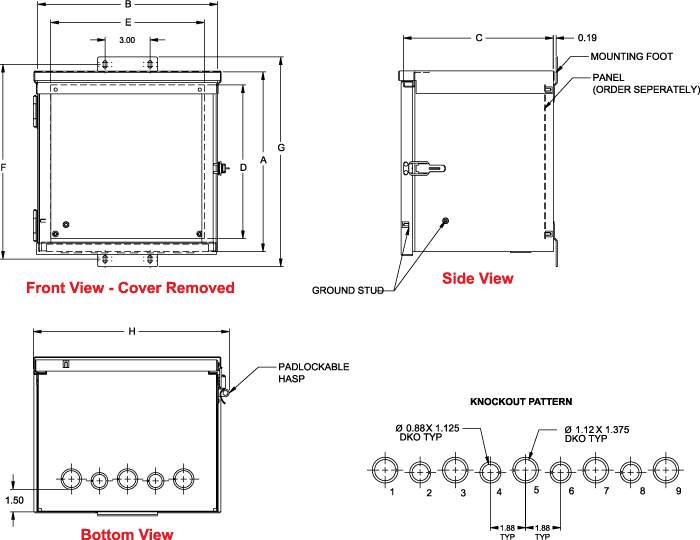

| A |
B |
C |
D |
E |
F |
G |
H |
| C3R644HCR |
|
6 |
4 |
4 |
4.25 |
2.25 |
7.00 |
8.00 |
5.10 |
2-3-4 |
3 |
| C3R664HCR |
|
6 |
6 |
4 |
4.25 |
4.25 |
7.00 |
8.00 |
7.10 |
2-3-4 |
5 |
| C3R864HCR |
|
8 |
6 |
4 |
6.25 |
4.25 |
9.00 |
10.00 |
7.10 |
2-3-4 |
6 |
| C3R886HCR |
|
8 |
8 |
6 |
6.25 |
6.25 |
9.00 |
10.00 |
9.10 |
6-7-8-9 |
8 |
| C3R1086HCR |
|
10 |
8 |
6 |
8.25 |
6.25 |
11.00 |
12.00 |
9.10 |
6-7-8-9 |
9 |
| C3R12106HCR |
|
12 |
10 |
6 |
10.25 |
8.25 |
13.00 |
14.00 |
11.10 |
3-4-5-6-7 |
11 |
| C3R12126HCR |
|
12 |
12 |
6 |
10.25 |
10.25 |
13.00 |
14.00 |
13.10 |
3-4-5-6-7 |
13 |
| C3R121210HCR |
|
12 |
12 |
10 |
10.25 |
10.25 |
13.00 |
14.00 |
13.10 |
3-4-5-6-7 |
20 |
)
