Hammond Mfg. - 3500 BTU Side Mt A/C (DTS Series)

Side Mounting DTS Series - NEMA 3R, 4, 4X
3500 BTU/H

Description

Narrow design for side mounting on any enclosure surface where hot spot or low capacity cooling is required.
Closed loop cooling ensures clean enclosure air is recirculated without ever mixing with contaminated ambient air.

Standards

Features

R134a refrigerant.
Thermostat control accessible from inside enclosure.
Expansion valve increases efficiency with improved evaporator heat transfer and less frequent compressor operation.
Built in condensor/evaporator
Continuous air circulation from high capacity fans.
EMI/RFI suppression meets CE.
Self-diagnostics on startup.
Fault indication via LED light.
Door contact for power down when enclosure door is opened.

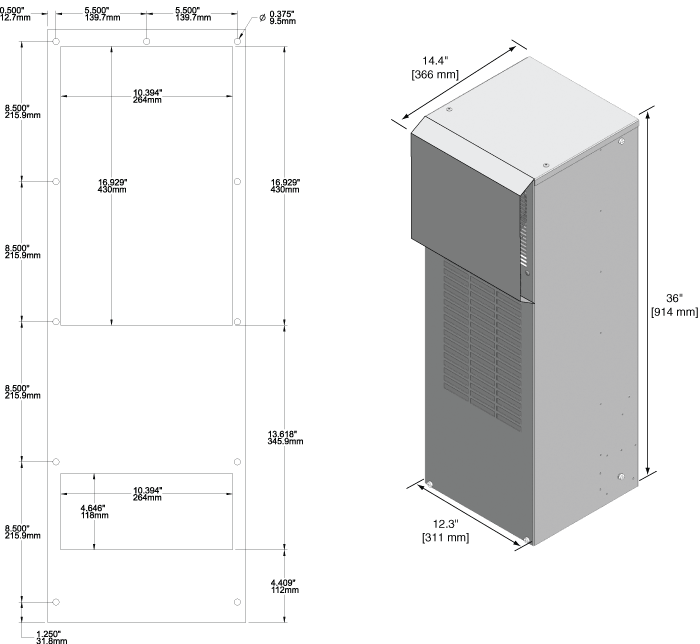

Gasket, mounting kit and template for cutout and drilling are included.
Condensate drain hose and clamp
Easy install with "Click & Fit" system

Accessories

Refrigeration Data
Rated Capacity	3500-5000
Type of Refrigerant	R134a
Adjustable Set Points	+ 59…+ 131 / + 15…+ 45C
	Factory setting +95 F (+35C)
Max Ambient Air Temp	+131 F (+55 C)
Min Ambient Air Temp	+59 F +15 C
Air Capacity (unrestricted)	Internal Circulation 341 CFM
	External Circulation 706 CFM
Condensate Discharge	Condensate Evaporator
Filter Mat	Filterless
Db Noise Level	<70 dB (A)
Unit Weight	108 lbs (49 kg)
Exterior Case	Galvaniized Sheet Steel /304 Stainless Steel
Finish	RAL7035 light gray finish / #4 Brush Finish SS
Nema Rating	Enclosures IP 54/Nema 3R, 4, 4X
