Hammond Mfg. - Type 12 1200 BTU Side Mt A/C (DTS Series)

Side Mounting DTS Series
1200 BTU/H

<< Product Information << Climate Control <<

Description

Designed for side mounting on any enclosure surface where hot spot cooling or low capacity cooling is required.
Compact design uses minimal surface area.
Closed loop cooling ensures clean enclosure air is recirculated without ever mixing with contaminated ambient air.

Standards

Maintains enclosure's NEMA 12 rating
IP 54
UR, cUR and CE

Features

R134a refrigerant.
Thermostat control.
Continuous air circulation from high capacity fans.
EMI/RFI suppression meets CE.
Line cord with plug (115 V).
Washable filter mat protected within an easily removable grill.

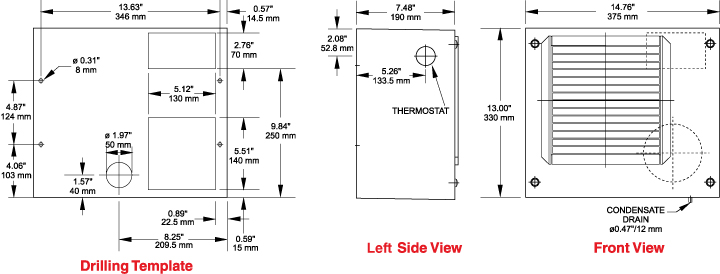

Gasket, mounting kit and template for enclosure cutout and drilling are included.
Condensate drain hose and clamp provided.
Exterior case easily removable for field service.
Q Mount allows unit to hang in place for easy installation.

Accessories

Part No.	Ship Wt. lbs
DTS1200A115LG	42
DTS1200A230LG	42

Technical Data

Electrical Data	DTS1200A115	DTS1200A230LG
Rated Voltage	115 V 60 Hz	230 V 50/60 Hz
Rated Voltage	110 v 50 Hz
Range of Operation	103-127 V	207-253 V
Power Consumption	200 W	200 W
Running Amps	2.2 A	1.3/2.5 A
Starting Current	15.7 A	9.5/13.0 A
Line Cord	With Plug	Without Plug

Refrigeration Data
Rated Capacity	1,200 BTU/H (350 Watts)
Type of Refrigerant	R134a
Regrigerant Charge	280 g
Adjustable Thermostat	Factory setting +95°F (+35°C)
Max. Ambient Air Temp.	+125°F (+52°C)
Min. Ambient Air Temp.	+46°F (+8°C)
Air Capacity (unrestricted)	Internal Circulation 106 CFM External Circulation 230 CFM
Condensation Discharge	Direct via tube
Filter Mat	150 g/m²
Db Noise Level	<62 dB (A)
Unit Weight	40 lbs (18 kg)
Exterior Case	Galvanized sheet metal
Finish	RAL7035 light grey finish
NEMA Rating	Enclosures IP 54/NEMA 12
