Hammond Mfg. - Type 12 3500 BTU Side Mt A/C (DTS Series)

Side Mounting DTS Series
3500 BTU/H

Description

Compact design for side mounting on any enclosure surface where hot spot or low capacity cooling is required.
Closed loop cooling ensures clean enclosure air is recirculated without ever mixing with contaminated ambient air.

Standards

Features

R134a refrigerant.
Thermostat control.
Expansion valve increases efficiency with improved evaporator heat transfer and less frequent compressor operation.
Built in condensate evaporator.
Continuous air circulation from high capacity fans.
EMI/RFI suppression meets CE.
Line cord with plug (230 V).
Volt free N/O (normally open) contact for high pressure failure indication.
Door contact for power down when enclosure door is opened.
Washable filter mat protected within an easily removable grill.

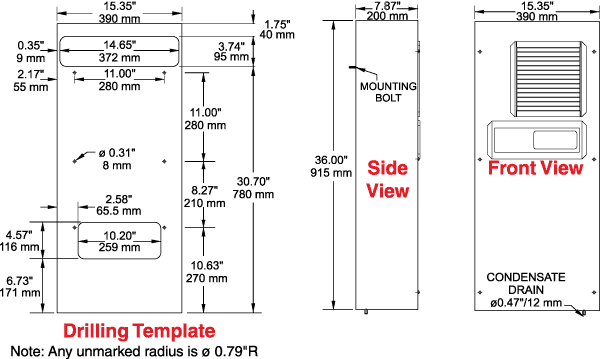

Gasket, mounting kit and template for cutout and drilling are included.
Condensate drain hose and clamp.
Exterior case easily removable for resetting thermostat and field service.
Q Mount allows unit to hang in place for easy installation.

Accessories

Technical Data

Refrigeration Data
Rated Capacity	3500 BTU/H (1014 Watts)
Type of Refrigerant	R134a
Regrigerant Charge	480 g
Adjustable Thermostat	Factory setting +95°F (+35°C)
Max. Ambient Air Temp.	+125°F (+52°C)
Min. Ambient Air Temp.	+46°F (+8°C)
Air Capacity (unrestricted)	Internal Circulation 247 CFM External Circulation 341 CFM
Condensation Discharge	Condensate Evaporator
Filter Mat	150 g
Db Noise Level	<64 dB (A)
Unit Weight	94 lbs (43 kg)
Exterior Case	Galvanized sheet metal
Finish	RAL7035 light grey finish
NEMA Rating	Enclosures IP 54/NEMA 12
