Hammond Mfg. - Type 12 4000 & 7500 BTU Side Mt A/C (DTS Series)

Side Mounting DTS Series
4000 & 7000 BTU/H

Description

Designed for side mounting on any enclosure surface where high capacity system cooling is required.
Closed loop cooling ensures clean enclosure air is recirculated without ever mixing with contaminated ambient air.
Optimum air circulation with maximum clearance distance between warm inlet and cold outlet for reduced hot spot locations.

Standards

Features

R134a refrigerant.
Thermostat control accessible from inside enclosure.
Hot gas bypass valve prevents evaporator freeze up while minimizing heavy inrush currents on large BTU/H units.
Built in condensate evaporator.
Continuous air circulation from high capacity fans.
EMI/RFI suppression meets CE.
Self-diagnostics on startup.
Fault indication via LED light.
Provision for door contact allowing power down when enclosure door is opened.

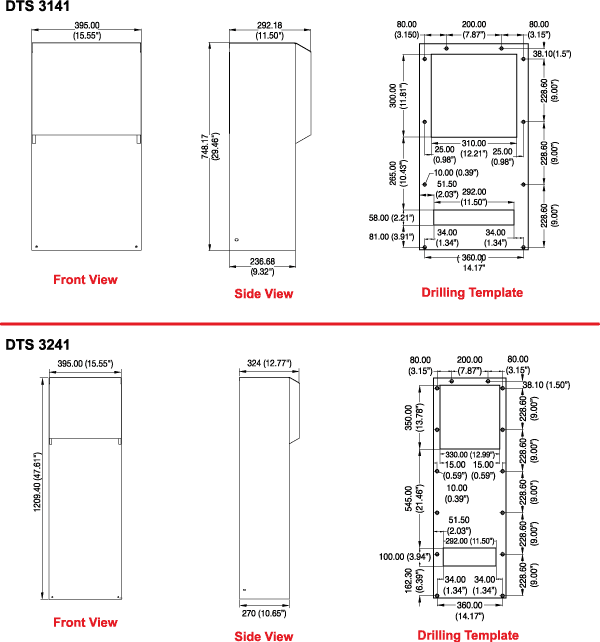

Gasket, mounting kit and template for enclosure cutout and drilling are included.
Condensate drain hose and clamp provided.
Q Mount allows unit to hang in place for easy installation.

Accessories

Technical Data

Refrigeration Data	DTS3141A115LG DTS3141A230LG	DTS3241A115LG DTS3241A230LG
Rated Capacity	4,000 BTU/H (1,172 Watts)	7,500 BTU/H (2,197 Watts)
Type of Refrigerant	R134a	R134a
Regrigerant Charge	500 g	500 g
Adjustable Thermostat	Factory setting +95°F (+35°C)	Factory setting +95°F (+35°C)
Max. Ambient Air Temp.	+125°F (+52°C)	+125°F (+52°C)
Min. Ambient Air Temp.	+46°F (+8°C)	+46°F (+8°C)
Air Capacity (unrestricted)	Internal Circulation 350 CFM External Circulation 350 CFM	Internal Circulation 580 CFM External Circulation 580 CFM
Condensation Discharge	Condensate Evaporator	Condensate Evaporator
Filter Mat	Filterless	Filterless
Db Noise Level	<70 dB(A)	<73 dB(A)
Unit Weight	80 lbs (36 kg)	101 lbs (46 kg)
Exterior Case	Galvanized sheet metal	Galvanized sheet metal
Finish	RAL7035 Light Grey powder Finish	RAL7035 Light Grey powder Finish
NEMA Rating	Enclosures IP 54/NEMA 12	Enclosures IP 54/NEMA 12
