Hammond Mfg. - Type 12 8000 & 12000 BTU Side Mt A/C (DTS Series)

Side Mounting DTS Series
8000 & 12,000 BTU/H

Description

Designed for side mounting on any enclosure surface where high capacity system cooling is required.
Closed loop cooling ensures clean enclosure air is recirculated without ever mixing with contaminated ambient air.
Optimum air circulation with maximum clearance distance between warm inlet and cold outlet for reduced hot spot locations.

Standards

Features

R134a refrigerant.
Thermostat control.
Hot gas bypass valve prevents evaporator freeze up while minimizing heavy inrush currents on large BTU/H units.
Built in condensate evaporator.
Continuous air circulation from high capacity fans.
EMI/RFI suppression meets CE.
Self-diagnostics on startup.
Fault indication via LED light.
Provision for door contact allowing power down when enclosure door is opened.

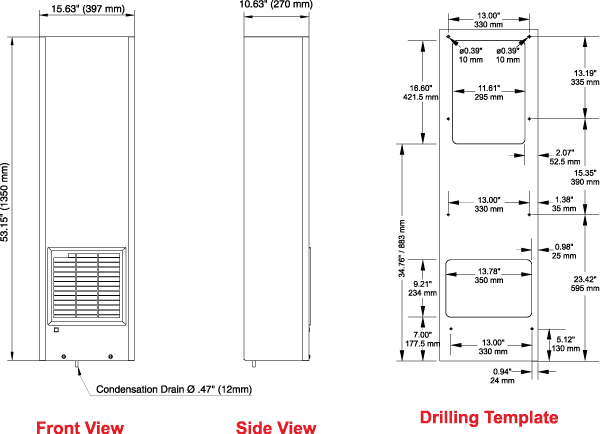

Gasket, mounting kit and template for enclosure cutout and drilling are included.
Washable filtermat protected within an easily removable grill.
Condensate drain hose and clamp provided.
Q Mount allows unit to hang in place for easy installation.
Versatile design maintains foot print for larger capacity units if required.

Accessories

Technical Data

Refrigeration Data	DTS8000A115LG DTS8000A230LG	DTS12000A115LG DTS12000A230LG
Rated Capacity	8000 BTU/H (2340 Watts)	12,000 BTU/H (3500 Watts)
Type of Refrigerant	R134a	R134a
Regrigerant Charge	750 g	850 g
Adjustable Thermostat	Factory setting +95°F (+35°C)	Factory setting +95°F (+35°C)
Max. Ambient Air Temp.	+125°F (+52°C)	+125°F (+52°C)
Min. Ambient Air Temp.	+46°F (+8°C)	+46°F (+8°C)
Air Capacity (unrestricted)	Internal Circulation 450 CFM External Circulation 589 CFM	Internal Circulation 530 CFM External Circulation 589 CFM
Condensation Discharge	Condensate Evaporator	Condensate Evaporator
Filter Mat	150 g/m²	150 g/m²
Db Noise Level	<69 dB(A)	<69 dB(A)
Unit Weight	160 lbs (72 kg)	165 lbs (75 kg)
Exterior Case	Galvanized sheet metal	Galvanized sheet metal
Finish	RAL7035 Light Grey powder Finish	RAL7035 Light Grey powder Finish
NEMA Rating	Enclosures IP 54/NEMA 12	Enclosures IP 54/NEMA 12
