Hammond Mfg. - 304SS 2500 BTU Side Mt A/C (DTS Series)

Side Mounting DTS - NEMA 3R, 4, 4X
2500 BTU/H - Stainless Steel

Description

Compact design for side mounting on any enclosure surface where spot cooling or low capacity cooling is required.
Closed loop cooling ensures clean enclosure air is recirculated without ever mixing with contaminated ambient air.
Ideal for outdoor or very wet conditions.

Standards

Features

Stainless steel body.
R134a refrigerant.
Thermostat control.
Line cord with plug (115 V).
Expansion valve permits increased efficiency through improved evaporator heat transfer and less frequent compressor operation.
Continuous air circulation from high capacity fans.
EMI/RFI suppression meets CE standard.

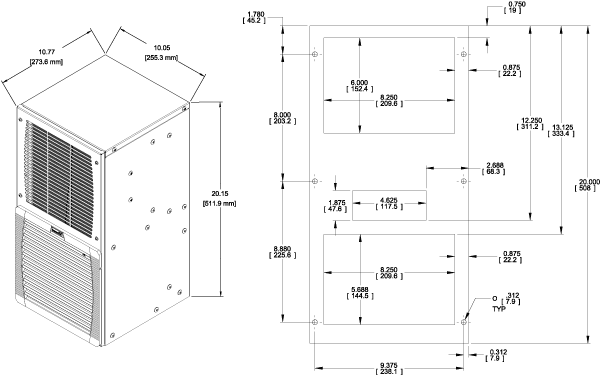

Gasket, mounting kit, and template for cutout and drilling are included.
Direct condensate discharge, drain hose and clamp.
Q Mount allows unit to hang in place for easy installation.

Accessories

Technical Data

Refrigeration Data
Rated Capacity	2500 BTU/H (732 Watts)
Type of Refrigerant	R134a
Regrigerant Charge	400 g
Adjustable Thermostat	Factory setting +95°F (+35°C)
Max. Ambient Air Temp.	+131°F (+55°C)
Min. Ambient Air Temp.	+46°F (+8°C)
Air Capacity (unrestricted)	Internal Circulation 191 CFM External Circulation 88 CFM
Condensation Discharge	Condensate Drain
Filter Mat	Filterless
Db Noise Level	<64 dB (A)
Unit Weight	55 lbs (25 kg)
Exterior Case	304 Stainless Steel
Finish	Polish #3
NEMA Rating	3R, 4, 4X
