Side Mounting DTS Series - NEMA 3R, 4
4000 & 7500 BTU/H
<< Product Information << Climate Control <<

Download PDF


Description
  • Designed for side mounting on any enclosure surface where high capacity system cooling is required.
  • Closed loop cooling ensures clean enclosure air is recirculated without ever mixing with contaminated ambient air.
  • Optimum air circulation with maximum clearance distance between warm inlet and cold outlet for reduced hot spot locations.

Standards
  • UL, cUL, CE
  • Complies with
    • NEMA 3R, 4

Features
  • R134a refrigerant.
  • Thermostat control accessible from inside enclosure.
  • Expansion valve prevents evaporator freeze up while minimizing heavy inrush currents on large BTU/H units.
  • Built in condensate evaporator.
  • Continuous air circulation from high capacity fans.
  • EMI/RFI suppression meets CE.
  • Self-diagnostics on startup.
  • Fault indication via LED light.
  • Provision for door contact allowing power down when enclosure door is opened.

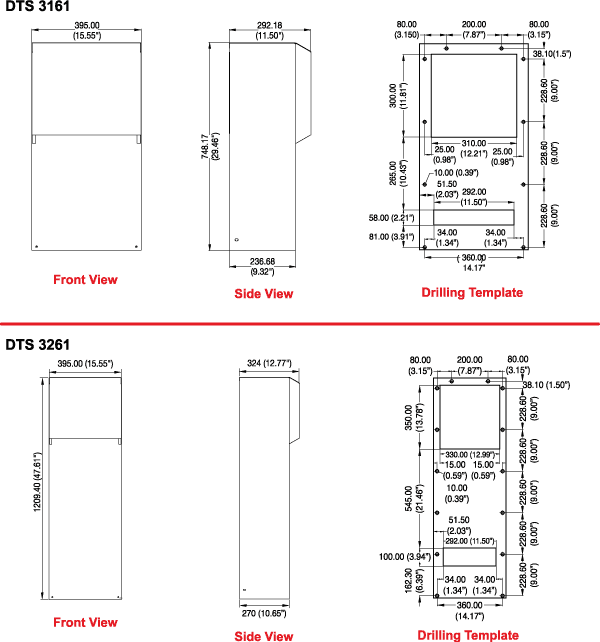

  • Gasket, mounting kit and template for enclosure cutout and drilling are included.
  • Condensate drain hose and clamp provided.
  • Q Mount allows unit to hang in place for easy installation.
  • Nema 3R/4 exterior galvanized sheet steel with powdercoat finish.

Accessories
Back to Top
Part No.
 Ship Wt. lbs
DTS3161A115N3LG
 104
DTS3161A230N3LG
 104
DTS3261A115N3LG
 129
DTS3261A230N3LG
 129






Technical Data
Electrical Data DTS3161A115N3LG DTS3161A230N3LG DTS3261A115N3LG DTS3261A230N3LG
Rated Voltage
115 V 60 Hz
230 V 50/60 Hz
115 V 60 Hz
230 V 50/60 Hz
Range of Operation
103-127 V
198-252 V
103-127 V
198-252 V
Power Consumption
950 W
860 W
1800 W
1800 W
Running Amps
7.2 A
4 A
14.6 A
6.3 A
Starting Current
17.1 A
9.3 A
26.8 A
16.5 A
Line Cord
Terminal Block
Terminal Block
Terminal Block
Terminal Block

Refrigeration Data
DTS3161A115N3LG
DTS3161A230N3LG
DTS3261A115N3LG
DTS3261A230N3LG
Rated Capacity
4,000 BTU/H (1,172 Watts)
7,500 BTU/H (2,197 Watts)
Type of Refrigerant
R134a
R134a
Regrigerant Charge
500 g
500 g
Adjustable Thermostat
Factory setting +95°F (+35°C)
Factory setting +95°F (+35°C)
Max. Ambient Air Temp.
+125°F (+52°C)
+125°F (+52°C)
Min. Ambient Air Temp.
+46°F (+8°C)
+46°F (+8°C)
Air Capacity (unrestricted)
Internal Circulation 350 CFM
External Circulation 350 CFM
Internal Circulation 580 CFM
External Circulation 580 CFM
Condensation Discharge
Condensate Evaporator
Condensate Evaporator
Filter Mat
150 g/m²
150 g/m²
Db Noise Level
<70 dB(A)
<73 dB(A)
Unit Weight
84 lbs (36 kg)
120 lbs (46 kg)
Exterior Case
Galvanized Steel Powdercoat finish
Galvanized Steel Powdercoat finish
Finish
RAL7035 Light Grey powder Finish
RAL7035 Light Grey powder Finish
NEMA Rating
Enclosures IP 56/NEMA 3R/4
Enclosures IP 56/NEMA 3R/4
