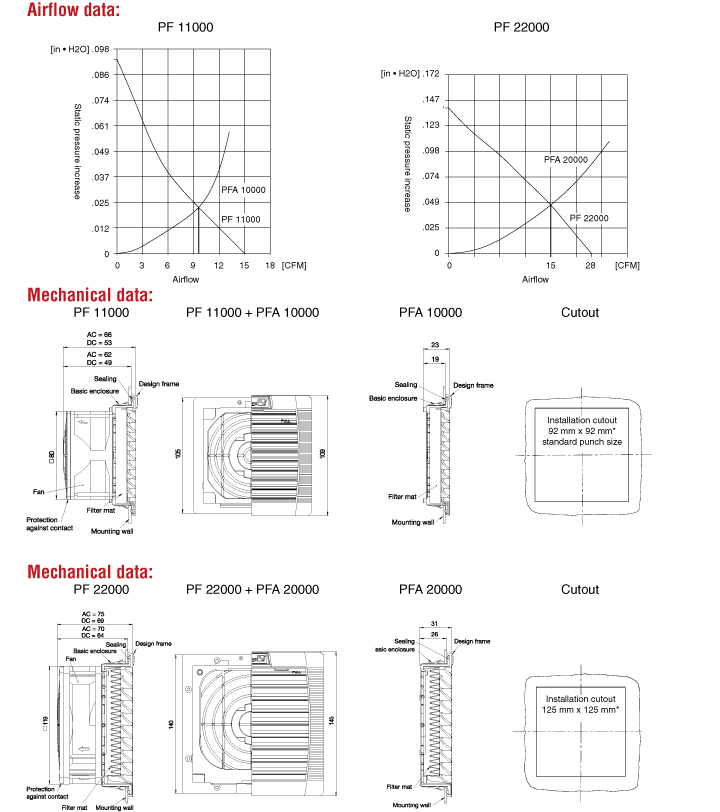

Airflow data |
PF 11000 |
PF 22000 |
PFA 1-20000 |
Filter material |
Type 12 filter mat |
Type 12 filter mat |
Type 12 filter mat |
Unimpeded airflow |
17 CFM |
38 CFM |
— |
Capacity free-flow |
10 W/K |
21 W/K |
-— |
Airflow in combination |
11 CFM |
28 CFM |
— |
(Filterfan + Exhaust Filter) |
(PF 11000 + PFA 10000) |
(PF 22000 + PFA 20000) |
— |
Capacity in combination |
6 W/K |
15 W/K |
— |
(Filterfan + Exhaust Filter) |
(PF 11000 + PFA 10000) |
(PF 22000 + PFA 20000) |
— |
Max. static pressure (Airflow = 0 m3/h) |
38 Pa |
57 Pa |
— |
Filtration efficiency |
88% |
91% |
88/91% |
Filter material grade |
G 3 (DIN EN 779) |
G 4 (DIN EN 779) |
G3/ G4 (DIN EN 779) |
Duty cycle |
100% |
100% |
— |
Technical data |
PF 11000
AC |
PF 11000
DC |
PF 22000
AC |
PF 22000
DC |
PFA 10000
PFA 20000 |
Outside dimensions in mm |
109 x 109 x 62 |
109 x 109 x 49 |
145 x 145 x 70 |
145 x 145 x 64 |
109 x 109 x 26/ |
(height x width x installation depth) |
|
|
|
|
145 x 145 x 26 |
Bearing type |
sleeve bearings |
ball bearings |
sleeve bearings |
ball bearings |
- |
Fitting position |
vertical |
any |
vertical |
any |
- |
Construction |
housing and guard of sprayed thermoplastic, self-extinguishing, UL 94 VO |
Weight |
0.55 kg |
0.16 kg |
0.7 kg |
0.44 kg |
0.06 kg / 0.12 kg |
Safety protection |
in accordance with DIN 31 001- |
Color |
RAL 7035, Light Grey |
Connection |
2 wires, 310 mm long |
terminal strip |
|
System of protection |
NEMA Type 12, IP 55 (EN 60 529), when installed as specified |
