65 CFM Filterfans PF GEN4 Series

Type 12

Features

  • Maintains a UL Tested NEMA Type 12 seal against enclosure
  • UL Recognized to UL 508A, category NITW2/8, UL File #E175229
  • Patented “Click & Fit” design provides a hardware-free installation
  • Plastic made from strong, heat resistant (ABS-FR), UL 94 V0 fire approved material
  • Fan Motor is CSA Approved

Accessories

Gallery Image

Part No. Part No Voltage Power Exhaust Filter
RAL7035 RAL9011 RAL7035 RAL9011
Light Gray Black Light Gray Black
PF32000T12LG PF32000T12BK 115V AC 20W PFA30000LG PFA30000BK
PF32000T12LG230 PF32000T12BK230 230V AC 18W PFA30000LG PFA30000BK
PF32000T12LG24 PF32000T12BK24 24V DC 5W PFA30000LG PFA30000BK

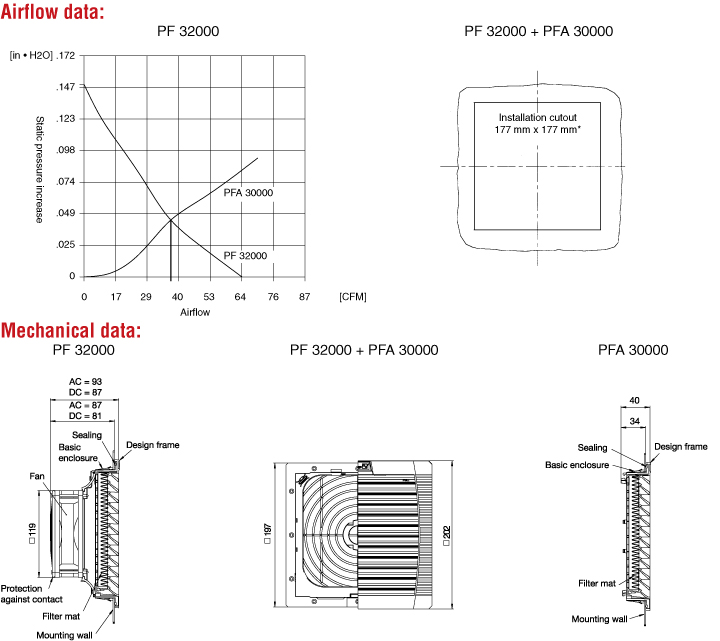

Airflow data PF 32000 PFA 30000
Filter material Type 12 filter mat Type 12 filter mat
Unimpeded airflow 65 CFM -
Capacity free-flow 37 W/K -
Airflow in combination 38 CFM -
(Filterfan + Exhaust Filter) (PF 32000 + PFA 30000) -
Capacity in combination 21 W/K -
(Filterfan + Exhaust Filter) (PF 32000 + PFA 30000) -
Max. static pressure (Airflow = 0 m3/h) 61 Pa -
Filtration efficiency 0.91 -
Filter material grade G 4 (DIN EN 779) G 4 (DIN EN 779)
Duty cycle 1 -
Technical data PF 32000 PF 32000 PFA 30000
AC DC
Outside dimensions in mm 202 x 202 x 87 202 x 202 x 81 202 x 202 x 34
(height x width x installation depth)
Bearing type sleeve bearings ball bearings -
Fitting position vertical any any
Construction housing and guard of sprayed thermoplastic, self-extinguishing, UL 94 VO
Weight 0.87 kg 0.61 kg 0.26 kg
Safety protection in accordance with DIN 31 001 -
Color LG RAL 7035, Light Grey
Color BK RAL9011 Black
Connections terminal strip 2 wires, 310mm long -
Noise Level (EN ISO 3741) 40 dB (A)
Supplementary data PF 32000 AC PF 32000 DC PFA 30000
Operating temperature – 15 °C (- 5 °F) to / bis + 55 °C (+ 131 °F)
Storage temperature – 20 °C (- 4 °F) to / bis + 70 °C (+ 158 °F)
Max. relative humidity 0.9
System of protection NEMA Type 12, IP 55 (EN 60 529), when installed as specified
Basic Accessories parts kit filter mat, user manual radiant heater, fan heater, thermostat, hygrostat
Approvals UL Recognized
* Tolerance installation cutout 177 + 1/-0 thickness of material to 2 mm
178 + 1/-0 thickness of material > 2 mm < 3 mm
