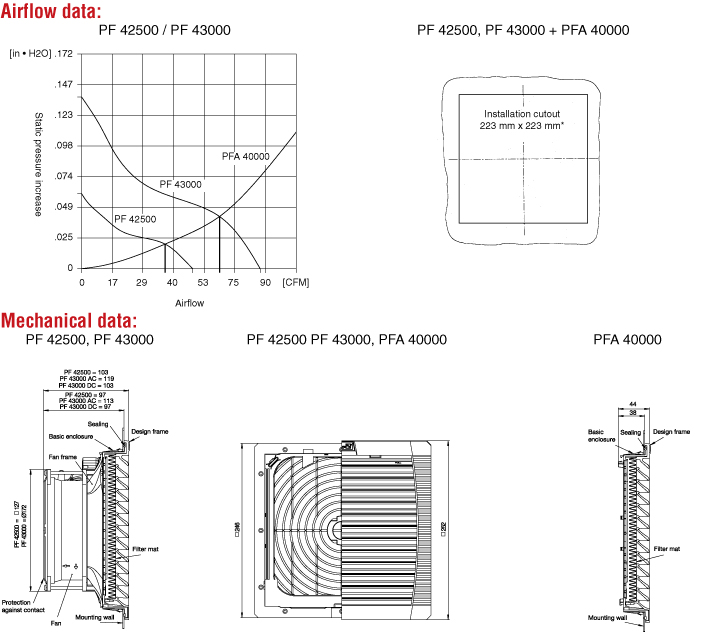

Airflow data |
PF 42500 |
PF 43000 |
PFA 40000 |
Filter material |
NEMA Type 12 Filtermat |
NEMA Type 12 Filtermat |
NEMA Type 12 Filtermat |
Unimpeded airflow |
94 CFM |
169 CFM |
— |
Capacity free-flow |
53 W/K |
I88 W/K |
— |
Airflow in combination |
67 CFM |
142 CFM |
— |
(Filterfan + Exhaust Filter) |
(PF 42500 + PFA 40000) |
(PF 43000 + PFA 40000) |
|
Capacity in combination |
38 W/K |
69 W/K |
— |
(Filterfan + Exhaust Filter) |
(PF 43000 + PFA 40000) |
(PF 43000 + PFA 40000) |
|
Max. static pressure (Airflow = 0 m3/h) |
49 Pa |
112 Pa |
— |
Filtration efficiency |
91% |
91% |
91% |
Filter material grade |
G 4 (DIN EN 779) |
G 4 (DIN EN 779) |
G 4 (DIN EN 779) |
Duty cycle |
100% |
100% |
— |
Technical data |
PF 42500 |
PF 43000 |
PFA 40000 |
|
AC/DC |
AC/DC |
|
Outside dimensions in mm |
252 x 252 x 97 |
252 x 252 x 113 |
252 x 252 x 38 |
(height x width x installation depth) |
|
|
|
Bearing type / Lagerart |
ball bearings |
ball bearings |
— |
Fitting position / Einbaulage |
any, horizontal airflow preferred |
any |
Construction |
housing and guard of sprayed thermoplastic, self-extinguishing, UL 94 VO |
Weight |
1.18 kg |
1.67 kg |
0.46 kg |
Safety protection |
in accordance with DIN 31 001 |
— |
Color |
|
RAL 7035, Light Grey |
|
Connections / Anschlussart |
cage clamp |
cage clamp |
— |
Supplementary data |
PF 42500 |
PF 43000 |
PFA 40000 |
Operating temperature |
– 15 °C (- 5 °F) to / bis + 55 °C (+ 131 °F) |
Storage temperature |
– 20 °C (- 4 °F) to / bis + 70 °C (+ 158 °F) |
Max. relative humidity |
90% |
System of protection |
NEMA Type 12, IP 55 (EN 60 529), when installed as specified |
Basic Accessories |
parts kit filter mat, user manual radiant heater, fan heater, thermostat, hygrostat |
Approvals |
UL Recognized |
* Tolerance installation cutout |
177 + 1/-0 thickness of material to 2 mm |
|
178 + 1/-0 thickness of material > 2 mm < 3 mm |
