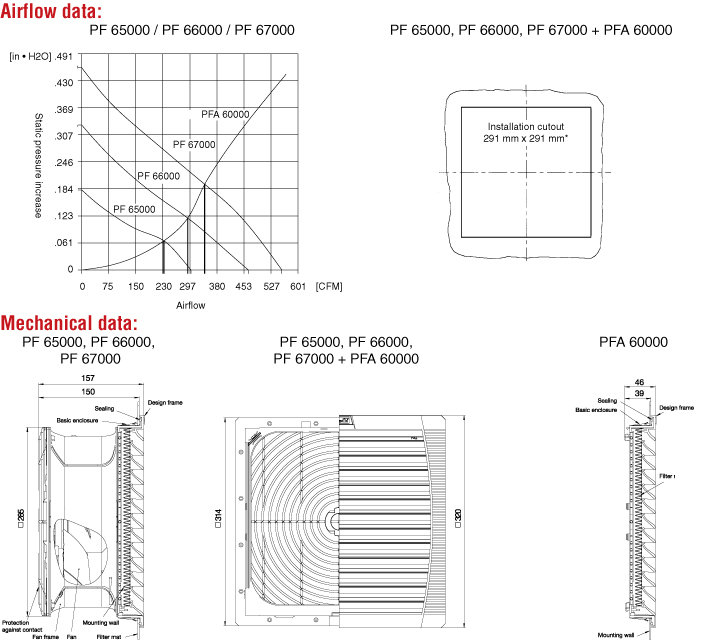

Airflow data |
PF 65000 |
PF 66000 |
PF 67000 |
PFA 60000 |
Filter material |
Type 12 Filtermat |
Type 12 Filtermat |
Type 12 Filtermat |
Type 12 Filtermat |
Unimpeded airflow |
297 CFM |
462 CFM |
560 CFM |
|
Capacity free-flow |
IP 54: 160 W/K / 160 W/K |
IP 54: 213 W/K / 218 W/K |
IP 54: 282 W/K / 292 W/K |
— |
|
IP 55: 168 W/K / 168 W/K |
IP 55: 257 W/K / 262 W/K |
IP 55: 308 W/K / 317 W/K |
— |
Airflow in combination |
230 CFM |
295 CFM |
368 CFM |
— |
(Filterfan + Exhaust Filter) |
(PF 65000 + PFA 60000) |
(PF 66000 + PFA 60000) |
(PF 67000 + PFA 60000) |
— |
Capacity in combination |
127 W/K |
167 W/K |
208 W/K |
— |
(Filterfan + Exhaust Filter) |
(PF 65000 + PFA 60000) |
(PF 66000 + PFA 60000) |
(PF 67000 + PFA 60000) |
— |
Max. static pressure (Airflow = 0) |
74 Pa |
134 Pa |
187 Pa |
— |
Filtration efficiency |
91% |
91% |
91% |
91% |
Filter material grade |
G 4 (DIN EN 779) |
G 4 (DIN EN 779) |
G 4 (DIN EN 779) |
G 4 (DIN EN 779) |
Duty cycle |
100% |
100% |
100% |
— |
Technical data |
PF 65000 |
PF 66000 |
PF 67000 |
PFA 60000 |
Outside dimensions in mm |
320 x 320 x 150 |
320 x 320 x 150 |
320 x 320 x 150 |
320 x 320 x 39 |
(height x width x installation depth) |
|
|
|
|
Bearing type |
ball bearings |
ball bearings |
ball bearings |
— |
Fitting position |
|
any, horizontal airflow preferred |
any |
— |
Construction |
housing and guard of sprayed thermoplastic, self-extinguishing, UL 94 VO |
Weight |
3.2 kg |
3.2 kg |
3.7 kg |
0.7 kg |
Safety protection |
in accordance with DIN 31 001 |
— |
Color |
RAL 7035, Light Grey |
— |
Connections |
cage clamp |
cage clamp |
cage clamp |
— |
Supplementary data |
PF 65000 |
PF 66000 |
PF 67000 |
Operating temperature |
– 15 °C (- 5 °F) to / bis + 55 °C (+ 131 °F) |
Storage temperature |
– 20 °C (- 4 °F) to / bis + 70 °C (+ 158 °F) |
Max. relative humidity |
90% |
System of protection |
NEMA Type 12, IP 55 (EN 60 529), when installed as specified |
Basic Accessories |
parts kit filter mat, user manual radiant heater, fan heater, thermostat, hygrostat |
Approvals |
UL Recognized |
* Tolerance installation cutout |
177 + 1/-0 thickness of material to 2 mm |
|
178 + 1/-0 thickness of material > 2 mm < 3 mm |
