Airflow data |
PTF 60500 |
PTF 60700 |
PTF 61000 |
PTFA 60000 |
Filter material |
NEMA 12
Filtermat |
Unimpeded airflow |
226 CFM |
356 CFM |
485 CFM |
|
Capacity free-flow |
113 W/K |
177 W/K |
242 W/K |
- |
Airflow in combination |
149 CFM |
227 CFM |
304 CFM |
- |
(Filterfan + Exhaust Filter) |
(PTF 60500 + PFA 60000) |
(PTF 60700 + PFA 60000) |
(PTF 61000 + PFA 60000) |
|
Capacity in combination |
74 W/K |
113 W/K |
152 W/K |
- |
(Filterfan + Exhaust Filter) |
(PTF 60500 + PFA 60000) |
(PTF 60700 + PFA 60000) |
(PTF 61000 + PFA 60000) |
|
Max. static pressure (Airflow = 0) |
71 Pa |
88 Pa |
158 Pa |
- |
Filtration efficiency |
81% |
81% |
81% |
|
Filter material grade |
G 3 (DIN EN 779) |
G 3 (DIN EN 779) |
G 3 (DIN EN 779) |
|
Duty cycle |
100% |
100% |
100% |
- |
Technical data |
PTF 60500 |
PTF 60700 |
PTF 61000 |
PTFA 60000 |
Outside dimensions in mm |
125 x 430 x 430 x 50 |
140 x 470 x 470 x 50 |
140 x 470 x 470 x 50 |
- |
(height x width x installation depth) |
|
|
|
|
Bearing type |
ball bearings |
ball bearings |
ball bearings |
- |
Fitting position |
horizontal |
horizontal |
horizontal |
any |
Construction |
metal chassis cover powder coaded, snapin plastic housing |
Weight |
5.5 kg |
5.8 kg |
6.0 kg |
3.1 kg |
Safety protection |
in accordance with DIN 31 001 |
- |
Color |
RAL 7035, Light Grey |
Connections |
terminal strip |
terminal strip |
terminal strip |
- |

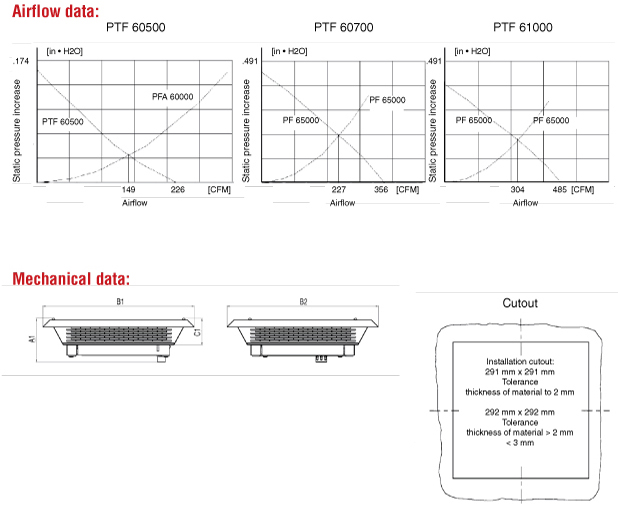

Airflow data: |
PTFA 60000 |
Filter material |
P 300 |
Filtration efficiency |
81% |
Filter material grade (DIN EN 779) |
G 3 |
Technical data: |
PFTA 60000 |
Outside dimensions in mm |
|
(Height x Width x Depth x Installation depth) |
110 x 430 x 430 x 35 |
Construction |
metal chassis, cover powder-coated; snap-in body of sprayed thermoplastic
(ABS-FR) self-extinguishing, UL 94 VO |
Weight |
3.1 kg |
Safety protection |
in accordance with DIN 31 001 |
Color |
RAL 7035, RAL 7032, other colors on request |
Supplementary data: |
PFTA 60000 |
Operating temperature |
-10 C (+14 F) to +55 C (+131 F) |
Storage temperature |
-20 C (-4 F) to +70 C (+158 F) |
Max. relative humidity |
90% |
System of protection |
IP 33, IP 54 (EN 60 529), when installed as specified |
Accessories |
radiant heater, fan heater, thermostat, see Thermal Management |
Tolerance installation cutout |
291 thickness of material to 2 mm, 292 thickness of material > 2 mm < 3mm |
Approvals |
pending |
