Filterfan Rainhoods Nema 3R
<< Product Information << Climate Control <<


Enclosure not included



Application
  • Type 3R / Outdoor Rainhoods
  • Protection against rain and snow or large airborne debris
  • Sold individually
Features
  • Easy installation
  • Covers many external mounted Fans & Grills
  • Fits PF2000/PF22000 thru PF5/6/7000 series Filterfans
  • Tamperproof hardware and sealing gasket provided
Standards
  • UL 508A type 3R
  • CSA C22.2 #94-M1
Finish
  • Cover offered in ANSI61 gray or RAL7035 light gray powder coated finish on mild steel
  • Also offered in stainless steel 304 #4 finish
  • Base in Galvanized sheet steel
Accessories

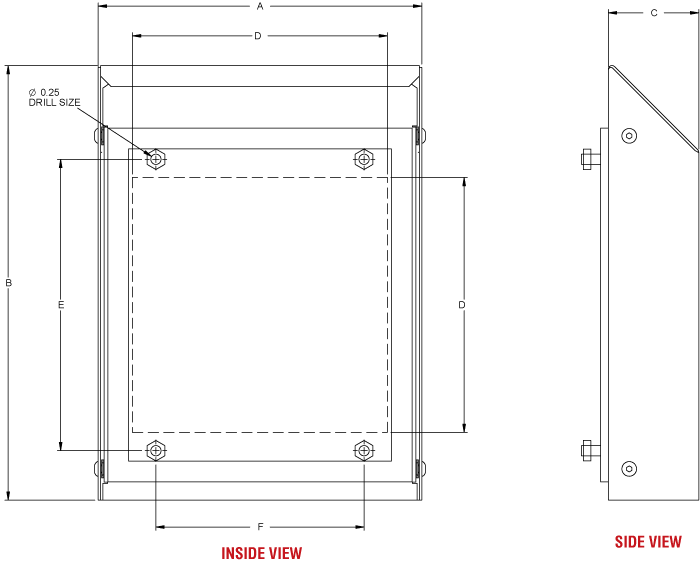

Overall Dimensions Cut-out Bolt-Pattern
Series A B C D E F
RH20000
7.77
10.44
2.17
6.12
7.00
5.00
RH40000
11.71
14.57
3.35
10.12
11.00
9.00
RH60000
14.66
15.88
4.33
13.00
13.88
12.00


Part Number
Use with
 Finish
RH20000GY
PF2000/PF22000  Series
 ANSI 61 Gray
RH20000LG
PF2000/PF22000  Series
 RAL7035
RH20000SS
PF2000/PF22000  Series
 Stainless Steel
RH40000GY
PF25, 30, 32, 43000 Series
 ANSI 61 Gray
RH40000LG
PF25, 30, 32, 43000 Series
 RAL7035
RH40000SS
PF25, 30, 32, 43000 Series
 Stainless Steel
RH60000GY
PF5,6,7000, 65, 67000 Series
 ANSI 61 Gray
RH60000LG
PF5,6,7000, 65, 67000 Series
 RAL7035
RH60000SS
PF5,6,7000, 65, 67000 Series
 Stainless Steel
Grill/Solid Cover Kit

Features

  • Can be installed in bottom opening of rain hood
  • Grill allows ventilation while preventing unwanted entry of large contaminants
  • Solid cover allows sealing of opening when fan/filter not in use

Part Number
Use With
 Finish
RHA20000G
RH20000GY,LG,SS
 Galvanized Steel
RHA40000G
RH40000GY, LG, SS
 Galvanized Steel
RHA60000G
RH60000GY,LG, SS
 Galvanized Steel
Package includes 1 grill and 1 solid plug along with mounting hardware.
