Stack Lights
<< Product Information << General Accessories <<
Quick Links:


Download PDF
Features
  • Modular design for all indoor and outdoor applications.
  • Provides warning signals and diplays machine status.
  • High level of protection against electric shock with IP 54 rating.
  • Separate components for easy ordering to suit every installation application.

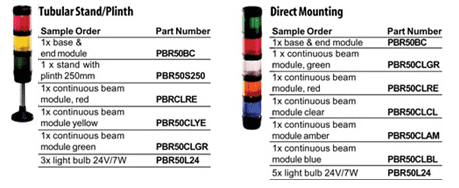

Product Numbers

Base and Tubes
Part No. Description L1 L2 Ship
Wt. lbs
PBR50BC
Base & End Module
 - - 5
PBR50S100
Tubular Stand/Plinth
 88mm (3.46in) - 5
PBR50S250
Tubular Stand/Plinth
238mm (9.37in) - 5
PBR50T100
Threaded tubular stand/bracket
 - 78mm (3.07in) 5
PBR50T250
Threaded tubular stand/bracket
 - 228mm (8.98in) 5
PBR50T400
Threaded tubular stand/bracket
 - 378mm 14.13in) 5

Modules
Part No. Description Ship
Wt. lbs
PBR50CLCL
Continuous beam module, transparent
 1
PBR50CLYE
Continuous beam module, yellow
 1
PBR50CLAM
Continuous beam module, amber
 1
PBR50CLRE
Continuous beam module, red
 1
PBR50CLGR
Continuousbeam module, green
 1
PBR50CLBL
Continuous beam module, blue
 1
PBR50BLYE24V
Blinking module, yellow
 1
PBR50BLRE24V
Blinking module, red
 1
PBR50BLGR24V
Blinking module, green
 1

Gaskets, Bulbs and Accessories
Part No. Description Ship Wt. lbs
PBR50MG
Replacement gasket for light module & base module
 1
PBR50TG
Replacement gasket for mounting tube with plinth
 1
PBR50BG
Replacement gasket for direct mounting IP 65
 1
PBR50LED24
LED light bulb 24V/BA 15d
 1
PBR50LED115
LED light bulb 115V/BA 15d
 1
PBR50L24
Light bulb 24V DC/BA 15d 7W
 1
PBR50L115
Light bulb 115V CD/BA 15d 7W
 1
PBR50LS
Bulb Remover/Installer
 1
PBR50EXT
StacklightExtension
 2
Back to Top

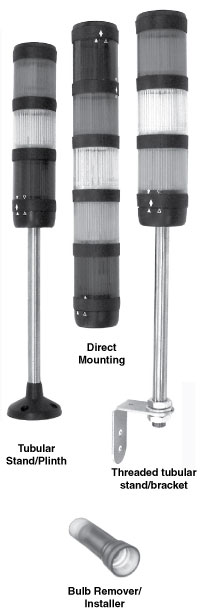

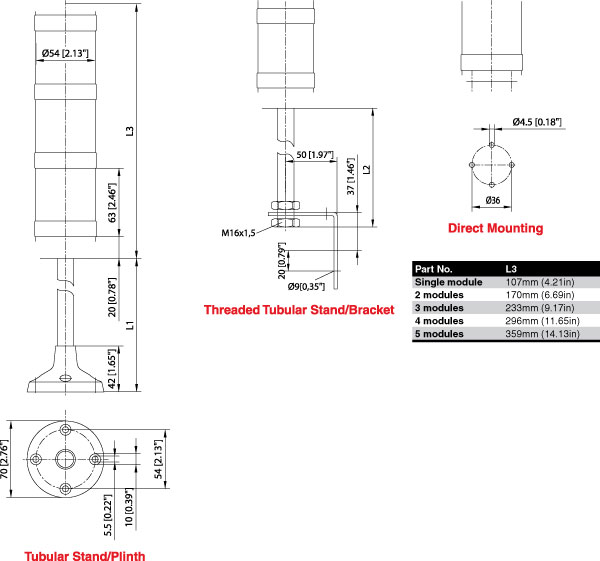

Product Drawing
Back to Top

Modular and Other Data
Modular Data Continuous Beam Blinking Light
Modular Colors
Yellow, Red, Green, Amber, Blue, Transparent
Yellow, Red, Green
Modular Stages
Max. 5
Max. 5 )
Angle of Beam
360 degrees
360 degrees
Percentage Duty Cycle
100%
100%
Rated Power, max.
7W
7W
Rated Power with 5 stages
5W
5W
Lamp Socket
BA 15d
BA 15d
Service life of light bulb/tube
approx. 1500h
approx. 1500h
AC Voltage Rating
230 V, 50/60 Hz, -15% to + 10%
230 V, 50/60 Hz, -15% to +10%
Current Capacity Rating
0.035 A
0.08 A
DC Voltage Rating
24 V, -15% to +20%
24 V, -15% to +20%
Current Capacity Rating
0.3 A
0.25 A

Other Data
Protection Rating
IP 54
Operating Temperature
-25 o C to +45 o C
Relative Humidity
90%
Installation
  • Vertical or Horizontal
  • Mounting Stand, tube mounting or direct mounting
Accessories
  • Gasket for light module + basic module IP 65
  • Gasket for tubular stand on plinth IP 65
  • Gasket for direct mounting IP 65
  • Wall bracket with hood
Weight of Plinth
  • Stand mounting (w/o module): approx. 220g
  • Tube mounting (w/o module): 200g
  • Direct mounting (w/o module): 180g
Materials
Modular: polycarbonate, Plinth: ABS, Tube: stainless steel
Back to Top
