Steel and Stainless Steel Window Kits
<< Product Information << General Accessories <<

Download PDF



Features
  • Designed to maintain environmental protection level of Type 4, 4X (for stainless steel) as noted
  • Window is 0.25" thick, UV resistant Polycarbonate.
  • Frame is heavy gauge steel, or 304 stainless steel with integral weld studs and compression clips.
  • Oil resistant neoprene gasket ensures a watertight seal.
  • Finished in gray or natural brushed stainless steel.

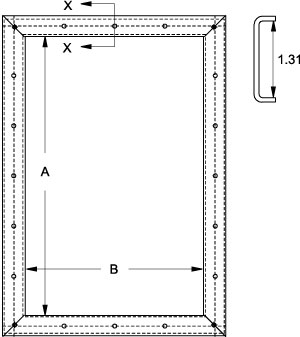

Part No. Material Window Dimensions Recommended
Cut-Out Size
A B
1481WN40503¹ Steel 5 3.0 6.69 4.69
1481WN40905¹ Steel 9 5.5 10.69 7.19
1481WN41303¹ Steel 13 3.0 14.69 4.69
1481WN41308¹ Steel 13 8.0 14.69 9.69
1481WN41705¹ Steel 17 5.5 18.69 7.19
1481WN41711¹ Steel 17 11.0 18.69 12.69
1481WN42315¹ Steel 23 15.0 24.69 16.69
1481WN42919¹ Steel 29 19.0 30.69 20.69
1481WN43523¹ Steel 35 23.0 36.69 24.69
1481WN4SS0503² Stainless Steel 5 3.0 6.69 4.69
1481WN4SS0905² Stainless Steel 9 5.5 10.69 7.19
1481WN4SS1308² Stainless Steel 13 8.0 14.69 9.69
1481WN4SS1711² Stainless Steel 17 11.0 18.69 12.69
1481WN4SS2315² Stainless Steel 23 15.0 24.69 16.69
1481WN4SS2919² Stainless Steel 29 19.0 30.69 20.69
¹ UL/CSA Type 12 and Type 4 ²UL/CSA Type 12, Type 4 and Type 4x
