| NEMA 4 Deep Hinged Window Kits |
| << Product Information << General Accessories << |
|
| Features |
|
- Extra deep kits are designed to provide protection and easy access to components and equipment installed inside an enclosure.
- Maintain environmental protection level of Type 4, 4X and 12 as noted
- Frame is 14 guage mild steel or 316L stainless steel.
- Quarter turn latch for easy access.
- 2.5 inches of extra usable depth
- Oil resistant neoprene gasket ensures a watertight seal.
- Can be either left or right hand hinged.
- Window is 0.25" thick, UV Resistant Polycarbonate.
- Conveniently sized to allow mounting on the door of any Hammond Wallmount Series enclosure, or in any other Hammond enclosure with a suitable mounting surface.
- Mounting hardware and template are included.
|
| |
|
|

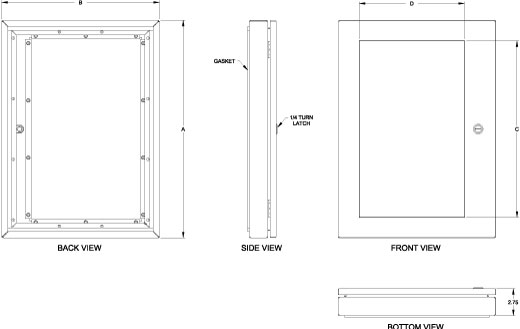

| Part No. |
Material |
Overall Dimensions |
Viewing Area |
Latch Qty |
Recommended
Cut-Out Size |
| A |
B |
C |
D |
1481WDH1418¹ |
Steel |
12.19 |
14.56 |
8.00 |
9.17 |
1 |
9.19 |
11.56 |
1481WDH1612¹ |
Steel |
14.19 |
8.14 |
10.00 |
2.75 |
1 |
11.19 |
5.14 |
1481WDH2016¹ |
Steel |
18.19 |
12.14 |
14.00 |
6.75 |
1 |
15.19 |
9.14 |
1481WDH2416¹ |
Steel |
22.19 |
12.14 |
18.00 |
6.75 |
1 |
19.19 |
9.14 |
1481WDH2420¹ |
Steel |
22.19 |
16.14 |
18.00 |
10.75 |
1 |
19.19 |
13.14 |
1481WDH2430¹ |
Steel |
22.19 |
26.14 |
18.00 |
20.75 |
1 |
19.19 |
23.14 |
1481WDH3024¹ |
Steel |
28.19 |
20.14 |
24.00 |
14.75 |
2 |
25.19 |
17.14 |
1481WDH3624¹ |
Steel |
34.19 |
20.14 |
30.00 |
14.75 |
2 |
31.19 |
17.14 |
1481WSSDH1418² |
Stainless Steel |
12.19 |
14.56 |
8.00 |
9.17 |
1 |
9.19 |
11.56 |
1481WSSDH1612² |
Stainless Steel |
14.19 |
8.14 |
10.00 |
2.75 |
1 |
11.19 |
5.14 |
1481WSSDH2016² |
Stainless Steel |
18.19 |
12.14 |
14.00 |
6.75 |
1 |
15.19 |
9.14 |
1481WSSDH2416² |
Stainless Steel |
22.19 |
12.14 |
18.00 |
6.75 |
1 |
19.19 |
9.14 |
1481WSSDH2420² |
Stainless Steel |
22.19 |
16.14 |
18.00 |
10.75 |
1 |
19.19 |
13.14 |
1481WSSDH2430² |
Stainless Steel |
22.19 |
26.14 |
18.00 |
20.75 |
1 |
19.19 |
23.14 |
1481WSSDH3024² |
Stainless Steel |
28.19 |
20.14 |
24.00 |
14.75 |
2 |
25.19 |
17.14 |
1481WSSDH3624² |
Stainless Steel |
34.19 |
20.14 |
30.00 |
14.75 |
2 |
31.19 |
17.14 |
| ¹ UL/CSA Type 12 and Type 4 |
²UL/CSA Type 12, Type 4 and Type 4x |
|
|
