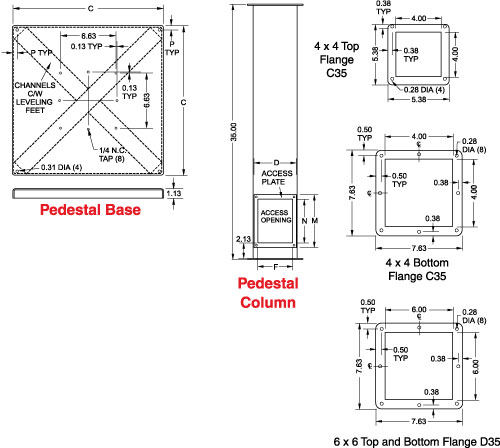

| Pedestal Column |
 |
| Pedestal Base |
| |
 |
|
| Features |
|
- Used for floor mounting for many types of enclosures, consolets or pushbutton boxes
- Provides wiring feature through the column.
- Meets NEMA Type 12 and 13 requirements.
- Finished in gray.
| Pedestal Column |
- Columns are formed from 14 gauge steel with 10 gauge flanges.
- Column access opening with gasketed cover.
- Columns include flange gaskets and a box connector.
|
| |
| Pedestal Base |
- Bases are formed from 10 gauge steel with additional reinforcing.
- Bases include levelling screws.
|
| |
| Part No. |
Description |
C |
D |
F |
M |
N |
P |
1495C35 |
Straight Column |
– |
3.75 |
2.75 |
7.25 |
6 |
– |
1495D35 |
Straight Column |
– |
5.75 |
4.75 |
7.25 |
6 |
– |
1495XK |
Pedestal Base |
18 |
– |
– |
– |
– |
0.5 |
1495XN |
Pedestal Base |
24 |
– |
– |
– |
– |
0.5 |
|
|
| |
|
|
