| Eclipse Inner Panel |
 |
- Larger than standard NEMA panel used in same sized enclosure.
- 12 gauge steel construction (see chart, below).
- Larger sizes have 2 or 4 formed flanges for added strength.
- Slotted corner design for easier mounting.
- Finished in white or unpainted galvanized.
|
Mild Steel
Part No. |
Galvanized
Part No. |
Size |
Gauge |
| D |
E |
| EP1212 |
EPG1212 |
10.2 |
10.2 |
12 |
| EP1224 |
EPG1224 |
10.2 |
22.2 |
12 |
| EP1612 |
EPG1612 |
14.2 |
10.2 |
12 |
| EP1616 |
EPG1616 |
14.2 |
14.2 |
12 |
| EP1620 |
EPG1620 |
14.2 |
18.2 |
12 |
| EP2012 |
EPG2012 |
18.2 |
10.2 |
12 |
| EP2016 |
EPG2016 |
18.2 |
14.2 |
12 |
| EP2020 |
EPG2020 |
18.2 |
18.2 |
12 |
| EP2024 |
EPG2024 |
18.2 |
22.2 |
12 |
| EP2412 |
EPG2412 |
22.2 |
10.2 |
12 |
| EP2416 |
EPG2416 |
22.2 |
14.2 |
12 |
| EP2420 |
EPG2420 |
22.2 |
18.2 |
12 |
| EP2424 |
EPG2424 |
22.2 |
22.2 |
12 |
| EP2430 |
EPG2430 |
22.2 |
28.2 |
12 |
| EP2442 |
EPG2442 |
22.2 |
40.2 |
12 |
| EP2448 |
EPG2448 |
22.2 |
46.2 |
12 |
| EP3012 |
EPG3012 |
28.2 |
10.2 |
12 |
| EP3016 |
EPG3016 |
28.2 |
14.2 |
12 |
| EP3020 |
EPG3020 |
28.2 |
18.2 |
12 |
| EP3024 |
EPG3024 |
28.2 |
22.2 |
12 |
|
Mild Steel
Part No. |
Galvanized
Part No. |
Size |
Gauge |
| D |
E |
| EP3030 |
EPG3030 |
28.2 |
28.2 |
12 |
| EP3036 |
EPG3036 |
28.2 |
34.2 |
12 |
| EP3042 |
EPG3042 |
28.2 |
40.2 |
12 |
| EP3048 |
EPG3048 |
28.2 |
46.2 |
12 |
| EP3060 |
EPG3060 |
28.2 |
58.2 |
12 |
| EP3624 |
EPG3624 |
34.2 |
22.2 |
12 |
| EP3630 |
EPG3630 |
34.2 |
28.2 |
12 |
| EP3636 |
EPG3636 |
34.2 |
34.2 |
12 |
| EP3642 |
EPG3642 |
34.2 |
40.2 |
12 |
| EP3648 |
EPG3648 |
34.2 |
46.2 |
12 |
| EP3660 |
EPG3660 |
34.2 |
58.2 |
12 |
| EP4224 |
EPG4224 |
40.2 |
22.2 |
12 |
| EP4230 |
EPG4230 |
40.2 |
28.2 |
12 |
| EP4236 |
EPG4236 |
40.2 |
34.2 |
12 |
| EP4824 |
EPG4824 |
46.2 |
22.2 |
12 |
| EP4830 |
EPG4830 |
46.2 |
28.2 |
12 |
| EP4836 |
EPG4836 |
46.2 |
34.2 |
12 |
| EP4848 |
EPG4848 |
46.2 |
46.2 |
12 |
| EP6036 |
EPG6036 |
58.2 |
34.2 |
12 |
| EP7230 |
EPG7230 |
70.2 |
28.2 |
12 |
| EP7236 |
EPG7236 |
70.2 |
34.2 |
12 |
|
 |
 |
|
| Eclipse Swing Panel |
 |
- Hinged panel allows access to internally mounted equipment.
- 12 gauge steel construction.
- Slotted quarter turn latches provide closure.
- Adding optional locking quarter turn latches (Part Number EQTRL) convert this to a dead front panel.
- Complete with 4-6" depth adjustment channels.
- Hardware kit maintains UL, CSA and NEMA ratings when field installed.
- Finished in white.
|
 |
| Part No. |
Fits Enclosure Size (A x B) |
| ESP1212 |
12 x 12 |
| ESP1612 |
16 x 12 |
| ESP1616 |
16 x 16 |
| ESP1620 |
16 x 20 |
| ESP2016 |
20 x 16 |
| ESP2020 |
20 x 20 |
| ESP2024 |
20 x 24 |
| ESP2416 |
24 x 16 |
| ESP2420 |
24 x 20 |
| ESP2424 |
24 x 24 |
|
| Part No. |
Fits Enclosure Size (A x B) |
| ESP3020 |
30 x 20 |
| ESP3024 |
30 x 24 |
| ESP3030 |
30 x 30 |
| ESP3624 |
36 x 24 |
| ESP3630 |
36 x 30 |
| ESP3636 |
36 x 36 |
| ESP4236 |
42 X 36 |
| ESP4824 |
48 X 24 |
| ESP4836 |
48 X 36 |
| ESP6036 |
60 X 36 |
|
|
|
|
| Eclipse Replacement Hinge Pins |
 |
- These are supplied with enclosure but offered here as replacements should originals be misplaced.
- Packaged in quantities of 5.
|
| Part No. |
Material |
| EPINSS |
Stainless Steel hinge pin |
|
|
|
|
|
| Eclipse Swing Frame |
|
- Provides 19" rack mounting with full EIA spacing (punched holes).
- Hinges allow easy equipment access.
- Slotted quarter turn latches provide closure.
- Adding optional locking quarter turn latches provides added security.
- Complete with 4-6" depth adjustment channels.
- Order package of 25 clip nuts separately
(Part No. 1421N25).
- Hardware kit maintains UL, CSA and NEMA ratings when field installed.
- Finished in black.
|
| |
| Part No. |
Fits Enclosure Size (AxB) |
Rack Spacing |
| Width |
Height (Units) |
|
24x24 |
19 |
11 |
|
30x24 |
19 |
14 |
|
36x24 |
19 |
17 |
|
|
|
|
| DIN Rail Mounting Kit |
 |
- Field installable.
- Mounts directly to panel collar studs
(panel not required).
- Accepts optional DIN rails, see below.
- DIN rails available separately.
- Zinc plated, yellow dichromate.
|
| |
| Part No. |
A |
B |
C |
<
| 2DMK12 |
10 |
1.25 |
7 |
<
| 2DMK16 |
14 |
0.75 |
11 |
<
| 2DMK20 |
18 |
0.88 |
14 |
<
| 2DMK24 |
22 |
1.00 |
17 |
<
| 2DMK30 |
28 |
0.88 |
22 |
|
|
|
|

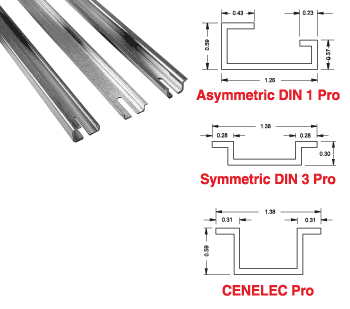

| DIN Rails |
 |
- Field installable.
- Includes a set of 3 plated rails.
- Available in 3 industry standard profiles -
DIN 1, DIN 3, and CENELEC.
- DIN rail mounting kit required for installation (see above).
- Rails have a 0.28 x 1.25 oblong slot on each end.
- Zinc plated.
|
| |
Asymmetric
DIN1 Profile
Part No. |
Symmetric DIN 3
Profile
Part No. |
Cenelec
Profile
Part No. |
Length |
| 2D1K12 |
2D2K12 |
2DCK12 |
9.25 |
| 2D1K16 |
2D2K16 |
2DCK16 |
13.25 |
| 2D1K20 |
2D2K20 |
2DCK20 |
17.25 |
| 2D1K24 |
2D2K24 |
2DCK24 |
21.25 |
| 2D1K30 |
2D2K30 |
2DCK30 |
27.25 |
|
|
|
|
| Quarter Turn Inserts and Keys |
 |
- Field installable inserts replace standard quarter turn slot.
- Available in 7mm square and triangle formats, as well as slotted.
- Square and triangle inserts provide extra security since standard screw drivers cannot open.
- Keys sold separately from inserts.
- Maintains NEMA, UL and CSA 12, 4 and 4X ratings.
|
| |
| Part No. |
Description |
| 2SQI7 |
7mm square insert, black |
| 2SQK7 |
7mm square key, fits 2SQI7 |
| 2TRI7 |
7mm triangle insert, black |
| 2TRK7 |
7mm triangle key, fits 2TRI7 |
| 2SLI |
Slotted insert, black |
|
|
|
|
| Replacement Quarter Turn Assemblies |
 |
- Field installable.
- Interchangeable with standard quarter turn latches.
- Maintains NEMA, UL and CSA ratings as noted.
|
| |
| Part No. |
Description |
Material |
NEMA Rating |
| EQTRL |
Locking Qtr Turn |
Zinc Die/Chrome |
n/a (internal use only) |
| 2QTR |
Slotted Qtr Turn |
Zinc Die/Black |
12, 4 |
| 2SSQTR |
Slotted Qtr Turn |
Stainless
steel |
12, 4, 4X |
| 2WKL |
Wing knob lock |
Zinc Die/Black |
12, 4 |
| 2QPL |
Padlockable quarter turn latch |
Zinc Die/Black |
12, 4 |
|
|
|
|
| Handles |
 |
- Field installable.
- Interchangeable with standard quarter turn latches.
- Maintain NEMA, UL and CSA ratings as noted.
|
| |
| Part No. |
Description |
Material |
NEMA Rating |
| EHTL |
Locking T Handle |
Zinc Die/Black |
12, 4 |
| EHLL |
Locking L Handle |
Zinc Die/Black |
12, 4 |
| EHLPL |
Padlockable L Handle |
Zinc Plated |
12 |
| EHLPLSS |
Padlockable L Handle |
Stainless Steel |
12, 4, 4X |
| EHLNLSS |
Non Locking L Handle |
Stainless Steel |
12, 4, 4X |
|
|
|
|
| Eclipse Mounting Foot Kit |
 |
- Maintains UL, CSA and NEMA ratings.
- Field installable.
- New triangular flanges prevent the foot from rotating
- Foot can still be mounted sideways as well as top/bottom
- Available in mild, 304SS and 316SS
- Packaged in quantities of four
- Replaces Part Numbers: EZPMF, ESSMF and ES16MF
|
| |
| Part No. |
Material |
| EZPMFHD |
Clear Zinc Plated, mild steel |
| ESSMFHD |
Type 304 Stainless |
| ES16MFHD |
Type 316 Stainless |
|
|
|
|
| Eclipse Rear Mounting Hole Plugs |
 |
- Used to plug rear mounting holes for Eclipse series
- Snap in plug designed for rear .50" mounting hole
- Packaged in quantities of 40
|
| |
|
| |
|
