Polyester Modular Enclosures - NEMA 4X
PW Series - Accessories |
| << Product Information << General Accessories << |
|
|
| PW Series Inner Panel |
|
- Available in steel or unfinished aluminum.
- 12 gauge steel panels are finished in white baked powder coating.
- Aluminum panels are 0.125" (3.2mm) unfinished.
- Hardware to mount inner panels is included with PW enclosures.
|
 |
|
| |
Steel
Part No. |
Aluminum
Part No. |
Fits
Enclosure |
A |
B |
PWP4333
|
PWPA4333
|
PW433320
|
inch |
14.37 |
9.84 |
| mm |
365 |
250 |
PWP5343
|
PWPA5343
|
PW534320
|
inch |
18.31 |
13.78 |
| mm |
465 |
350 |
PWP6544
|
PWPA6544
|
PW654425
|
inch |
22.24 |
13.78 |
| mm |
565 |
350 |
PWP7554
|
PWPA7554
|
PW755430
|
inch |
26.18 |
17.72 |
| mm |
665 |
450 |
PWP8564
|
PWPA8564
|
PW856430
|
inch |
30.12 |
21.65 |
| mm |
765 |
550 |
|
|
| |
|
|

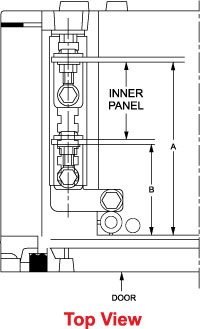

| PW Series Adjustable Depth Supports |
|
- Supports designed to fit 200 mm (7.88"), 250 mm (9.80”), 300 mm (11.80") and 350 mm (13.8") enclosures.
- Self positioning slots allowing for adjustment every 12.5 mm (0.50").
- Made of double chromed zinc coated steel.
- Attaches easily to the enclosure.
|
| |
| Part No. |
Fits
Enclosures |
Full Back |
Full Front |
| A |
B |
PWDC200 |
PW534320 |
inch |
6.4 |
3.9 |
PW433320 |
mm |
162 |
99 |
PWDC250 |
PW654425 |
inch |
8.1 |
4.1 |
|
mm |
205 |
105 |
PWDC300 |
PW755430 |
inch |
10 |
8.1 |
PW856430 |
mm |
255 |
205 |
|
|
| |
|
|

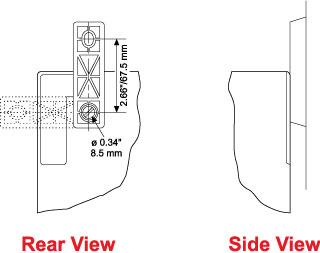

| PW Series Mounting Feet |
|
- Constructed of polyamide and fiberglass.
- Kit includes inserts and M8 screws to permit horizontal or vertical installation.
- Easily installed in the field.
|
| |
|
|
|
| |
|
|
| PW Series Rear Blanking Cover |
|
- Insulating rubber covers simply "snap" in covering the rear self-ventilating openings when additional protection is required.
- Easily installed in the field - no hardware required.
- Quantity of 4.
|
| |
| Part No. |
Fits Enclosures |
PWRBG20 |
PW433320 |
|
PW534320 |
PWRBG2530 |
PW654425 |
|
PW755430 |
|
PW856430 |
|
|
| |
|
|

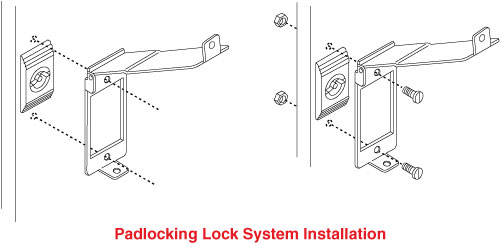

| PW Series Padlock Adaptor |
|
- Permits installation of padlock over the standard "Double Bar" quarter turn.
- 1.5 mm thick stainless steel.
- Easy installed in the field.
|
| |
|
|
|
| |
|
|
| Porthole Viewing Windows |
|
- Made of high UV resistance polycarbonate.
- Installation template included.
- Pre-installed gasket.
|
| |
| Part No. |
|
A |
B |
C |
PVW1111CC |
inch |
3.66 |
3.66 |
0.32 |
| mm |
93 |
93 |
8 |
PVW1814CC |
inch |
5.04 |
5.04 |
0.22 |
| mm |
128 |
128 |
5.5 |
|
|
| |
|
|
| Hinged Viewing Windows |
|
- Made of high UV resistance poly-carbonate.
- Installation template included.
- Pre-installed gasket.
- Finger latches for easy opening with securing provision.
|
| |
| Part No. |
|
A |
B |
C |
PVW9577CC
|
inch |
3.03 |
3.74 |
0.60 |
| mm |
77 |
95 |
15 |
PVW1677CC
|
inch |
3.03 |
6.42 |
0.60 |
| mm |
77 |
163 |
15 |
PVW2077CC
|
inch |
3.03 |
7.87 |
0.60 |
| mm |
77 |
200 |
15 |
|
|
| |
|
|
| Large Viewing Windows |
|
- Made of high UV resistance poly-carbonate.
- Installation template included.
- Pre-installed gasket.
- Finger latches for easy opening with securing provision.
|
| |
| Part No. |
|
A |
B |
PVW2423CC
|
inch |
9.76 |
9.25 |
| mm |
248 |
235 |
PVW2929CC
|
inch |
11.42 |
11.42 |
| mm |
290 |
290 |
|
|
| |
|
|
| Air Vents |
|
- Made of high UV resistance poly-carbonate.
- Installation template included.
- Pre-installed gasket.
- Surface mounting on a wide variety of enclosures from steel to non-metallic.
- Quarter turn thumb latch.
|
| |
| Part No. |
Outside Diameter |
Cutout Diameter |
PVENT |
1.76 |
1.36 |
|
|
| |
|
|
| PW Series Rail Fixing Insert |
|
- Insert nut specially designed to fit in the back of the enclosure for quick fixing of 35 mm (1.3") rails through self-tapping screws (included).
- Made of insulating material.
- Fits all sizes of PW enclosures.
- Packaged in quantities of two.
|
| |
|
|
| |
|
|
| Metal Double Bar Enclosure Key |
|
- PW Enclosures use a standard double bar key. One molded key is shipped with the enclosure, however in the instance you lose the key, or would like backup, they are available for order.
- Metal key fits all sizes of PW Enclosures.
- Packaged individually.
|
| |
|
|
| |
|
|
| Molded Double Bar Enclosure Key |
|
- PW Enclosures use a standard double bar key. One is shipped with the enclosure, however in the instance you lose the key, or would like backup, they are available for order.
- Molded key fits all sizes of PW Enclosures.
- Packaged individually.
|
| |
|
|
| |
|
