Modular Freestanding Enclosures - NEMA 12
Accessories
<< Product Information << Modular Freestanding Enclosures <<
Quick Links:

IME Side Panels


  • Maintains UL/CSA Type 12 approvals.
  • Screw fastens into frame.
  • Bond studs provided for grounding.
  • Finished in beige.
  • Packaged in quantities of two.
  • Optional tamper resistant screws available

Part No. (Pair) For Use With Enclosure A x C (mm)
ISP166 1600 x 600
ISP168 1600 x 800
ISP184 1800 x 400
ISP185 1800 x 500
ISP186 1800 x 600
ISP188 1800 x 800
ISP204 2000 x 400
ISP205 2000 x 500
ISP206 2000 x 600
ISP208 2000 x 800
IME Bridge Panel


  • Mounts between inner panels of joined enclosures.
  • Finished in white

Part No. For Use With Enclosure
Nominal Height (mm)		   Overall Dimensions
Height Width
IBP16 1600 inch 59.31 5.13
mm 1507 130
IBP18 1800 inch 66.31 5.13
mm 1684 130
IBP20 2000 inch 75.06 5.13
mm 1907 130
Back to Top
IME Door Mount Rails

  • Allows for a variety of door mounting applications.
  • Mounts to studs on door.
  • Finished in beige.
  • Packaged in quantities of two.

Part No. For Use With Enclosure
Nominal Height (mm)		   Usable
Height
IDMR16 1600 inch 50.25
mm 1276
IDMR18 1800 inch 57.25
mm 1454
IDMR20 2000 inch 64.25
mm 1632



Door Width
(mm)		   Door Mount
Rail Centers
600 inch 16.13
mm 410
700 inch 21.38
mm 543
800 inch 21.38
mm 543
1000 inch 31
mm 787


Additional Inner Panel

  • For use with IME, IFMD and IMET Series.
  • Can be used with IPC Series, must order IPC Base Panel Bracket
    (Part No. IPCPSK).
  • Replacement or additional mounting panel (standard enclosures include
    one inner mounting panel).
  • 12 gauge (IME, IFMD) or 10 gauge (IMET) steel panel.
  • Comes complete with all mounting hardware.
  • Finished in white.

Part No Fits IME/IMET/IFMD
Nominal Dimension		 Panel Size (In.)
A B Height Width
IMEP166 1600  600 61.75 17.75
IMEP167 1600  700 61.75 22.75
IMEP168 1600  800 61.75 26.25
IMEP1612 1600 1200 61.75 40.00
IMEP186 1800  600 68.75 17.75
IMEP187 1800  700 68.75 22.75
IMEP188 1800  800 68.75 26.25
IMEP1810 1800 1000 68.75 34.12
IMEP1812 1800 1200 68.75 40.00
IMEP1816 1800 1600 68.75 57.75
IMEP206 2000  600  77.5  17.75
IMEP207 2000  700  77.5  22.75
IMEP208 2000  800  77.5 26.25
IMEP2010 2000 1000  77.5 34.12
IMEP2012 2000 1200  77.5 40.00
IMEP2016 2000 1600  77.5 57.75

Side Mount Inner Panel

  • For use with IME, IFMD and IMET Series only 12 gauge steel.
  • Comes complete with all mounting hardware.
  • Finished in white.

Part No. For Use With Enclosure A x C (mm) Height Width
IMEPS166 1600 x 600 62.75 17.12
IMEPS168 1600 x 800 62.75 25.00
IMEPS184 1800 x 400 69.75 9.25
IMEPS185 1800 x 500 69.75 13.12
IMEPS186 1800 x 600 69.75 17.12
IMEPS188 1800 x 800 69.75 25.00
IMEPS204 2000 x 400 78.50 9.25
IMEPS205 2000 x 500 78.50 13.12
IMEPS206 2000 x 600 78.50 17.12
IMEPS208 2000 x 800 78.50 25.00


IME Joining Kit

  • Connects side by side units at 6 points.
  • Maintains UL/CSA Type 12 approvals.
  • Finished in beige.

Part No. For Use With Enclosure A x C (mm)
IJK166 1600 x 600
IJK168 1600 x 800
IJK184 1800 x 400
IJK185 1800 x 500
IJK186 1800 x 600
IJK188 1800 x 800
IJK204 2000 x 400
IJK205 2000 x 500
IJK206 2000 x 600
IJK208 2000 x 800
Back to Top
Vented Raised Top

  • For use with IME, IFMD and IPC Series only.
  • Provides top ventilation in enclosure.
  • Cutout diagram provided.
  • Comes complete with all mounting hardware.
  • Finished in beige.

Part No Fits IME/IPC/IFMD
Nominal Dimension		 Actual Outside Dimension
B (mm) C (mm) A (In.) B (In.) C (In.)
IPT64 600 400 2 13.13 13.75
IPT65 600 500 2 13.13 17.63
IPT66 600/700 600 2 13.13 21.63
IPT68 600/700 800 2 13.13 29.5
IPT84 800 400 2 21.63 13.75
IPT85 800/1000 500 2 21.63 17.63
IPT86 800/1000 600 2 21.63 21.63
IPT88 800/1000 800 2 21.63 29.5
Window Door

  • For use with IME Series only.
  • Provides maximum viewing area of enclosed equipment.
  • Maintains NEMA 12 rating.
  • UL 94-VO polycarbonate window.
  • Removable and reversible for left or right hand opening.
  • NOTE: Left hand opening will not work with interlock kits.
  • Complete with locking handle and required mounting hardware.
  • Finished in beige.

Part No For Use With Enclosure
A x B (mm)		 Viewing Area (In.)
A B
IMEWD166 1600 x 600 56.69 15.00
IMEWD167 1600 x 700 56.69 20.00
IMEWD168 1600 x 800 56.69 23.50
IMEWD186 1800 x 600 63.69 15.00
IMEWD187 1800 x 700 63.69 20.00
IMEWD188 1800 x 800 63.69 23.50
IMEWD1810 1800 x 1000 63.69 31.37
IMEWD206 2000 x 600 72.44 15.00
IMEWD207 2000 x 700 72.44 20.00
IMEWD208 2000 x 800 72.44 23.50
IMEWD2010 2000 x 1000 72.44 31.37

Solid Door

  • For use with the IME Series only.
  • Maintains NEMA 12 rating.
  • Constructed of 14 gauge steel.
  • Smooth action handle provides solid NEMA 12 seal.
  • Quick release hinge design allows for easy removal.
  • Can fit either front or back of frame.
  • Complete with locking handle and required mounting hardware.
  • Finished in beige.

Part No. For Use With Enclosure
A x B (mm)
IMESD166 1600 x 600
IMESD167 1600 x 700
IMESD168 1600 x 800
IMESD186 1800 x 600
IMESD187 1800 x 700
IMESD188 1800 x 800
IMESD1810 1800 x 1000
IMESD206 2000 x 600
IMESD207 2000 x 700
IMESD208 2000 x 800
IMESD2010 2000 x 1000

IPC Enclosure Shelves
Printer Shelf

  • Pull-out printer shelf with 3 levels for printer, paper feed and paper collection, finished in black.
  • Pull-out server shelf with handle for convenience, finished in white.
  • Slides included.
Printer Shelf
Part No.		 For Use with
Enclosure Nominal Width		   Usable Shelf Dimensions
Height Width Depth
IPCPS7 700mm inch 12.25 21.59 19.00
mm 311 548 483
IPCPS8 800mm inch 12.25 25.09 19.00
mm 311 637 483


Server Shelf
Server Shelf
Part No.		 For Use with Enclosure
Nominal Width x Depth		   Usable Shelf Dimensions
Width Depth
IPCSS76 700mm x 600mm inch 21.56 16.00
mm 548 406
IPCSS78 700mm x 800mm inch 21.56 23.88
mm 548 607
IPCSS86 800mm x 600mm inch 25.15 16.00
mm 639 406
Back to Top
IPC Fixed Vented Shelf

  • For use with IPC Series only (NOTE: standard IPC enclosure with window includes 1 Fixed Vented Shelf for top section as standard).
  • Vented shelf provides a sturdy shelf while still allowing air flow.
  • Comes complete with all mounting hardware.
  • Finished in beige.

Part No Fits IPC Nominal Dimension Shelf Size (In.)
B C W D
IPCFVS76 700 600/800 22.75 18.00
IPCFVS86 800 600 26.25 18.00
IPC Base Inner Panel

  • For use with IPC Series only
  • Provides electrical panel mounting in bottom compartment of IPC enclosure.
  • 12 gauge steel panel.
  • Comes complete with all mounting hardware.
  • Finished in white.
  • Not compatible when using IPC shelves.

Part No Fits IPC Nominal Dimensions Panel Size (In.)
B C Height Width
IPCBP76 700 600 27.5 22.25
IPCBP78 700 800 27.5 22.25
IPCBP86 800 600 27.5 25.75
Fold Down Shelf

  • Supports various equipment used temporarily to service/program switchgear inside enclosures.
  • Mounts with bolts through doors or sides.
  • Weight capacity 100 lbs.
  • Finished in beige.

Part No Work Surface (In.)
W D
FDS1212 12 12
FDS1818 18 18
IME Door Shelf

  • Mounts to studs on door or door mount rails (sold separately).
  • Can be easily repositioned to various heights, quickly folds up and down.
  • Finished in beige.

Part No.   For Use With
Nominal Door Width (mm)		 Shelf Dimensions
Width Depth
IDS6 inch 600 15.00 14.06
mm 381 357
IDS7 inch 700, 800, 1000 20.25 14.06
mm 514 357
Back to Top
Plinth


  • Plinths install under enclosure for additional cable entry space or lift access
  • Adds 4” to overall enclosure height.
  • 4 corners bolt to enclosure with 4 removable fill panels.
  • Not compatible with leveling feet.
  • Comes complete with all mounting hardware.
  • Two plinths required for IMET, see chart.
  • Finished in beige.

Part No Fits IME/IPC/IFMD Nominal Dimension IMET (2pc.)
B C B
IPL64 600 400 1200
IPL65 600 500 1200
IPL66 600 600 1200
IPL68 600 800 1200
IPL76 700 600 N/A
IPL78 700 800 N/A
IPL84 800 400 N/A
IPL85 800 500 1600
IPL86 800 600 1600
IPL88 800 800 1600
IPL105 1000 500 2000
IPL106 1000 600 2000
IPL108 1000 800 2000
IME Center Depth Support

  • Provides additional support to enclosure or suites of joined enclosures housing heavy panel loads.
  • Cannot be mounted where a bridge panel is installed.
  • Recommended for IFMD enclosures.
  • Packaged in quantities of two.
  • Finished in beige.

Part No. (Pair) Fits Enclosure Depth
IMECDS4 400 mm
IMECDS5 500 mm
IMECDS6 600 mm
IMECDS8 800 mm
Interlock Hardware

Master Interlock Kit
  • All kits maintain Type 12 approvals.
  • Master Interlock Kit - for rightmost enclosure.
  • Slave Interlock Kit - required for each slave door to be interlocked with master door.
  • Slave Interlock Joining Kit - interlock rods for all single door cabinet widths (not required for first slave unit)
  • Yellow zinc-dichromate plated.
  • Not compatible with 2 door units (IMET Series).
Slave Interlock Kit



Part No. Description
IMK Master Interlock Kit (master cabinet only)
ISK16 Slave Interlock Kit for 1600mm high (1 for each slave cabinet)
ISK18 Slave Interlock Kit for 1800mm high (1 for each slave cabinet)
ISK20 Slave Interlock Kit for 2000mm high (1 for each slave cabinet)
ISKJ6¹ Slave Interlock Joining Kit for 600mm wide
ISKJ7¹ Slave Interlock Joining Kit for 700mm wide
ISKJ8¹ Slave Interlock Joining Kit for 800mm wide
ISKJ10¹ Slave Interlock Joining Kit for 1000mm wide
¹ ISKJ only required to join slave unit to slave unit. For side by side slave units,
ISKJ width refers to enclosure on right.
Slave Interlock Joining Kit
Back to Top
Leveling Feet

  • Set of 4 leveling feet available in non-skid or standard base.
  • 4 leveling feet will support a maximum of 800 lbs.

Part No. Description
CLFKNS Non-skid rubber base
CLFK Standard nylon base
Literature Pocket Kit

  • For use as additional or replacement literature pockets.
  • Kit includes pocket, high strength two-sided adhesive tape and surface preparation swab.
  • Plastic pocket is black.
  • Packaged individually.

Part No. Height Width Depth
PKT66 6 6 0.75
PKT99 6 9 0.75
PKT1212 12 12 2.50
Light Kit & Accessories

Remote door switch not included
- must be ordered separately.
  • Light kits are offered in 18", 24" and 48" widths.
  • Includes one outlet, features on/off switch.
  • Can mount into light mounting channel, bolt through enclosure or by using magnet strip (available separately).
  • Door switch available separately for automatic activation (Part No. FLKDS).
  • T8 fluorescent bulb not included.

Part No. Description
FLK18T8¹ 18" Fluorescent Light Kit
FLK24T8¹ 24" Fluorescent Light Kit
FLK48T8¹ 48" Fluorescent Light Kit
FLK18MM Magnet mount for 18” and 24” kit
FLK48MM Magnet mount for 48” light kit
FLKDS Remote Door Switch
¹ T8 fluorescent bulb not included
IME Door Support Wheel

  • Mounts to studs on door.
  • Provides easier closing and extra support when significant weight is mounted on the door.

Part No. IDSW
Back to Top
IME Tamper Resistant Screw Kit

  • Replacement screws for side and rear panels.
  • Provide added safety and security.
  • Package consists of 8 security hex screws and 1 security hex key.
  • Please see the chart below to determine how many kits to order.

Part No. ISPTPKIT

Component # Screws
Req'd		 # Kits
to Order
Side Panels (Pair) 8 1
Rear Panel (600, 700, 800 mm) 6 1
Rear Panel (1000 mm) 9 2
Rear Panel (1200, 1600 mm) 12 2
Caster Assembly - Outside Mounting

  • Available in either locking or non-locking format.
  • Sold in pairs allowing for mix of locking and non-locking on same cabinet.
  • Wheels have a diameter of 3.5".
  • No drilling required as casters fit into built-in caster mounts.
  • Mounts outside integral plinth and adds 4.88" to overall cabinet height.
  • Side, front or rear mounting.
  • 1000 lb. weight capacity per set of four casters.
  • Not recommended for use with 1200 or 1600 mm wide units.

Part No. (Pair) Description
CCSTL Locking
CCSTN Non-Locking
Caster Assembly - Inside Mounting

  • Mounts inside integral plinth and adds 1.38" to overall cabinet height.
  • 1080 lb. load capacity per set of four casters.
  • Not recommended for 400 mm deep units.
  • Packaged in quantities of four.
  • Finished in black.

Part No. Fits Enclosure Nominal Width (mm)
ICST6 600
ICST7 700
ICST8 800
ICST10 1000
ICST12 1200
ICST16 1600
19"/24" Mounting Rails


  • Provides 19" rack mounting centers in 600mm wide units and 24" rack mounting centers in 700mm wide units.
  • Pairs of rails are available with mounting hardware in zinc plated (ZPL) finishes.
  • Tapped rails are made of 10 gauge steel, are tapped 10-32 with full EIA centers.

Tapped (Pair)
Part No. 		Fits Enclosure
Height mm		 Panel Height
Inches EIA Units
CCR63TZPL 1600 63.00 36.00
CCR70TZPL 1800 70.00 40.00
CCR78TZPL 2000 78.75 45.00

Back to Top

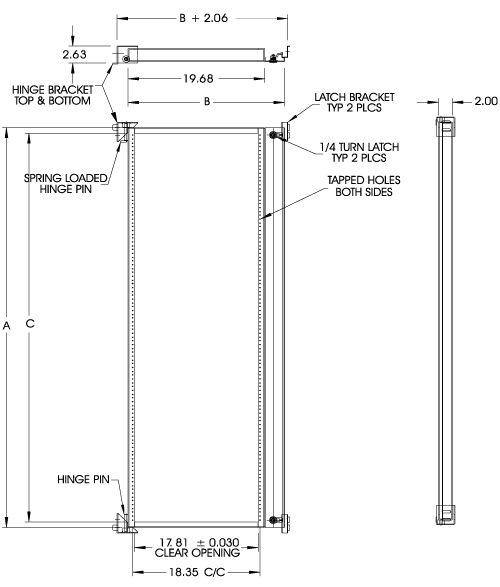

IME Series Swing Frame

  • Provides 19" rack mounting in IME Series enclosures.
  • Available for 700mm wide and 800mm wide cabinets.
  • Can be hinged right or left.
  • Can be mounted at any depth in the enclosure.
  • Simple installation (4 bolts).
  • Spring loaded hinge pins.
  • Mounting holes tapped 10-32.
  • Finished in flat black.

Part No A B C For Use With
IMESWF167 61.25 22.54 34 U IME Frame 1600 high x 700
IMESWF168 61.25 26.04 34 U IME Frame 1600 high x 800
IMESWF187 68.25 22.54 38 U IME Frame 1800 high x 700
IMESWF188 68.25 26.04 38 U IME Frame 1800 high x 800
IMESWF207 77.00 22.54 43 U IME Frame 2000 high x 700
IMESWF208 77.00 26.04 43 U IME Frame 2000 high x 800

© Copyright 2008. Hammond Manufacturing Ltd. All rights reserved. Go Back a Page | Top of Page | Home | Contact Webmaster | Contact Us
