Two Design Styles

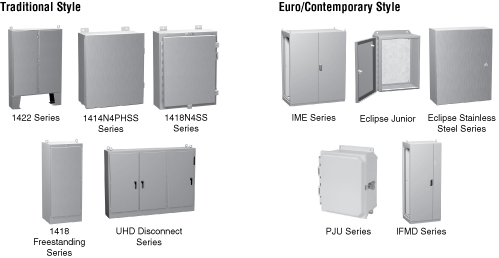

The application or use normally decides the style. For example, if frequent opening is required, the new 1/4 turn contemporary design is faster and easier than removing the compression clamps. If the application demands heavy equipment mounted to the doors or large cutouts that weaken the door structure, a heavy duty traditional style is recommended. Hammond offers a variety of both Traditional and Euro/Contemporary designs with various NEMA ratings, material types and features.

Traditional Design
Traditional design is generally heavy duty or severe environment conditions.

Euro or Contemporary Design
Euro/Contemporary design is generally used for appearance, ease of entry or for use with modular accessories.

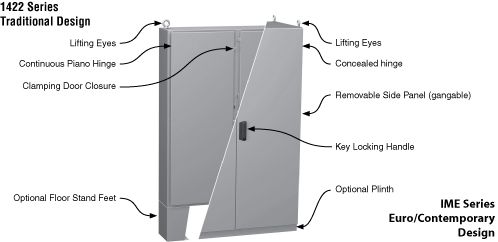

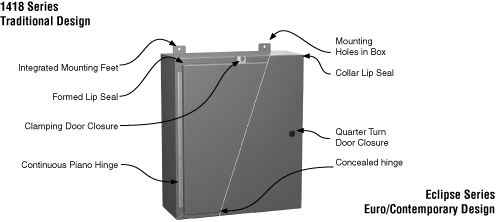

Features and Benefits of Enclosure Types

Features	Traditional	Euro/Contemporary
Enclosure Types	Wallmounts, Floormounts, Freestanding	Wallmounts, Floormount Modular
NEMA Rating	Type 12, 4 & 4X	Type 12, 4 & 4X
Material Type	Mild Steel, Stainless Steel, Non-metallic	Mild Steel, Stainless Steel, Non-metallic
Finish	Mild Steel ASA 61 Gray exterior White interior Stainless Steel - brushed Non-metallic - Medium Gray	Mild Steel ASA 61 Gray Exterior RAL 7035 interior/exterior Stainless Steel - brushed Non-metallic - Medium Gray
Hinges	Continuous piano hinge advantage - greater strength	Concealed hinge advantage - easily removable
Door Closure	Clamps, screws or handle advantage - maximum surface area	Quarter Turn - 2 or 3 point handle advantage - easily accessible entry
Padlocking	Comes standard on enclosure	Accessory padlock adaptor available
Mounting Options	Integrated mounting feet	Holes through box or optional feet
Lip Construction	Flat or formed lip seal	Flanged trough collar (FTC) lip seal
Inner Panel	White inner panel included	White or galvanized inner panel available as an accessory*

* Eclipse Junior Series includes a galvanized inner panel. IME Series includes white inner panel.
