ROLEC - Sealed
Diecast Aluminum HandCase
(R270 - R273 Series)
ROLEC Logo
HomeProductsDistributorsTechnicalContact UsOther Options

Path: Home > Enclosure Index > MOREnclosures > ROLEC - Sealed - Diecast Aluminum HandCase

Click Here To Enlarge
click to enlarge
Click Here To Enlarge
click to enlarge
Click Here To Enlarge
click to enlarge

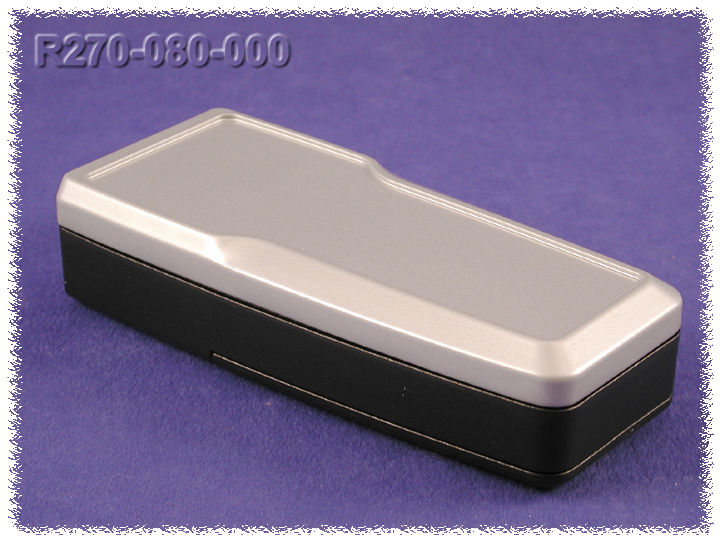

(Assembled View)

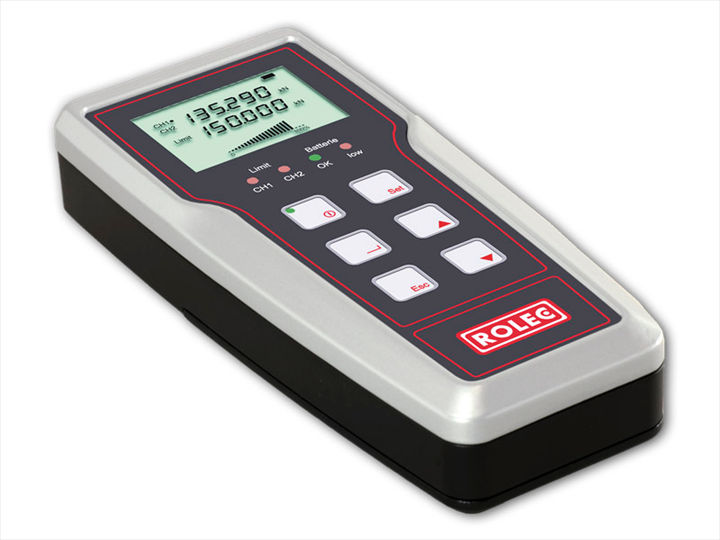

(Application Example)

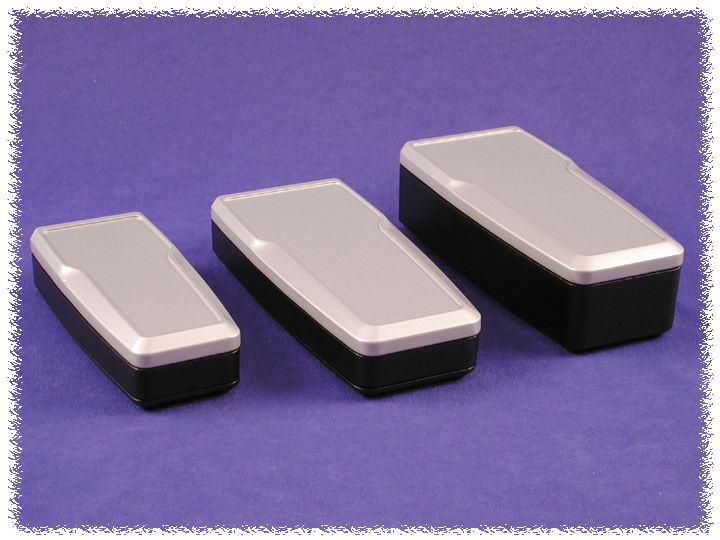

(Group View)

Key Features:

  • Designed as a heavy duty hand held - manufactured in diecast aluminum for superior strength.
  • Ergonomic design for extended handling without fatigue.
  • Two part - styled lid construction. Top half includes smooth recessed area for membrane, label or silkscreen.
  • P.C. board standoffs are cast into both halves of the enclosure - (see photo tables for details). Mounting screws included.
  • Four sizes include an ABS plastic battery compartment installed and gasketed access bottom lid. This battery compartment can hold up to 4 AA 1.5V batteries OR 2 - 9V batteries.
  • Gasketed lid with two piece "tongue & groove" construction provides protection against access of oil, dust and water.
  • Lid screws are stainless steel.
  • Designed to meet IP66.
  • Photo Tables Link here to photo tables of each part number.

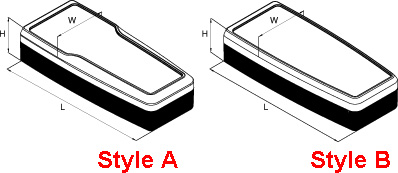

Style Drawings

Top half powder painted in a silver metallic and
the bottom half is powder painted in black (RAL 9005)

Part Number

Battery
Compartment
Style
(See Drawings
Above)

Units

Length

Width

Enclosure
Depth
(With Lid)

Weight

L
W
H
R270-080-000
Yes
A

Inches

7.09
3.15
1.67
1 lb. 1.1 oz.

mm

180
80
42.4
R270-081-000
No
B

Inches

7.09
3.15
1.67

14.6 oz.

mm

180
80
42.4
R270-100-000
Yes
A

Inches

8.66
3.94
1.67
1 lb.7.1 oz.

mm

220
100
42.4
R271-100-000
No
A

Inches

8.66
3.94
2.46
1 lb. 8.3 oz.

mm

220
100
62.4
Photo Tables Link here to photo tables of each part number.



Top & bottom half powder painted in a light gray (RAL 7035)

Part Number

Battery
Compartment
Style
(See Drawings
Above)

Units

Length

Width

Enclosure
Depth
(With Lid)

Weight

L
W
H
R272-080-000
Yes
B

Inches

7.09
3.15
1.67
1 lb. 1.1 oz.

mm

180
80
42.4
R272-081-000
No
B

Inches

7.09
3.15
1.67

14.6 oz.

mm

180
80
42.4
R272-100-000
Yes
B

Inches

8.66
3.94
1.67
1 lb.7.1 oz.

mm

220
100
42.4
R273-100-000
No
B

Inches

8.66
3.94
2.46
1 lb. 8.3 oz.

mm

220
100
62.4
Photo Tables Link here to photo tables of each part number.


R270-080-000 example

Click Here To Enlarge
click to enlarge
Click Here To Enlarge
click to enlarge
Click Here To Enlarge
click to enlarge
Click Here To Enlarge
click to enlarge
Assembled View
(Top)

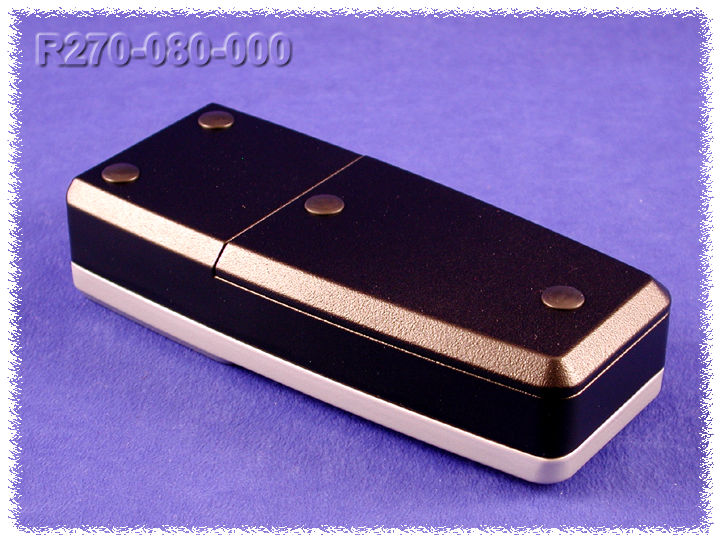

Assembled View
(Bottom)

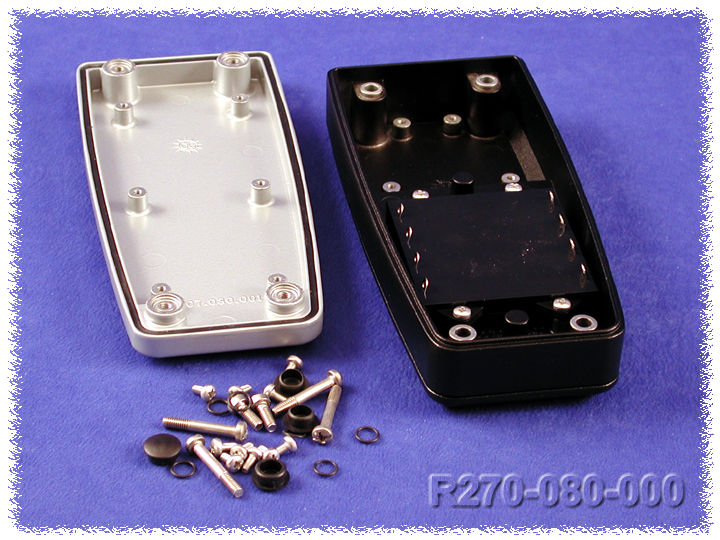

Open View

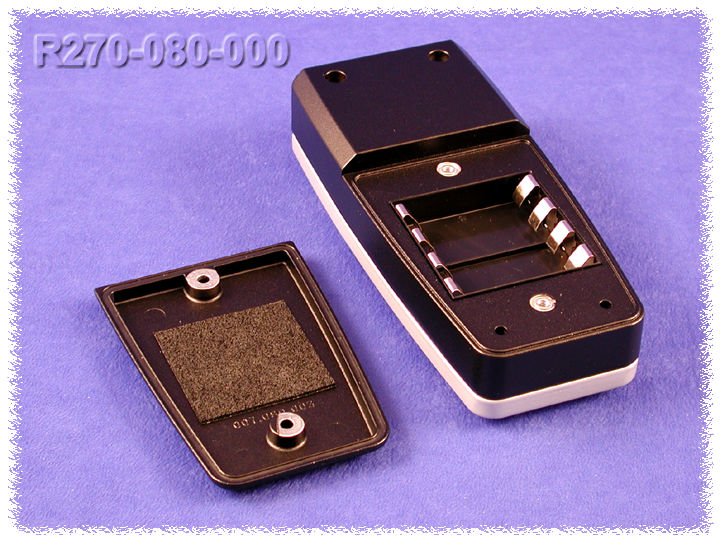

(Bottom)
Open View
(Top)

Exactly what you are looking for???
Link to our stocking distributors - most have "on-line" pricing, stock check and ordering!!!

Our Distributors
Order from your favorite distributor
