Takachi Enclosures (1597 Series)

Path: Home > Enclosure Index > Plastic - Takachi Enclosures

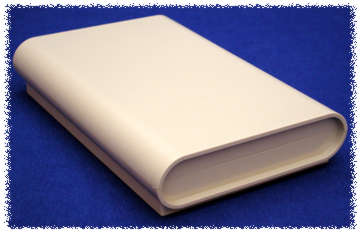

1597CBK	1597DGY

Wallmount - ABS Plastic - Snap Together

• Manufactured by our Japanese agent - stocked by us
• Molded in ABS plastic
• Unique rounded side - two piece molded construction
• Top & bottom "snap" together
• Includes molded in keyhole knockout areas (2) for mounting either vertically or horizontally.
• Bottom half includes 6 molded in, P.C. board standoffs

Part Number	Color	Reader File	AutoCAD .dxf & .dwg Files (zipped)	3D Solid Model .igs & .stp files (zipped)	Units	Width	Length	Enclosure Depth (Includes Lid)
1597CGY 1597CBK	Grey Black	234K	143K	212K	Inches	4.33	5.5	1.38
					mm	110	140	35
1597DGY	Grey	238K	148K	272K	Inches	4.92	7.09	1.38
					mm	125	180	35

Link here for more photos & internal information

---

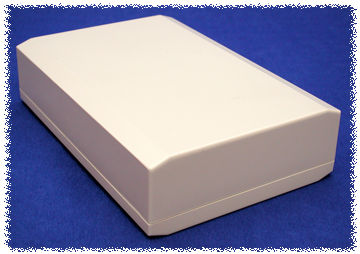

1597X	1597Y

ABS Plastic - Screw Fastened Lid

• Manufactured by our Japanese agent - stocked by us
• Molded in ABS plastic
• Includes machine screws & brass inserts
• Bottom & top half include molded in, P.C. board standoffs

Part Number	Color	Reader File	AutoCAD .dwg Files (zipped)	3D Solid Model .igs & .stp files (zipped)	Units	Width	Length	Enclosure Depth (Includes Lid)
1597X	Grey	260K	146K	514K	Inches	3.5	5.5	1.8
					mm	90	140	45
1597Y	Grey	261K	151K	540K	Inches	5.3	7.9	2.0
					mm	135	200	50

Link here for more photos & internal information



Includes integral threaded brass inserts and machine screws providing extra strength for repeated assembly and disassembly of lid.



---

• Manufactured by our Japanese agent - stocked by us
• Molded in ABS plastic
• Two piece molded construction
• Top & bottom "snap" together

Part Number	Color	Reader File	AutoCAD .dwg Files (zipped)	3D Solid Model .igs & .stp files (zipped)	Units	Width	Length	Enclosure Depth (Includes Lid)
1597V	Grey	179K	127K	128K	Inches	1.6	5.1	1.0
					mm	40	130	25

Link here for more photos & internal information

• All Dimensions in inches & mm
• For other drawing information or if you prefer .dwg versions of these drawings e-mail [email protected]

---

catalog pages on this series (113K) 9C-1597.pdf

---

Order from your favorite distributor
