Universal Four Post Rack Kit FPRK Serie

English | Français

The Four Post Rack Kit (FPRK) converts two (2) 2-post racks into a 4-post rack frame. Available in two depths that adjust from 22 to 34 and 26 to 42 inches deep. Typical racks add three (3) inches per rack to the depth as noted in the table below. Simple to install, partially insert your mounting screws, slid the FPRK over the screws and tighten into place.

Features

  • Constructed in 16-gauge steel.
  • FPRK mount to any EIA rack mounting width.
  • Makes it possible for two (2) open racks to be put together to make a four (4) post-open rack.
    • Universal design works with any brand of rack that includes EIA-310-E mounting on both sides.
    • Compatible with 10-32, 12-24 and square hole rack rails.
  • Two (2) sets of brackets included to maintain equal distance at the top and bottom of the rack.
  • Two (2) adjustable depth options.
  • Finished in smooth RAL9005 black powder paint.
  • Includes four (4) angles and mounting hardware.
  • Maintains UL, Telcordia, and seismic standards.
  • TAA-compliant for federal GSA schedule purchases within the USA.
  • RoHS and REACH compliant.
  • Manufactured in North America within an ISO 9001:2015 certified facility.

Galería

  • FPRK2642BK
  • FPRK Mounted on 2x DRZ477
  • FPRK Mounted on 2x RB-2P77

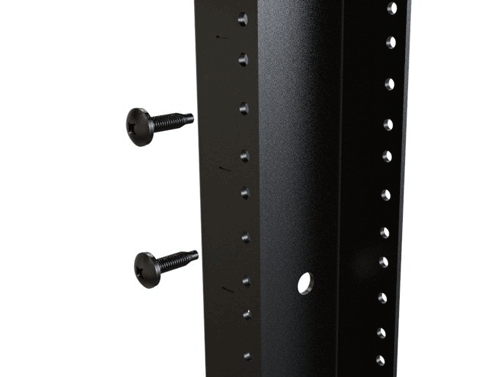

FPRK Installation

Detalles de la pieza

Haga clic en Número de pieza, más abajo, para obtener más detalles (por ejemplo, dibujos del producto, instrucciones de montaje, peso de envío).

Unidades mostradas: inch. Cambia de unidad: mm

Part No. Overall Dimensions RB-2P / RB-2PA / DNRRHDW Installed on DRZ4
Height Min Depth Max Depth Min Depth Max Depth
FPRK2234BK 3.50 28.00 40.00 34.00 46.00
FPRK2642BK 3.50 29.00 45.00 38.00 54.00

¿Necesita ayuda? Póngase en contacto con nosotros.

Datos sujetos a cambios sin previo aviso.
