Application

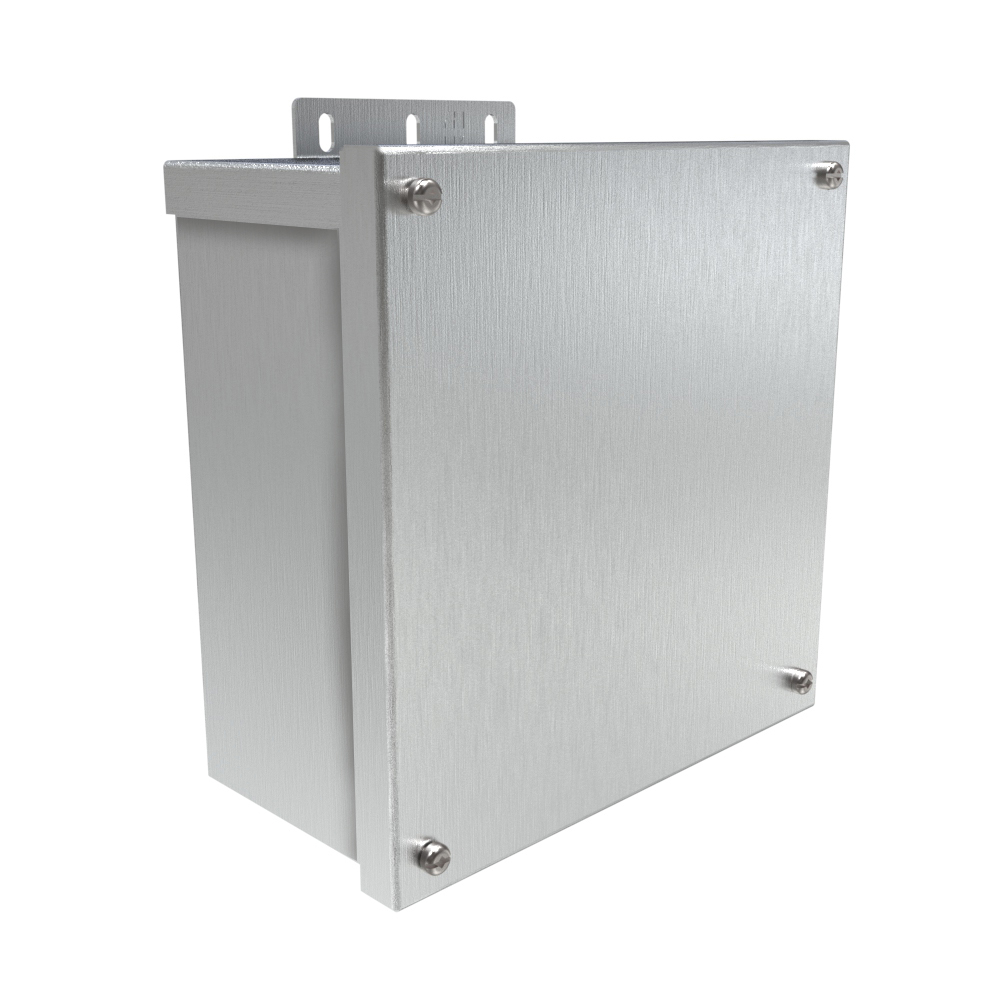

- Designed for use as a wiring/junction box.
- Provides protection against rain, sleet, snow and dripping water.
Standards
- UL-50 Type 3R
- CSA Type 3R
- Complies with:
- NEMA Type 3R
- IEC 60529, IP24
Construction
- Formed from 0.08" Type 5052 H-32 aluminum
- Drip-shield top and seam-free sides, front and back.
- Slip-on removable cover fastened with plated steel screws.
- External mounting feet.
- Oil resistant gaskets are permanently secured.
- A bonding stud is provided on the door and a grounding stud is provided in the box..
Finish
- Enclosure and cover are finished in natural unfinished aluminum.
Detalles de la pieza
Haga clic en Número de pieza, más abajo, para obtener más detalles (por ejemplo, dibujos del producto, instrucciones de montaje, peso de envío).
Unidades mostradas: inch. Cambia de unidad: mm
| Enclosure | |||
|---|---|---|---|
| Part No. | H | W | D |
| C3R664ESCNKAL | 6.00 | 6.00 | 4.00 |
| C3R884ESCNKAL | 8.00 | 8.00 | 4.00 |
| C3R886ESCNKAL | 8.00 | 8.00 | 6.00 |
| C3R10104ESCNKAL | 10.00 | 10.00 | 4.00 |
| C3R10106ESCNKAL | 10.00 | 10.00 | 6.00 |
| C3R12124ESCNKAL | 12.00 | 12.00 | 4.00 |
| C3R12126ESCNKAL | 12.00 | 12.00 | 6.00 |
Materiales alternativos
¿Necesita ayuda? Póngase en contacto con nosotros.
Datos sujetos a cambios sin previo aviso.
Tags: C3R, NEMA 3R, Type 3R, aluminum, junction box, wiring box, removable cover, screw cover
