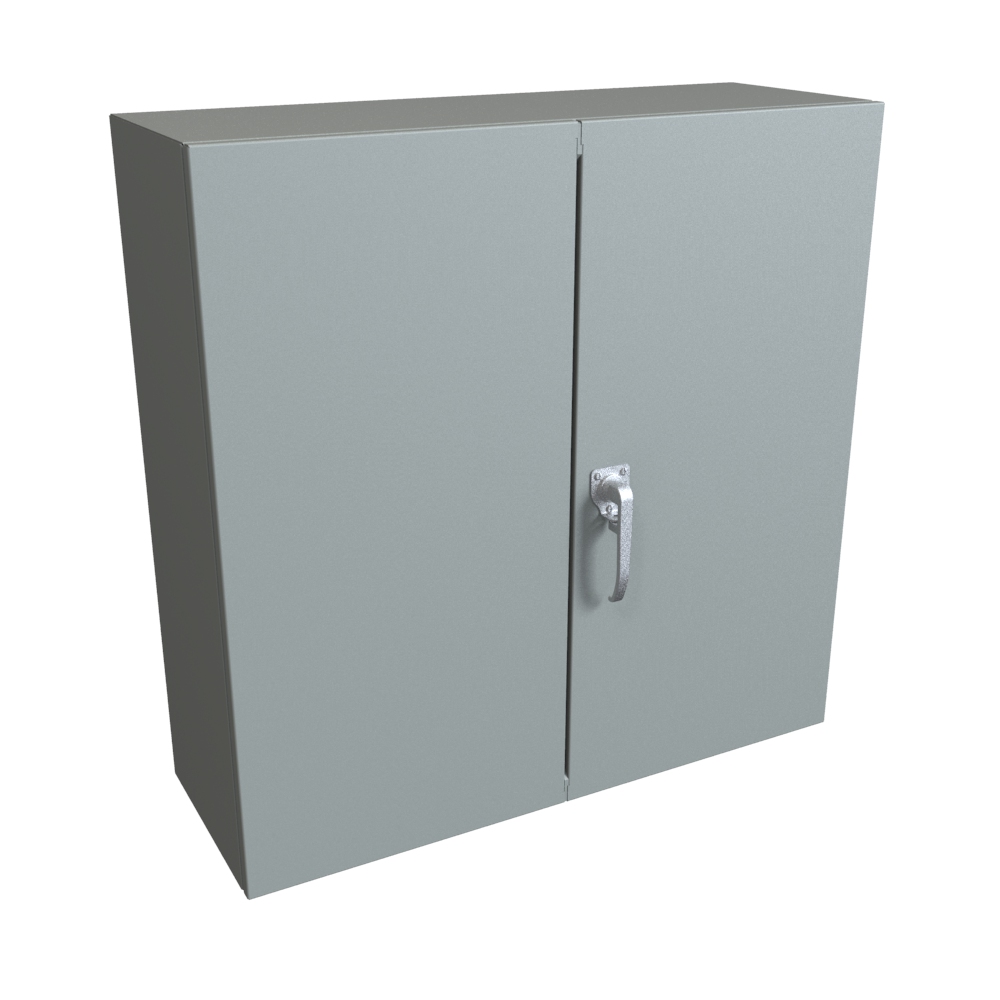

Type 3R Mild Steel Metering Cabinets C3RMC Serie

Hinge Door with Handle

English | Français

Application

  • Designed for outdoor housing of metering transformers.

Standards

  • CSA Approved, Type 12 or 3R
    • To meet 3R, drain hole must be drilled in bottom of enclosure
  • Complies with
    • NEMA Type 12 or 3R
    • IEC 60529, IP54 or IP24

Construction

  • Offered in single and double door versions.
  • Formed and seam welded from 14 or 16 gauge steel.
  • Smooth, continuously welded seams ground smooth.
  • Formed lip on enclosure to exclude flowing liquids and contaminants.
  • Padlockable "L" style handle for 3 point latch system
  • Oil resistant gaskets are permanently secured.
  • Removable inner panel included.
  • Collar studs provided for mounting inner panel.
  • Doors may be easily removed for modifications and are interchangeable.
  • Bonding stud provided on door and grounding stud installed in enclosure.
  • Hinges are constructed from 304 stainless steel.
  • Hinge pins are stainless steel.

Finish

  • Cover and enclosure are phosphatized and finished with a recoatable ANSI 61 smooth Gray powder inside and out.
  • Removable inner panel is finished in white powder coating.

Accesorios

Gallery Image

Detalles de la pieza

Haga clic en Número de pieza, más abajo, para obtener más detalles (por ejemplo, dibujos del producto, instrucciones de montaje, peso de envío).

Unidades mostradas: inch. Cambia de unidad: mm

Type of Enclosure Inner Panel
Part No. Door H W D H W
C3RMC202010 Single 20.00 20.00 10.00 18.17 18.17
C3RMC271310 Single 27.00 13.00 10.00 25.17 11.17
C3RMC302010 Single 30.00 20.00 10.00 28.17 18.17
C3RMC303010 Double 30.00 30.00 10.00 28.17 28.17
C3RMC363612 Double 36.00 36.00 12.00 34.17 34.17
C3RMC484812 Double 48.00 48.00 12.00 46.17 46.17
