Type 12 Mild Steel Two Door Modular Freestanding Enclosure IME Series

Hinge Door with Handle

English | Français

Nota: Esta línea de productos ha sido descatalogada como serie en stock. La información es sólo para referencia. Para obtener asistencia sobre soluciones alternativas, contacte con Hammond aquí o llame al EE.UU. (716) 630-7030, Canadá e Internacional (519) 822-2960.

Application

  • The IMET product line provides users with a rugged housing for industrial control and operator interface in harsh industrial environments.
  • Modular design permits joining of units together for large scale and mixed use applications.
  • A broad range of industry standard sizes are offered. Units are constructed to imperial dimensions and hardware sizes, with metric sizing provided for convenient reference.

Standards

  • UL 508A Type 12
  • CSA Type 12
  • Complies with
    • NEMA Type 12
    • IEC 60529 IP54

Construction

  • Frame with integral solid top
  • Lifting eyebolts
  • 2 removable bottom panels
  • 2 solid overlapping front doors with key locking handle
  • Removable rear cover panels
  • Inner mounting panel, additional panels available

Finish

  • Formed 14 gauge steel.
  • Frame has welded corner reinforcements.
  • Mounting channels on sides of enclosure are oriented front to back for depth adjustment of mounting panels.
  • Oil resistant gaskets are permanently secured on all openings.
  • Reinforced eyebolts are provided for easy enclosure lifting.
  • Frames are easily joined together with an optional joining kit.
  • Doors can be easily removed and interchanged.
  • Optional formed 16 gauge steel side panels are recessed to fit flush with the sides of the cabinet.Side panels must be ordered separately.
  • Bonding and grounding studs are provided for all doors and panels.

Accesorios

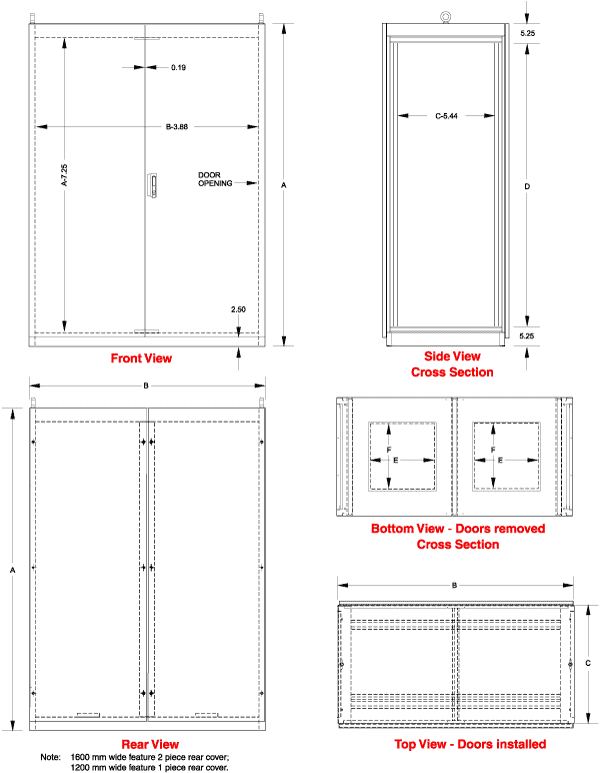

Gallery Image

Detalles de la pieza

Haga clic en Número de pieza, más abajo, para obtener más detalles (por ejemplo, dibujos del producto, instrucciones de montaje, peso de envío).

Cabinet Without With
Depth Bridge Panel Bridge Panel
(mm) (Inches) (Inches)
400 14.63 13.88
500 18.5 17.75
600 22.5 21.75
800 30.38 29.63

Unidades mostradas: inch. Cambia de unidad: mm

Part No. Nominal Dimensions Overall Dimensions Panel Dimensions Ship Wt.
A x B x C (mm) A B C D E F Height Width lbs
IMET16126 1600 x 1200 x 600 70.31 45.22 23.63 59.81 13.00 10.50 61.75 39.97 410
IMET16128 1600 x 1200 x 800 70.31 45.22 31.50 59.81 13.00 17.50 61.75 39.97 425
IMET18124 1800 x 1200 x 400 77.31 45.22 15.75 66.81 13.00 10.50 68.75 39.97 405
IMET18125 1800 x 1200 x 500 77.31 45.22 19.63 66.81 13.00 10.50 68.75 39.97 415
IMET18126 1800 x 1200 x 600 77.31 45.22 23.63 66.81 13.00 10.50 68.75 39.97 425
IMET18128 1800 x 1200 x 800 77.31 45.22 31.50 66.81 13.00 17.50 68.75 39.97 450
IMET18165 1800 x 1600 x 500 77.31 63.00 19.63 66.81 17.00 10.50 68.75 57.75 550
IMET18166 1800 x 1600 x 600 77.31 63.00 23.63 66.81 17.00 10.50 68.75 57.75 560
IMET18168 1800 x 1600 x 800 77.31 63.00 31.50 66.81 17.00 17.50 68.75 57.75 580
IMET20124 2000 x 1200 x 400 86.06 45.22 15.75 75.56 13.00 10.50 77.50 39.97 420
IMET20125 2000 x 1200 x 500 86.06 45.22 19.63 75.56 13.00 10.50 77.50 39.97 450
IMET20126 2000 x 1200 x 600 86.06 45.22 23.63 75.56 13.00 10.50 77.50 39.97 460
IMET20128 2000 x 1200 x 800 86.06 45.22 31.50 75.56 13.00 17.50 77.50 39.97 490
IMET20165 2000 x 1600 x 500 86.06 63.00 19.63 75.56 17.00 10.50 77.50 57.75 540
IMET20166 2000 x 1600 x 600 86.06 63.00 23.63 75.56 17.00 10.50 77.50 57.75 550
IMET20168 2000 x 1600 x 800 86.06 63.00 31.50 75.56 17.00 17.50 77.50 57.75 570
