Type 12 Consolets 1488 Serie

Hinged Cover

English | Français

Application

  • Designed for use as electric, hydraulic or pneumatic control and instrument enclosures.

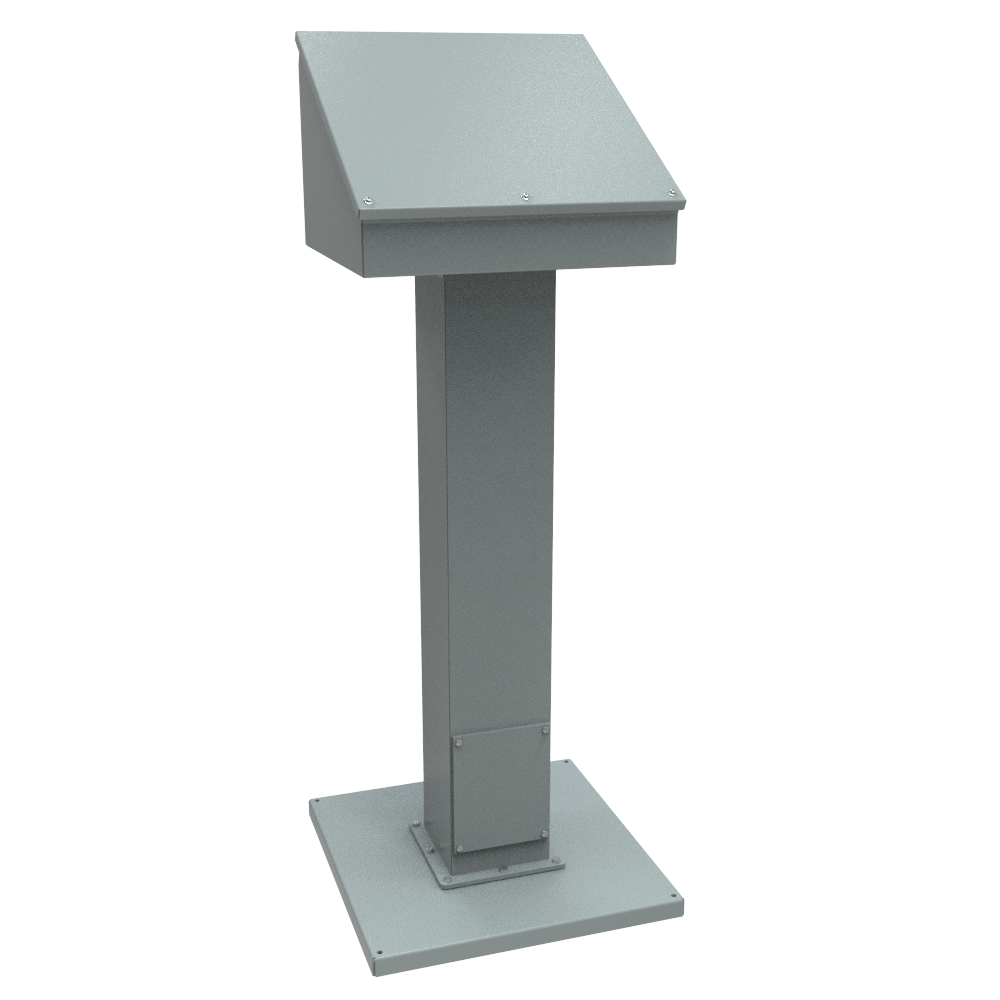

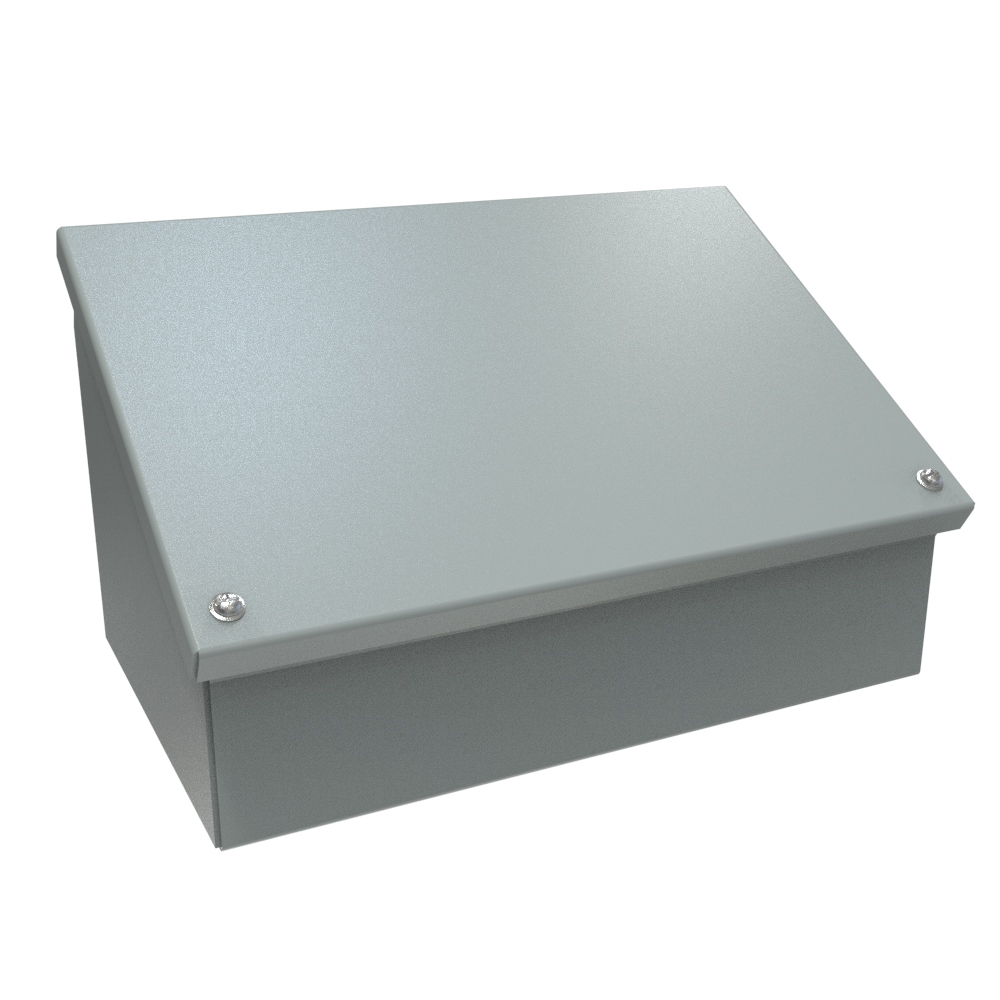

  • Ideal for flat or surface mounting/pedestal to provide the necessary 30° or 60° control slope.
  • Provides protection from dirt, dust, oil and water.

Standards

  • UL 508A Type 12, 13
  • CSA Type 12, 13
  • Complies with
    • NEMA Type 12, 13
    • IEC 60529, IP54

Construction

  • Formed 14 gauge steel.
  • Smooth, continuously welded seams.

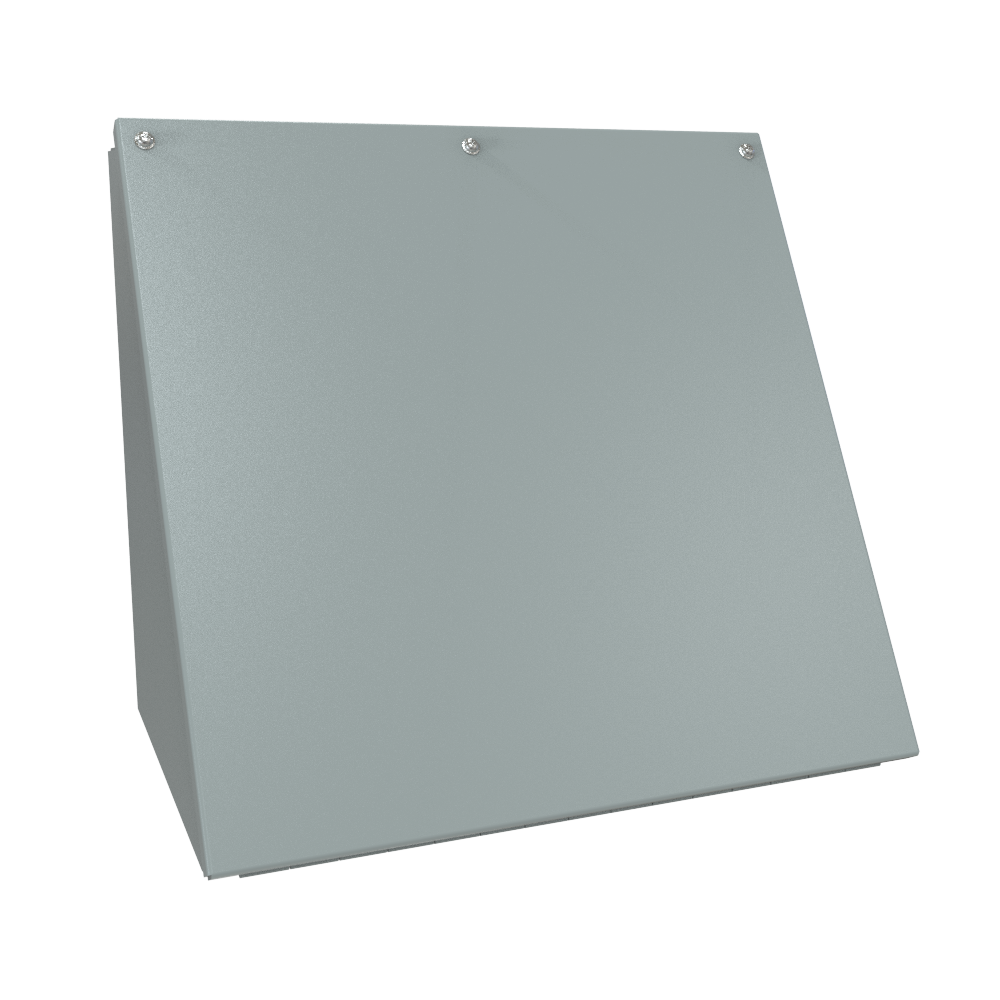

  • Construction provides either 30° or 60° slope on front cover depending on mounting position.
  • Continuously hinged cover may be removed by pulling the hinge pin.
  • Captive cover screws thread into sealed wells.
  • Oil resistant gasket and adhesive.
  • A bonding stud is provided on the door and a ground stud is provided on the enclosure.

Finish

  • Cover and enclosure are phosphatized and finished in ANSI 61 gray powder coating.

Accesorios

Gallery Image

Detalles de la pieza

Haga clic en Número de pieza, más abajo, para obtener más detalles (por ejemplo, dibujos del producto, instrucciones de montaje, peso de envío).

Unidades mostradas: inch. Cambia de unidad: mm

Enclosure
Part No. Cover H H1 H2 W D
1488EE7 8.00 2.50 7.16 8.00 7.44
1488EH7 8.00 2.50 7.16 12.00 7.44
1488EJ7 8.00 2.50 7.16 16.00 7.44
1488EL7 8.00 2.50 7.16 20.00 7.44
1488HH9 12.00 2.50 9.16 12.00 10.90
1488HJ9 12.00 2.50 9.16 16.00 10.90
1488HL9 12.00 2.50 9.16 20.00 10.90
1488HN9 12.00 2.50 9.16 24.00 10.90
1488JJ11 16.00 2.50 11.16 16.00 14.37
1488JL11 16.00 2.50 11.16 20.00 14.37
1488JN11 16.00 2.50 11.16 24.00 14.37
1488JQ11 16.00 2.50 11.16 30.00 14.37
1488JS11 16.00 2.50 11.16 36.00 14.37
1488LL13 20.00 2.50 13.16 20.00 17.83
1488LN13 20.00 2.50 13.16 24.00 17.83
1488LQ13 20.00 2.50 13.16 30.00 17.83
