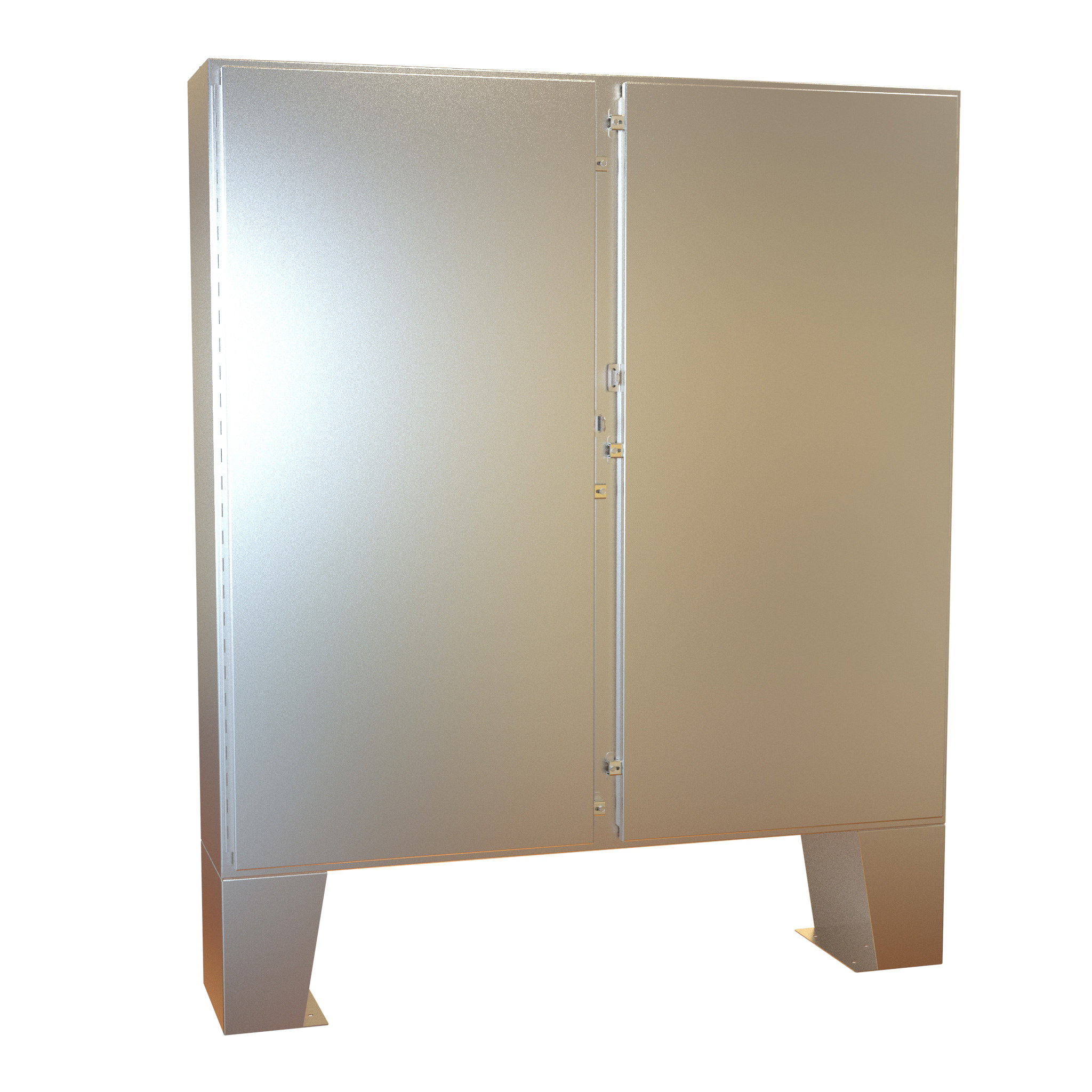

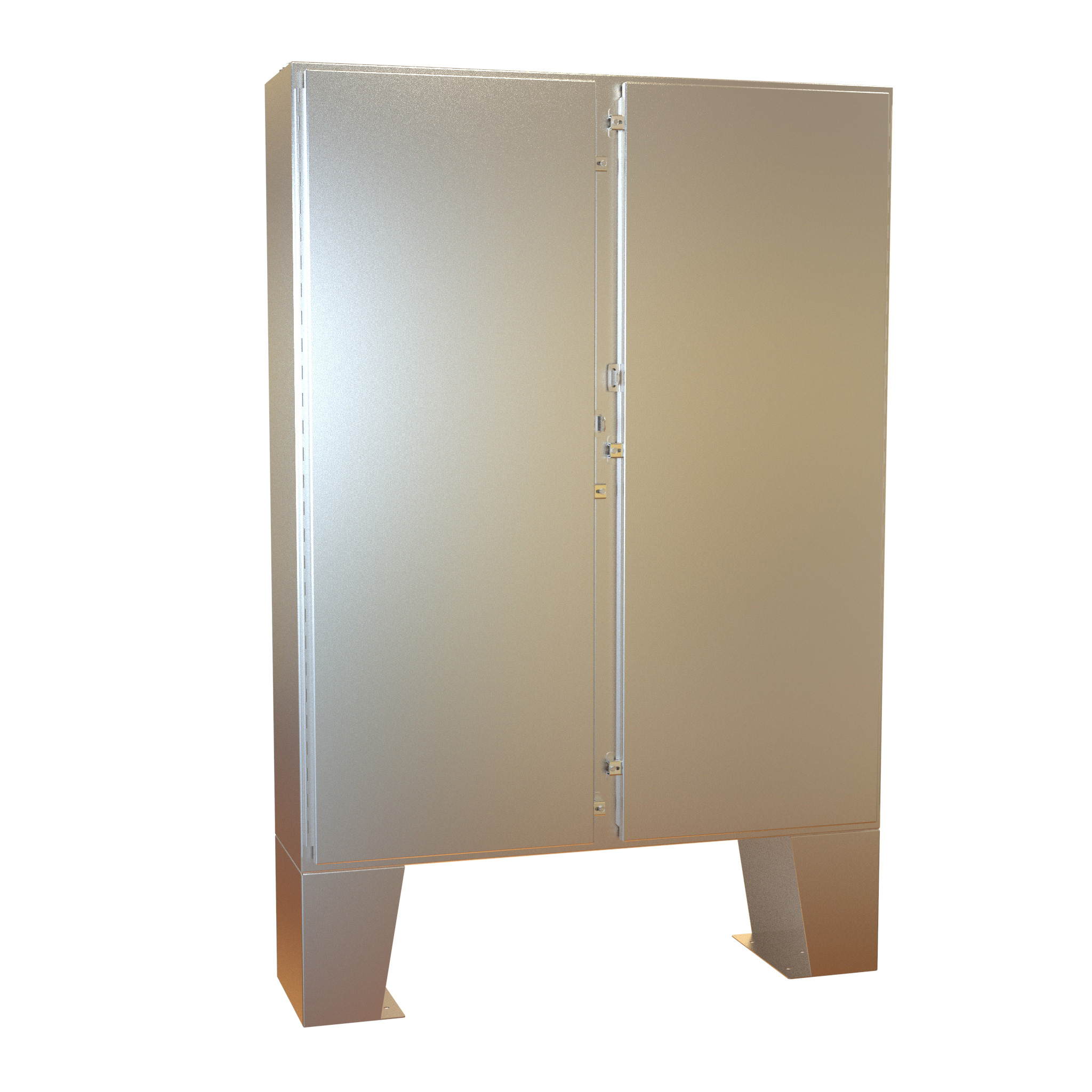

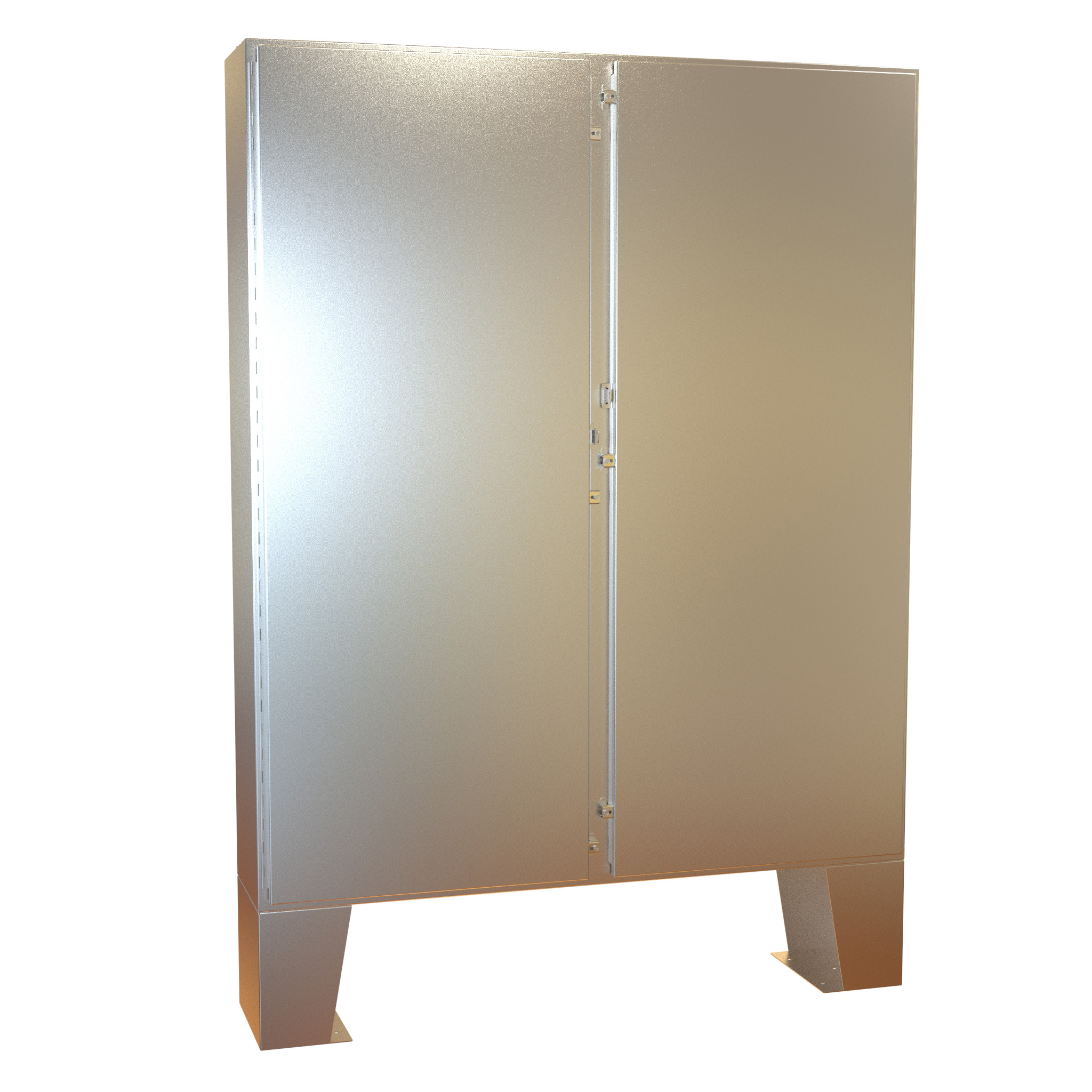

Type 4X Stainless Steel Two Door Floormount Enclosure 1422 N4 SS Series

Application

• Designed to house electrical, electronic, hydraulic or pneumatic controls and instruments.
• Provides protection where equipment may be hosed down or otherwise be very wet, or in specific applications where corrosion is a serious problem.

Standards

• UL 508A Type 3R, 4, 4X, and 12
• CSA Type 3R, 4, 4X, and 12
• Complies with
  • NEMA Type 3R, 4, 4X, 12 and 13
  • IEC 60529, IP66

Construction

• Formed 12 gauge 304 or 316 stainless steel.
• Smooth, continuously welded seams without knockouts, cutouts or holes.
• Body stiffeners are provided in the larger enclosures for extra rigidity.
• Heavy duty stainless steel lifting eyebolts are provided with reinforcing support angles.
• Center post is removable for easy installation of the inner panel.
• Formed lip on door and top of enclosure opening exclude flowing liquids and contaminants.
• Continuously hinged doors may be removed by pulling the stainless steel hinge pin.
• Doors are secured with heavy duty stainless steel clamps.
• Provision for padlocking.
• 12" floor stands are welded to the enclosure.
• Seamless poured-in place gasket.
• Panel supports are provided for easy panel installation.
• Collar studs are provided for mount­ing inner panels.
• A bonding stud is provided on the door and a grounding stud is provided in the enclosure for each door.
• A literature pocket is provided.

Finish

• Cover and enclosure are natural stainless steel with a smooth brushed finish.
• Removable 10 gauge inner panel is finished in white powder coating.

Accesorios

• Additional Inner Panels
• Door Stop Kit
• Barrier Kits for Type 4 Floormount
• Drip Shield Kit
• Door Clamping Hardware - Heavy Duty
• Wallmount Quick Release Clamp
• Window Kits
• Climate Control
• Lighting
• General Accessories
