Application
- Designed to enclose and protect multiple wiring junctions from dirt, dust, oil and water.
Standards
- UL 870 Type 1, 12, 4
- CSA Type 1, 12, 4
- Complies with
- NEMA Type 12, 4
- IEC 60529, IP66
Construction
- Formed 14 gauge steel.
- Smooth continuously welded seams.

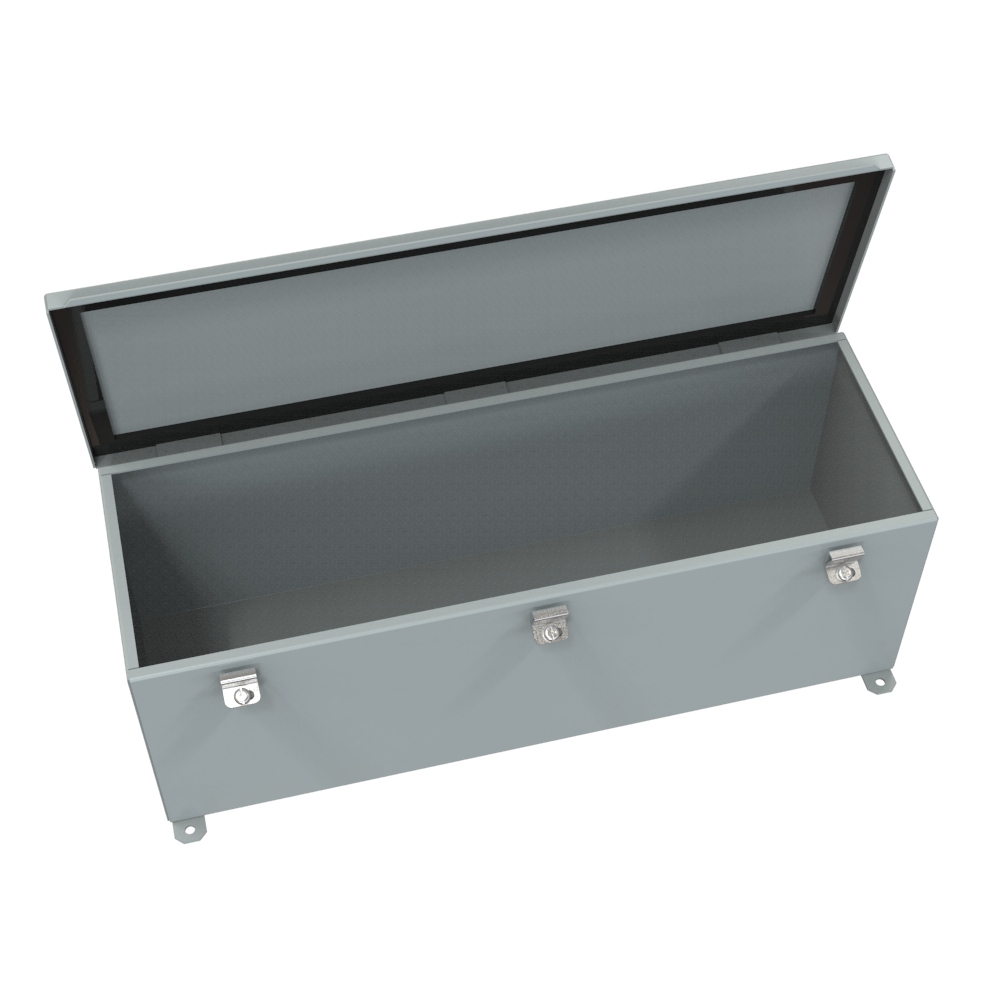

- Butt hinged cover is secured with easily operated stainless steel screw clamps.
- Oil resistant gaskets are permanently secured.
- 12 gauge external mounting feet are welded to the back.
Finish
- Troughs and covers are finished in ANSI 61 gray powder coating.
Detalles de la pieza
Haga clic en Número de pieza, más abajo, para obtener más detalles (por ejemplo, dibujos del producto, instrucciones de montaje, peso de envío).
Unidades mostradas: inch. Cambia de unidad: mm
| Enclosure | |||
|---|---|---|---|
| Part No. | H | D | L |
| 1486B12 | 2.50 | 2.50 | 12.00 |
| 1486B18 | 2.50 | 2.50 | 18.00 |
| 1486B24 | 2.50 | 2.50 | 24.00 |
| 1486B30 | 2.50 | 2.50 | 30.00 |
| 1486B36 | 2.50 | 2.50 | 36.00 |
| 1486B48 | 2.50 | 2.50 | 48.00 |
| 1486B60 | 2.50 | 2.50 | 60.00 |
| 1486B72 | 2.50 | 2.50 | 72.00 |
| 1486C12 | 4.00 | 4.00 | 12.00 |
| 1486C18 | 4.00 | 4.00 | 18.00 |
| 1486C24 | 4.00 | 4.00 | 24.00 |
| 1486C30 | 4.00 | 4.00 | 30.00 |
| 1486C36 | 4.00 | 4.00 | 36.00 |
| 1486C48 | 4.00 | 4.00 | 48.00 |
| 1486C60 | 4.00 | 4.00 | 60.00 |
| 1486C72 | 4.00 | 4.00 | 72.00 |
| 1486D12 | 6.00 | 6.00 | 12.00 |
| 1486D18 | 6.00 | 6.00 | 18.00 |
| 1486D24 | 6.00 | 6.00 | 24.00 |
| 1486D30 | 6.00 | 6.00 | 30.00 |
| 1486D36 | 6.00 | 6.00 | 36.00 |
| 1486D48 | 6.00 | 6.00 | 48.00 |
| 1486D60 | 6.00 | 6.00 | 60.00 |
| 1486D72 | 6.00 | 6.00 | 72.00 |
| 1486E12 | 8.00 | 8.00 | 12.00 |
| 1486E24 | 8.00 | 8.00 | 24.00 |
| 1486E36 | 8.00 | 8.00 | 36.00 |
| 1486E48 | 8.00 | 8.00 | 48.00 |
| 1486E60 | 8.00 | 8.00 | 60.00 |
| 1486G24 | 12.00 | 12.00 | 24.00 |
| 1486G36 | 12.00 | 12.00 | 36.00 |
| 1486G48 | 12.00 | 12.00 | 48.00 |
| 1486G60 | 12.00 | 12.00 | 60.00 |
