| Part Attributes | |
|---|---|
| Part Number | 1551WXBK |
| Series | Watertight Polycarbonate Miniature Enclosures (1551W Serie) |
| Short Description | 80x80x22mm PC W/GASK BK |

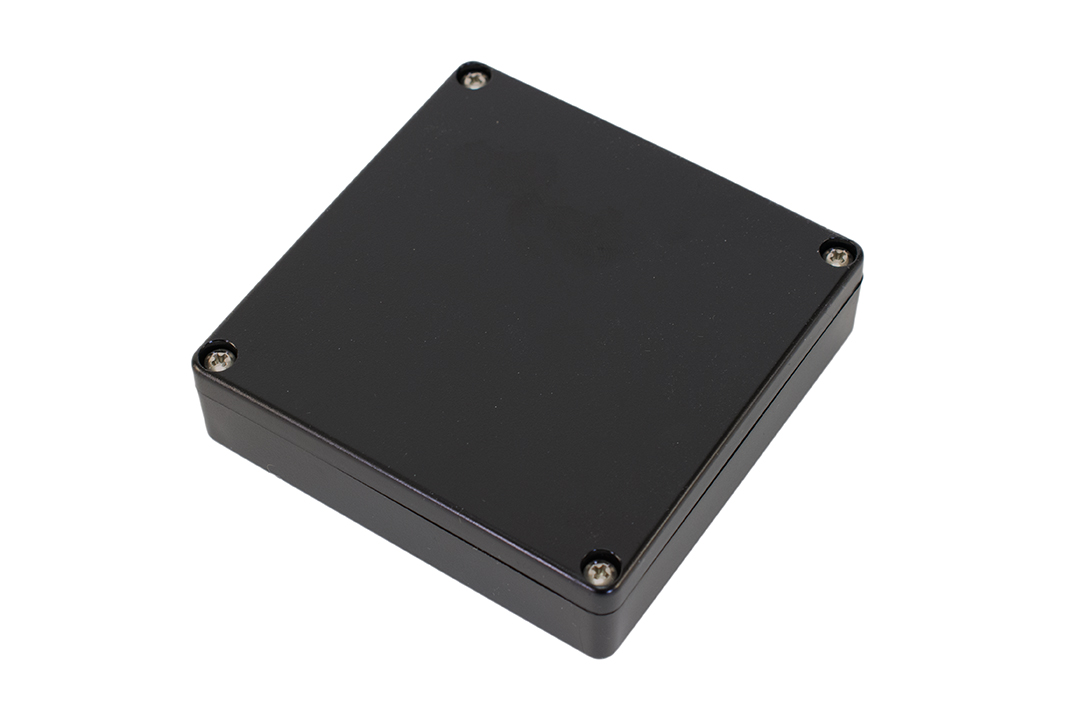

| Long Description | Watertight plastic enclosure |
| Size L x W x H |
3.15 in x 3.15 in x 0.87 in (80 mm x 80 mm x 22 mm) |
| Shipping Weight | 0.12 lbs (0.05 kg) |
| UNSPSC | 39121301 |
| UPC | 623980173733 |
| REACH Compliant | Yes (more info...) |
| RoHS Compliant | Yes (more info...) |
| Packaging Type | shrink wrap |
| Material | Polycarbonate |
| Color | Black |
| Flame Rating | UL94 V-0 |
| IP Rating | IP68 |
| Product Category | Enclosures |
| Type | Miniature, watertight |
| Max. P.C. Board Length (mm) | 74.5 |
| Max. P.C. Board Width (mm) | 74.5 |
| Replacement Parts and Accessories | |
|---|---|

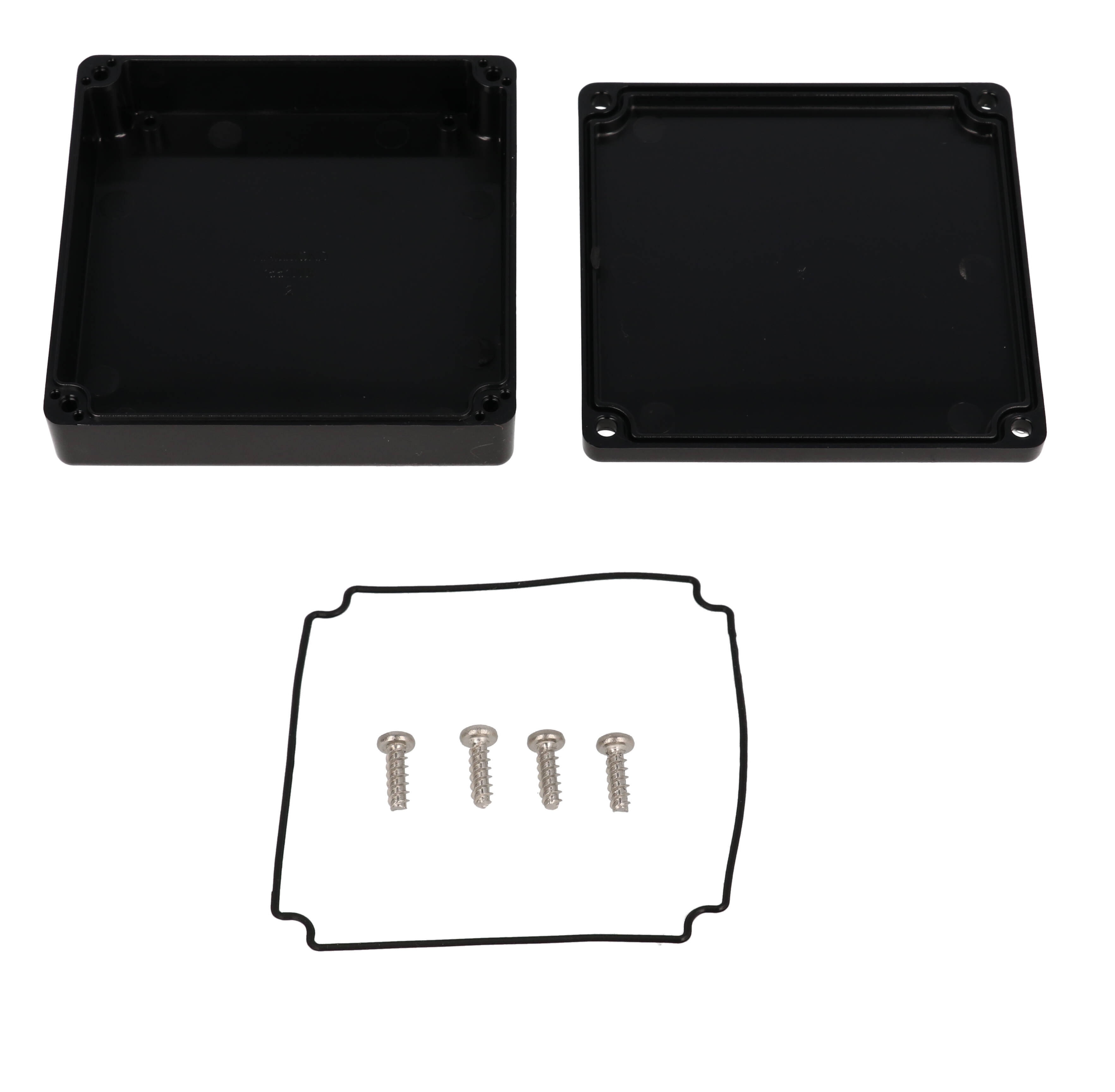

| 1551WXGASKET | Replacement gaskets for 1551W series, 2-pack (Replacement Gasket) |
| 1553WTS100 | 100-pack of screws, #2x3/16 plastite P.C. board mounting, zinc plated steel (PCB Screws) |
| SC509-50 | hardware - package of 50 replacement screws (Lid Screws) |
