| Part Attributes | |
|---|---|

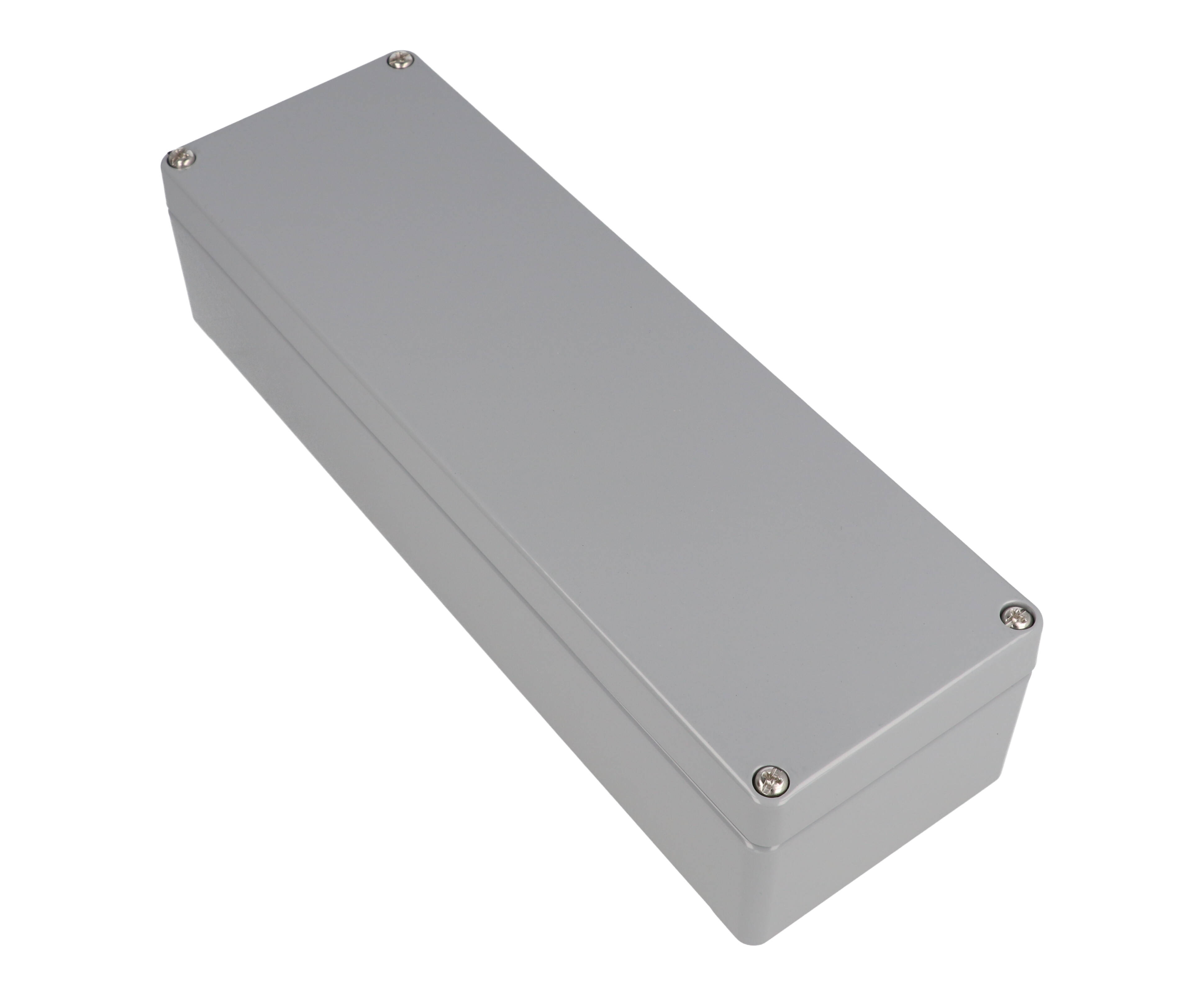

| Part Number | 1590Z140GY |
| Series | Type 4X/ 6P Diecast Aluminum Enclosures (1590Z Serie) |
| Short Description | 1590Z140 PAINTED RAL7001 GREY |
| Long Description | enclosure - diecast |
| Size L x W x H |
9.85 in x 3.13 in x 2.24 in (250 mm x 80 mm x 57 mm) |
| Shipping Weight | 1.67 lbs (0.76 kg) |
| UNSPSC | 39121301 |
| UPC | 623980133126 |
| REACH Compliant | Yes (more info...) |
| RoHS Compliant | Yes (more info...) |
| Packaging Type | shrink wrap |
| Material | Aluminum (Die-Cast Alloy) |
| Color | Gray |
| IP Rating | IP68 |
| Product Category | Enclosures |
| Type | Thick wall, water-tight |
| NEMA Rating | 4, 4X, 6, 6P, 12 & 13 |
| Max. P.C. Board Length (mm) | 67.4 |
| Max. P.C. Board Width (mm) | 238.9 |
| Replacement Parts and Accessories | |
|---|---|
| 1590Z140G | replacement gasket for 1590Z140 enclosures (Replacement Gasket) |
| 1590Z140PL | inner mounting panel for 1590Z140 enclosures (Inner Panel) |
| SC576-50 | M4 x 20 panhead screw - 50 pack (Lid Screws) |
| SCGM6-20 | hardware - replacement M6 ground screws for 1590Z series (Panel Screws) |
