Nota: Esta pieza ha sido descatalogada como pieza en stock. La información es sólo para referencia. Reemplazo: Serie NWM
Drawing Downloads
| Additional Downloads |
|---|
| Specification Sheet |
| BUL10020 - MISC - ENCLOSURE DETAILS |
| BUL10136 - ECLIPSE - ASSEMBLY |
| CE Declaration |
| Part Attributes | |
|---|---|
| Part Number | EN4DH162424WLG |
| Series | UL and NEMA Type 4, 12 Double-Hinged Wall Mount Cabinet (EN4DH Serie) |
| Short Description | 7U 24D NEMA SWINGOUT WNDOW |

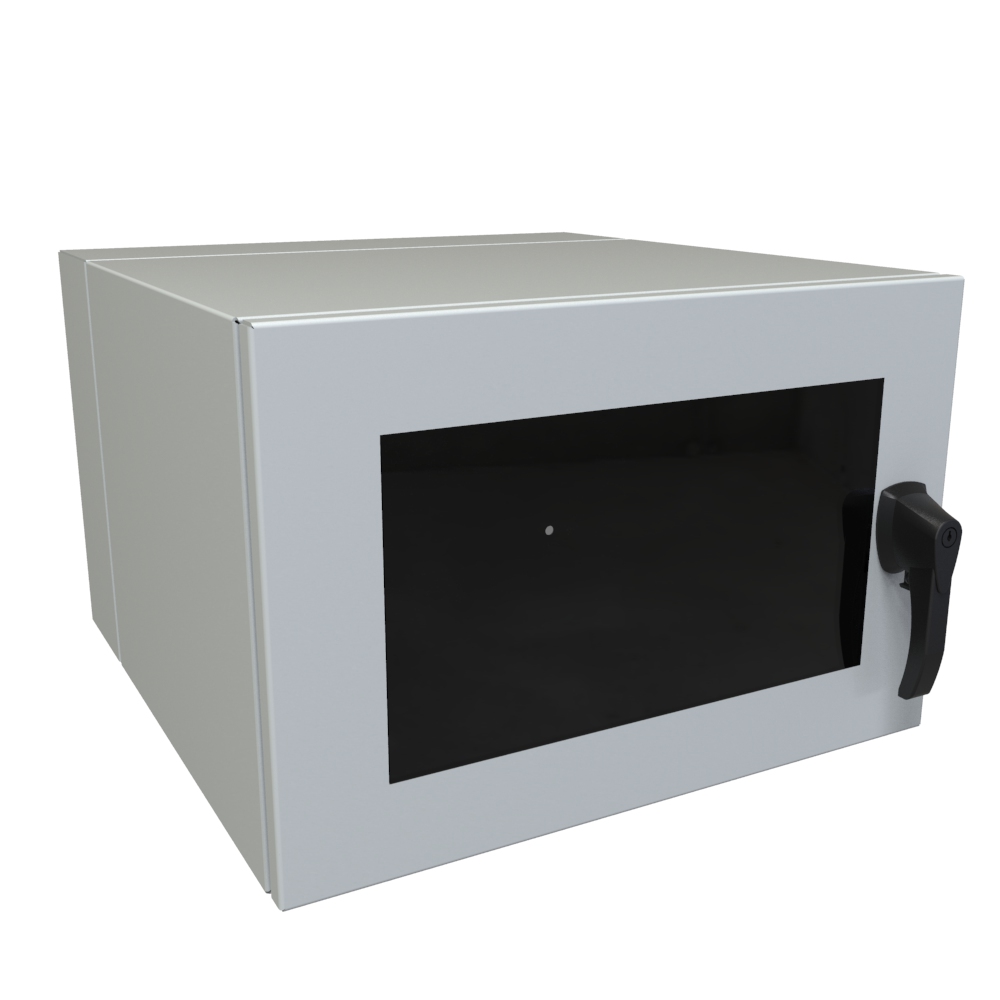

| Long Description | 7U 24W 24D N4/12 Eclipse Swing-Out Wall Mount Cabinet w/ Window Door |
| Size H x W x D |
16 in x 24 in x 24 in (406 mm x 610 mm x 610 mm) |
| Shipping Weight | 90 lbs (40.82 kg) |
| UNSPSC | 43223306 |
| UPC | 623980163239 |
| UL File # | E65324 |
| CSA Cert. # | LR21001 |
| REACH Compliant | Yes (more info...) |
| RoHS Compliant | Yes (more info...) |
| Rack Units | 7 |
| Rack Type | Wall Mount |
| Paint Color | RAL7035 Light Gray |
| Rail Type | Tapped 10-32 |
