Drawing Downloads
| Additional Downloads |
|---|
| Specification Sheet |
| Plastic Chemical Resistance Statement 10-2023 |
| RZ0205 PCB dim (mm).dxf |
| RZ0205 PCB.pdf |
| Part Attributes | |
|---|---|

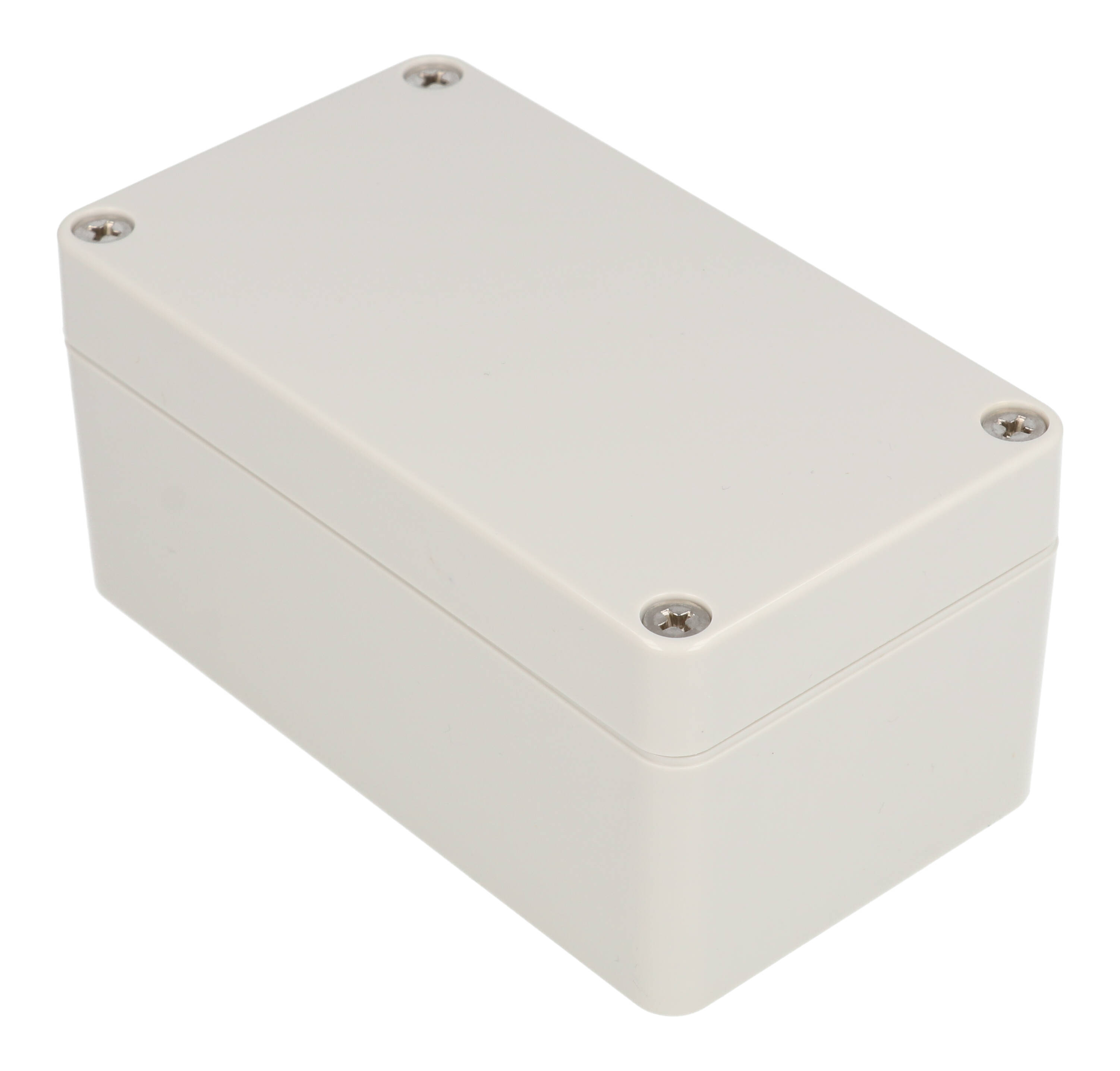

| Part Number | RZ0205 |
| Series | Water-Tight ABS & Polycarbonate Enclosures (RZ Serie) |
| Short Description | POLYCARB WATERTIGHT |
| Size L x W x H |
4.53 in x 2.56 in x 2.17 in (115 mm x 65 mm x 55 mm) |
| Shipping Weight | 0.33 lbs (0.15 kg) |
| UNSPSC | 39121301 |
| UPC | 623980404844 |
| REACH Compliant | Yes (more info...) |
| RoHS Compliant | Yes (more info...) |
| Packaging Type | bag |
| Material | Polycarbonate |
| Color | Light Gray |
| Flame Rating | UL94 V-2 |
| IP Rating | IP65 |
| Product Category | Enclosures |
| Type | Water-tight |
| Max. P.C. Board Length (mm) | 106.87 |
| Max. P.C. Board Width (mm) | 56.87 |

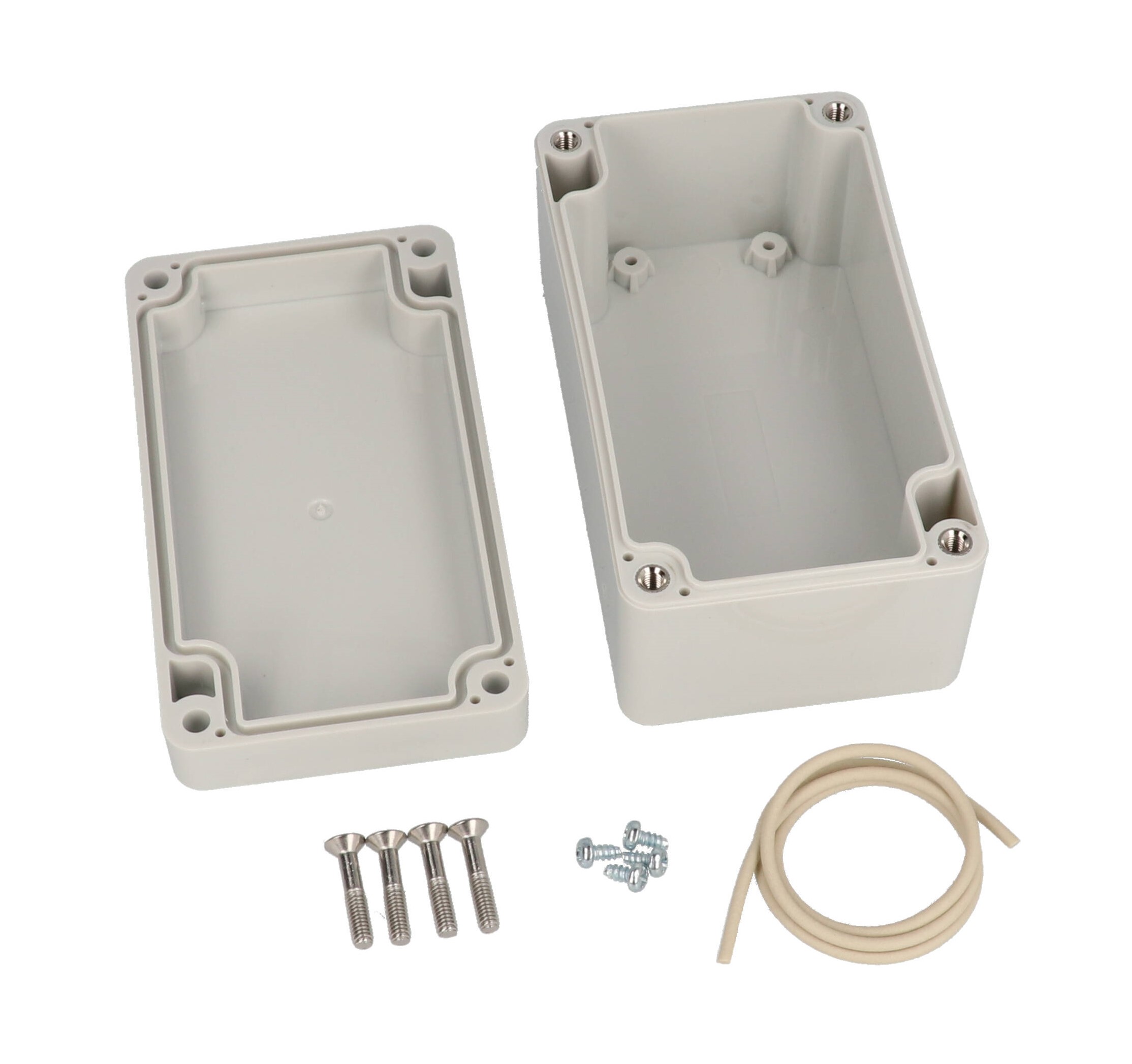

| Replacement Parts and Accessories | |
|---|---|
| SC618-50 | FH M4-0.7 x 20 (Lid Screws) |
| SC622-50 | PN M3 x 6 SELF-TAP (PCB Screws) |
