Bottom Panels Série H1B

Specifically for H1 Cabinet Frames

English | Français

Features

  • Compatible with the H1 cabinet series.
  • 14 gauge steel construction.
  • Encloses cabinets for airflow management.
  • CLPKIT832-6 Cabinet mounting hardware included.
  • Finished in RAL9005 black or RAL9003 white powder paint coat.
    • Complies with the Greenguard guidelines for indoor air quality.
  • TAA-compliant for GSA Schedule purchases.
  • RoHS and REACH compliant.
  • Manufactured in North America.

Galerie

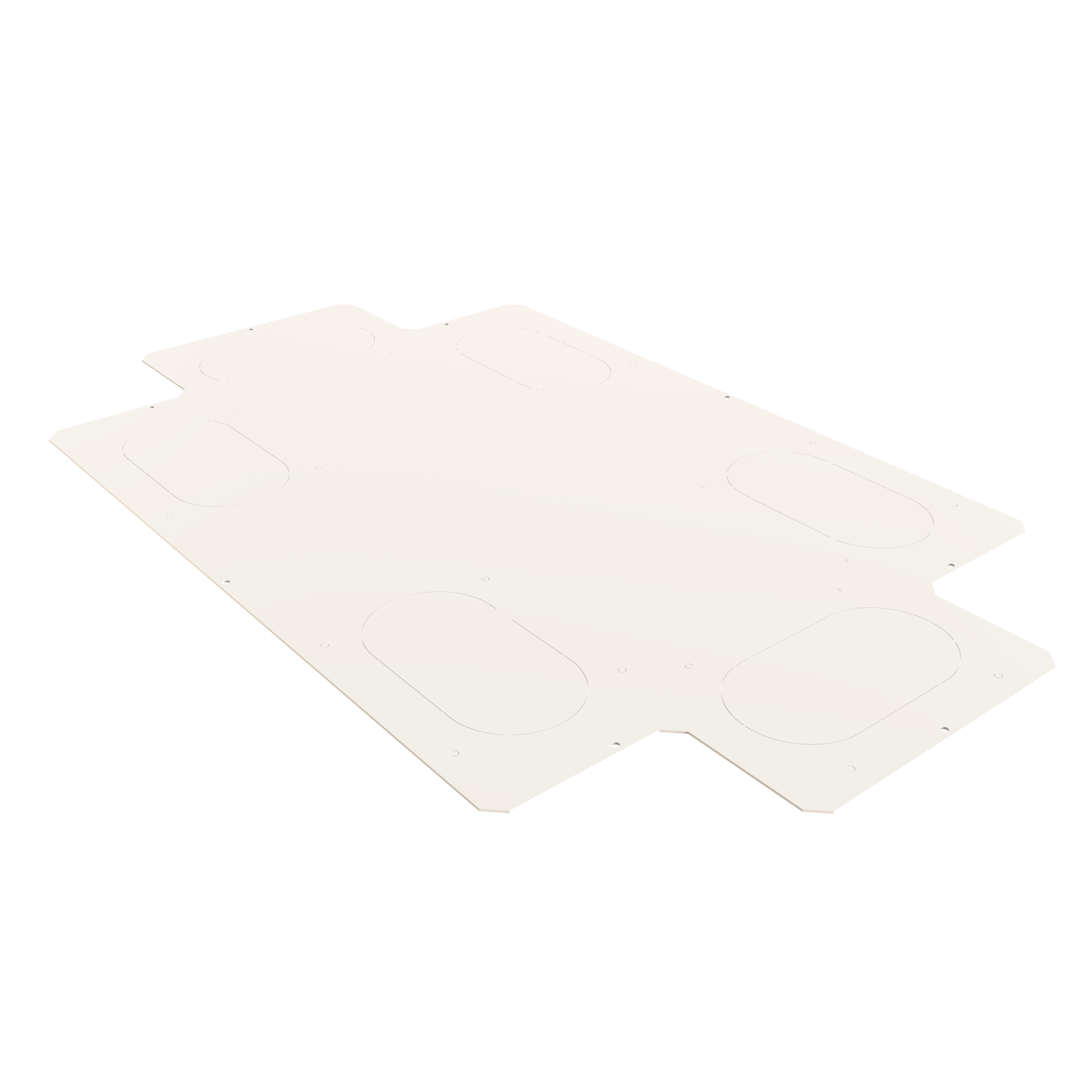

  • H1BS2442WH
  • H1BS2448BK

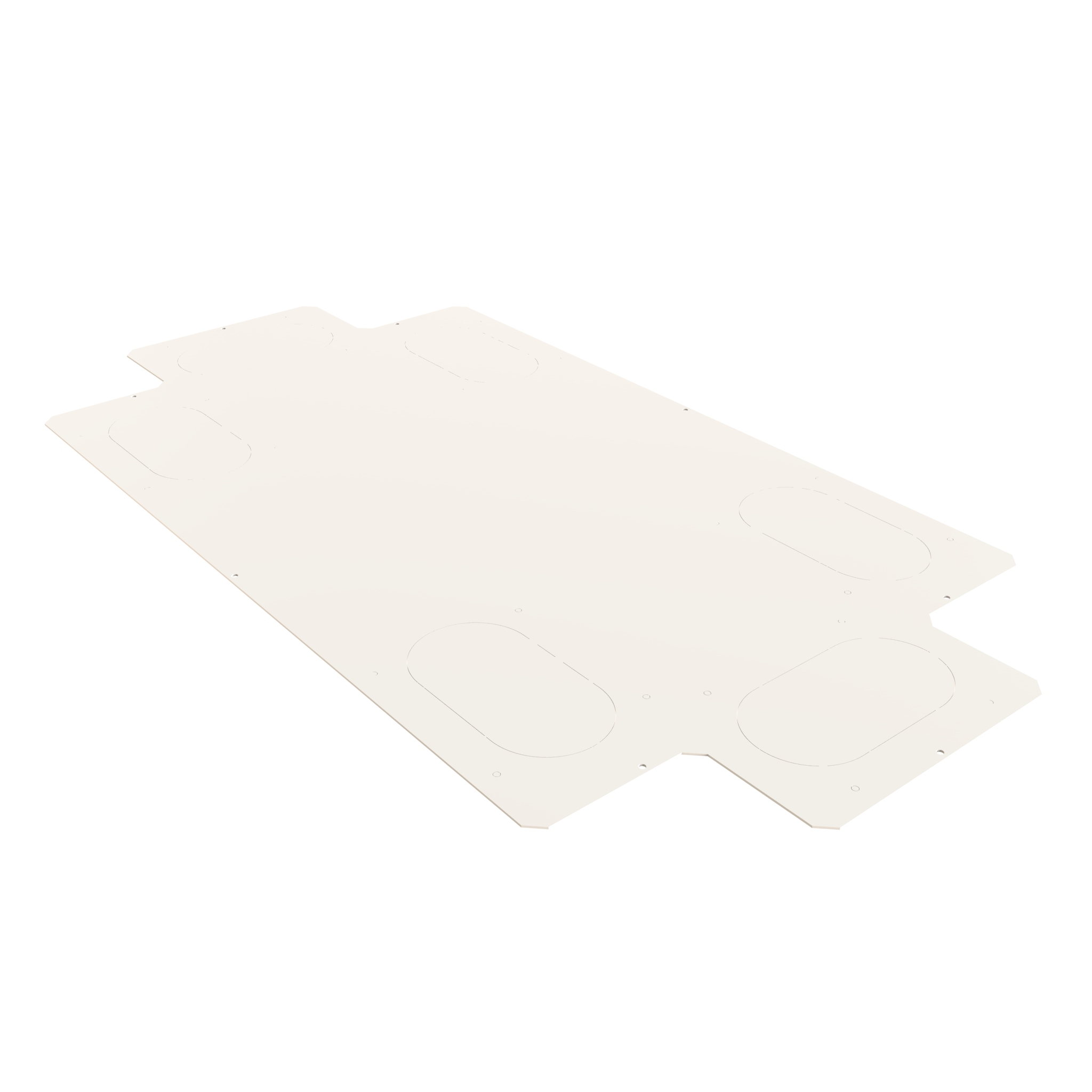

  • H1BS2448WH

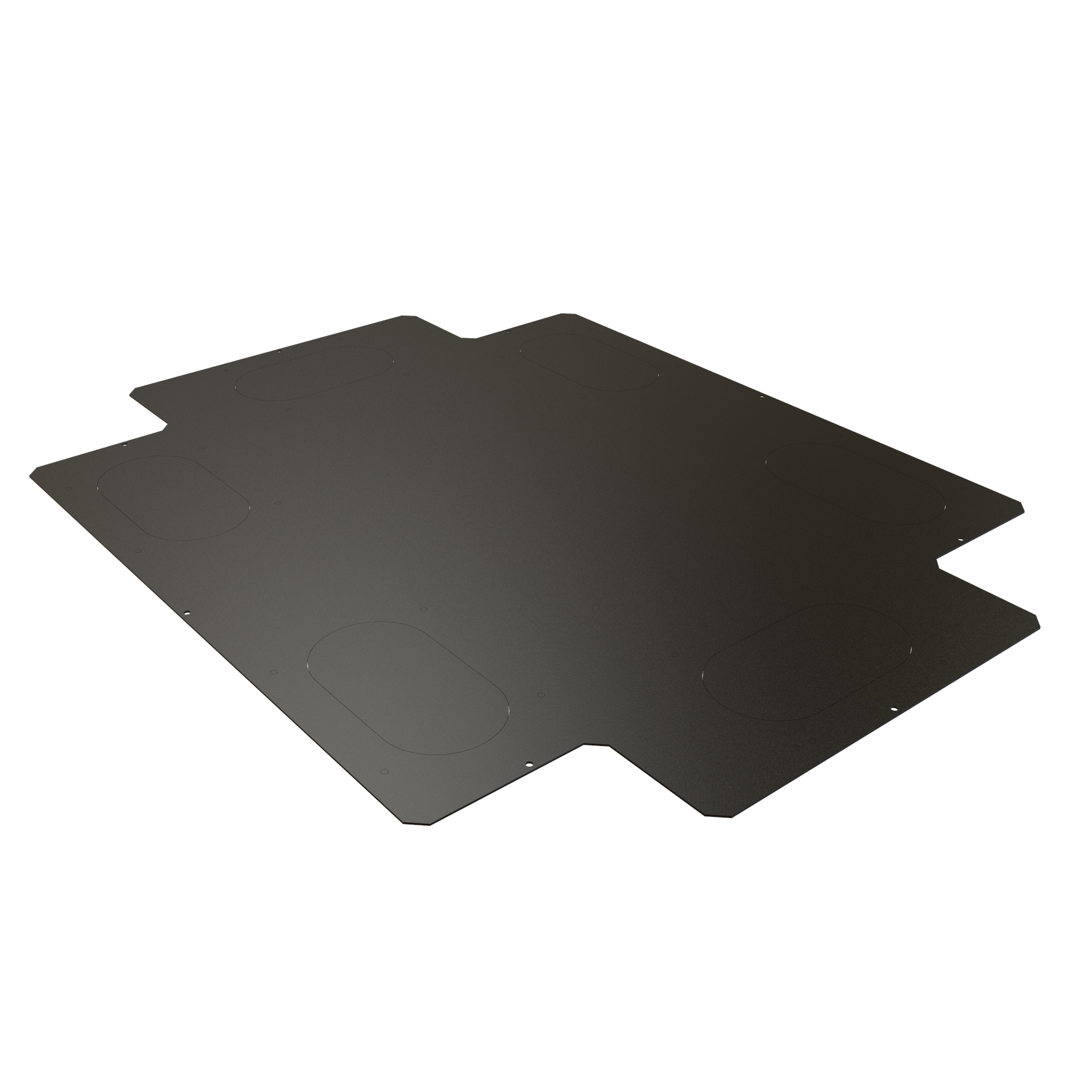

  • H1BS3042BK

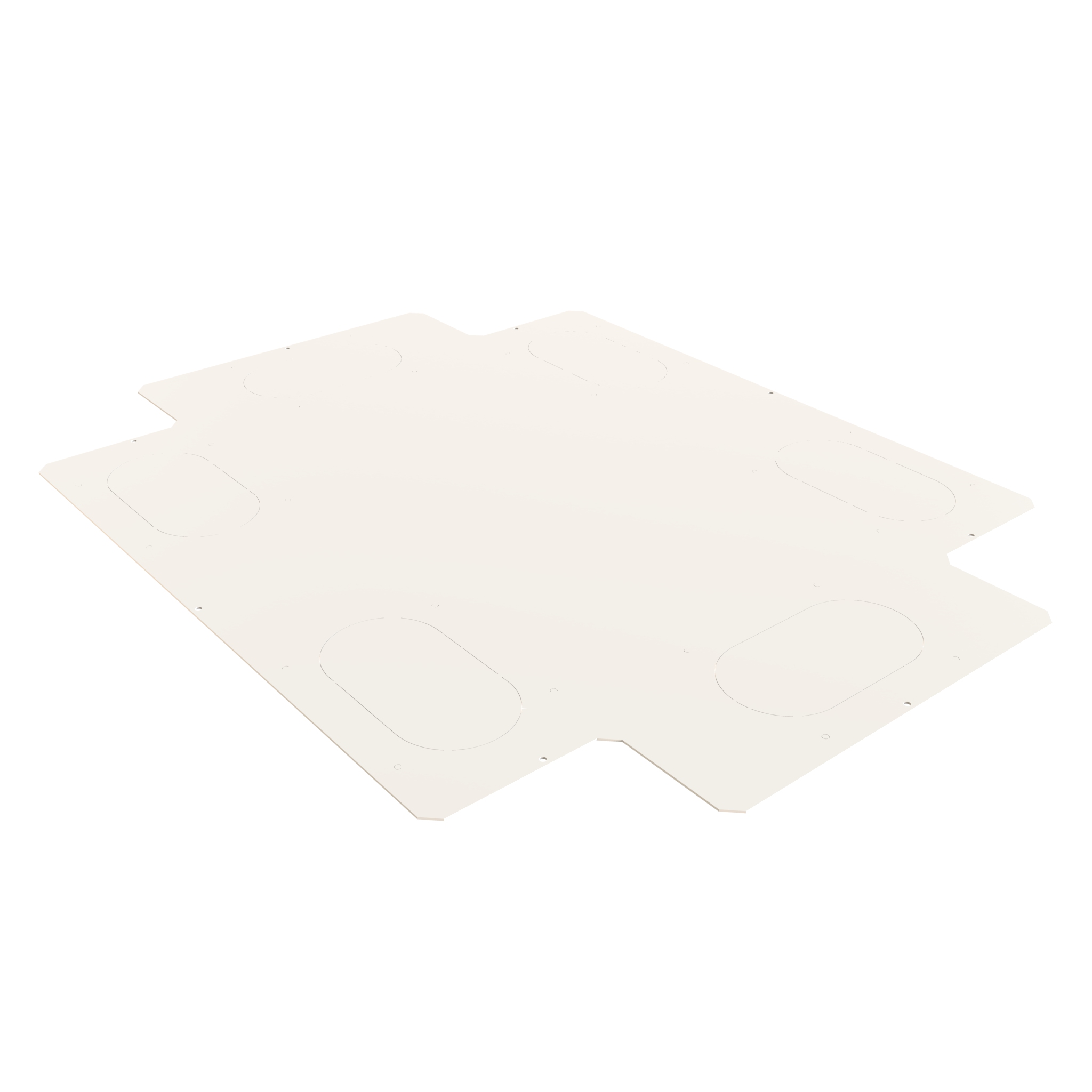

  • H1BS3042WH
  • H1BS3048BK

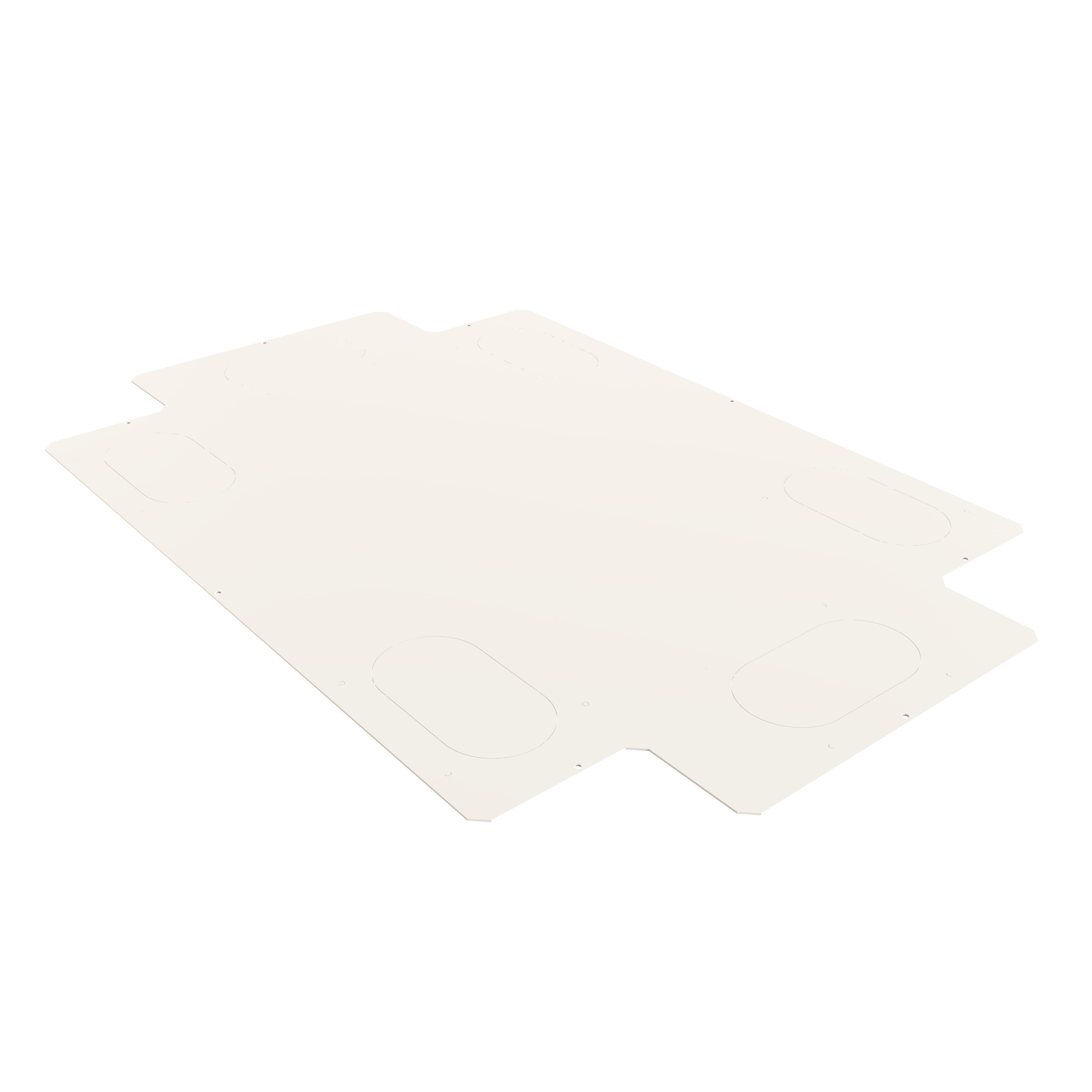

  • H1BS3048WH

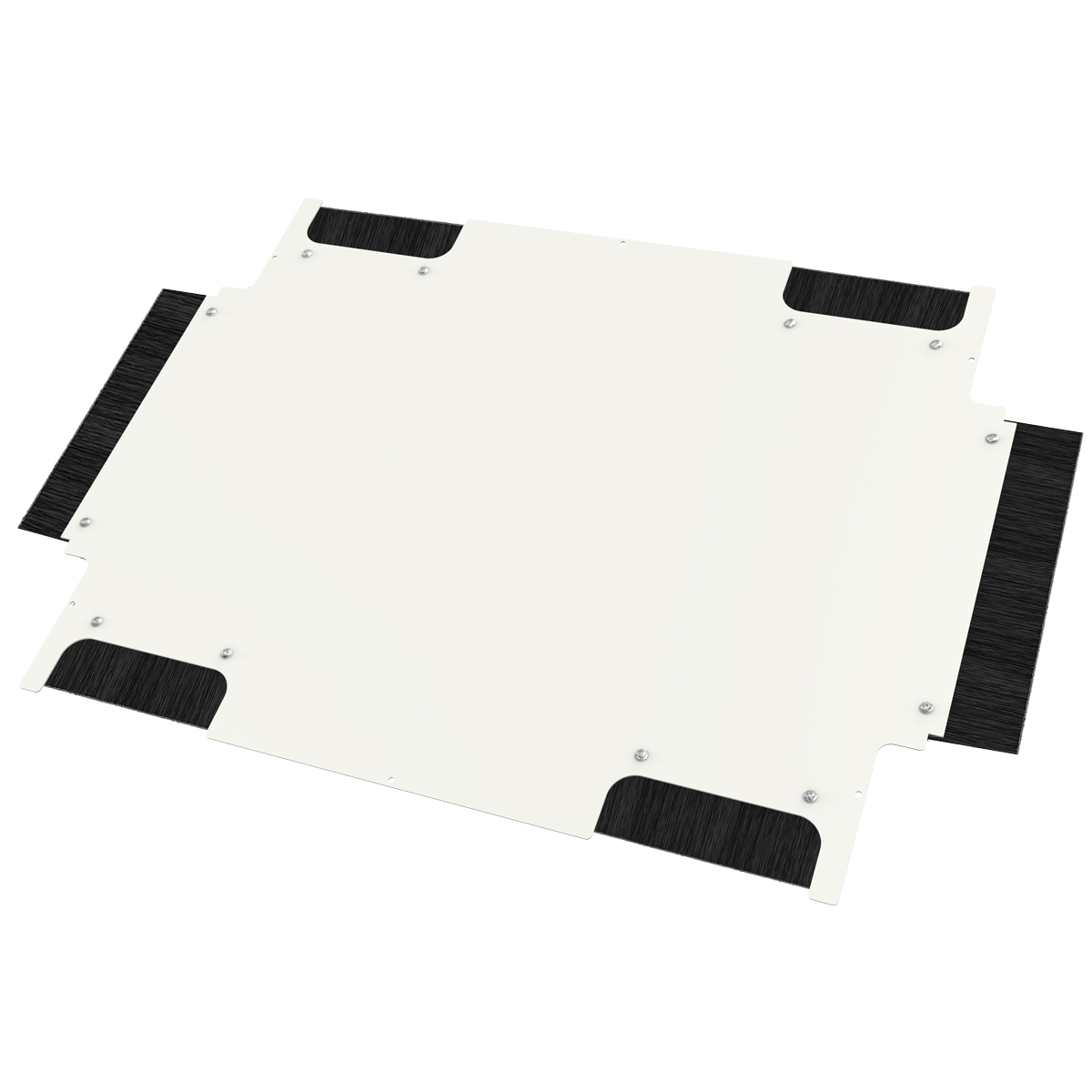

  • H1BB3048WH

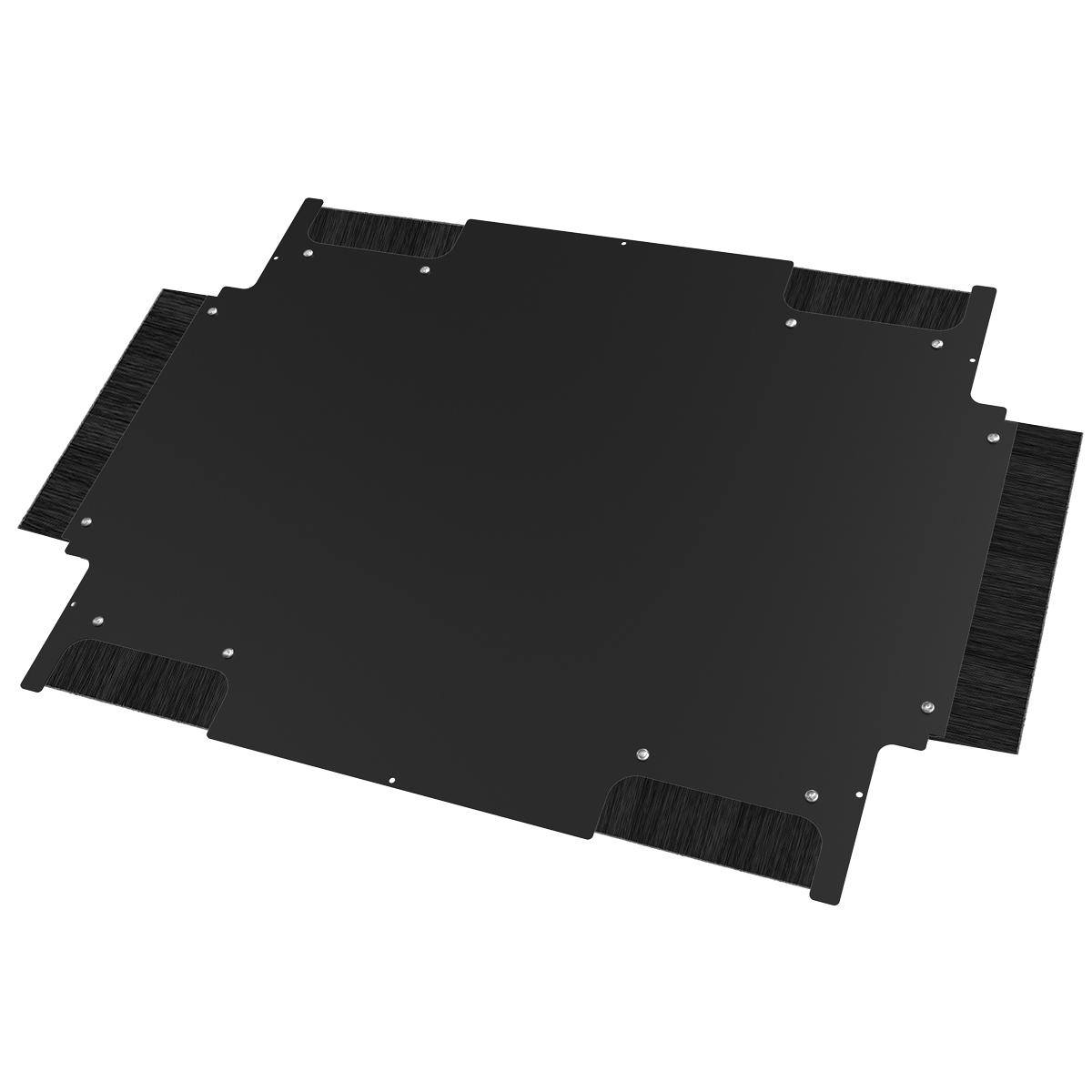

  • H1BB3048BK

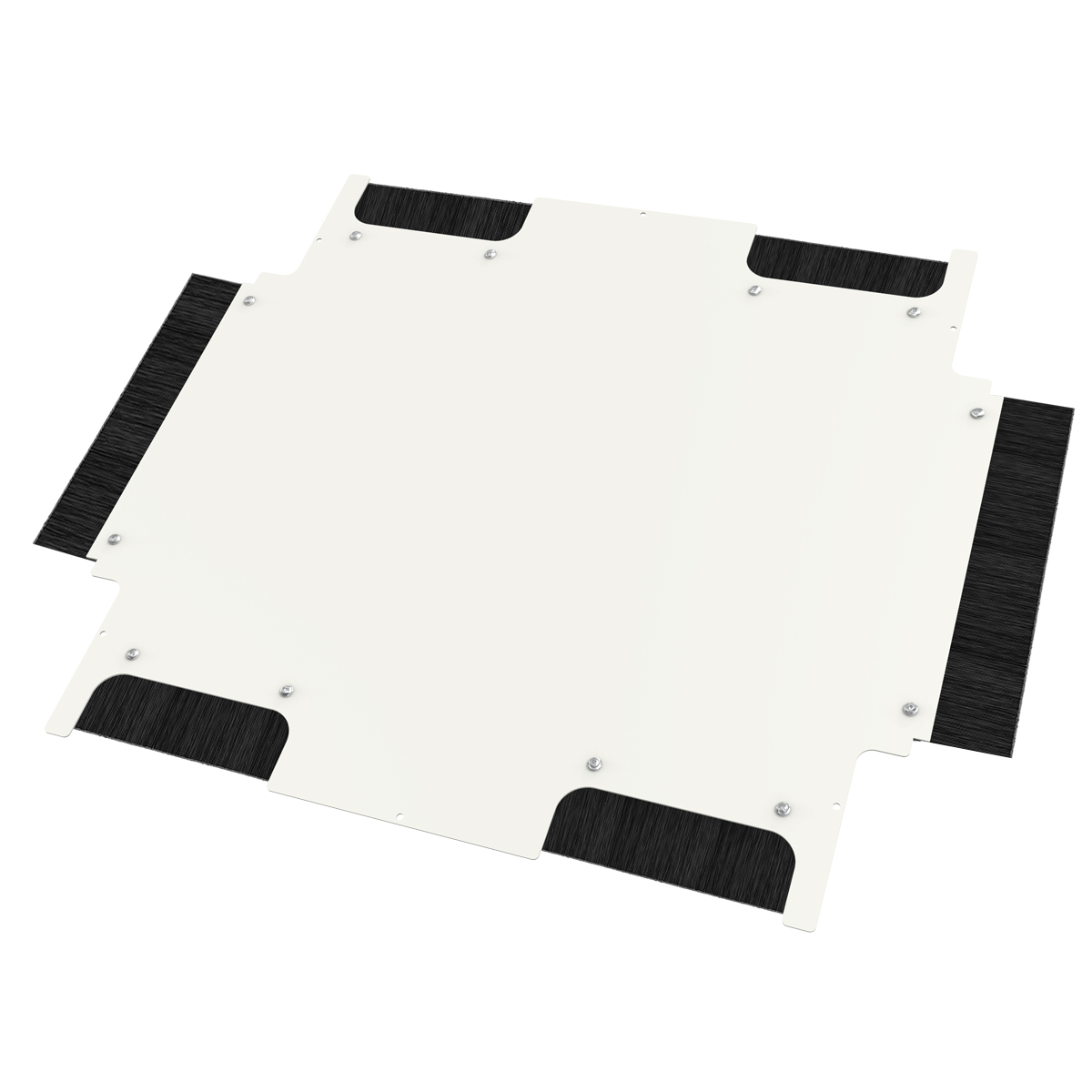

  • H1BB3042WH

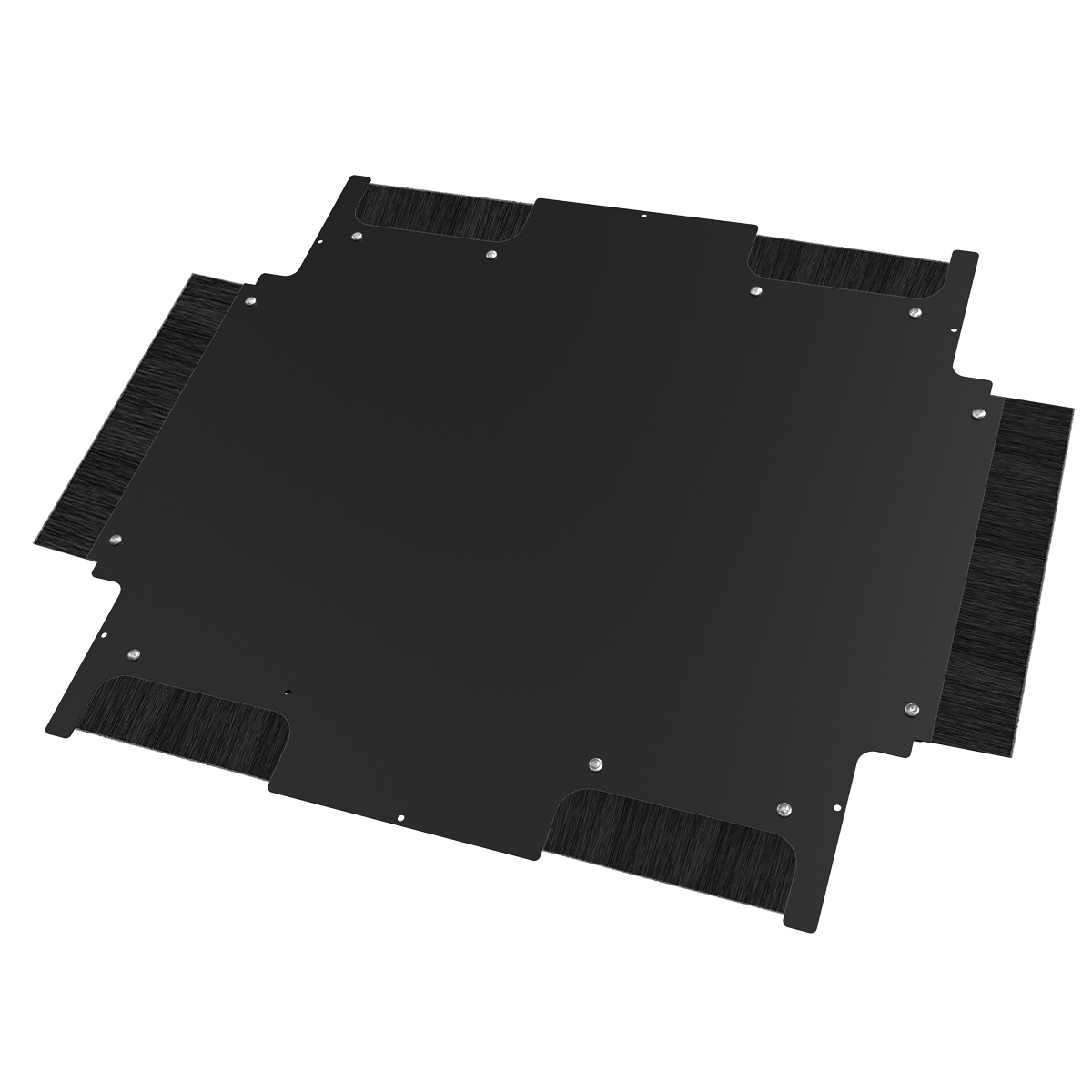

  • H1BB3042BK

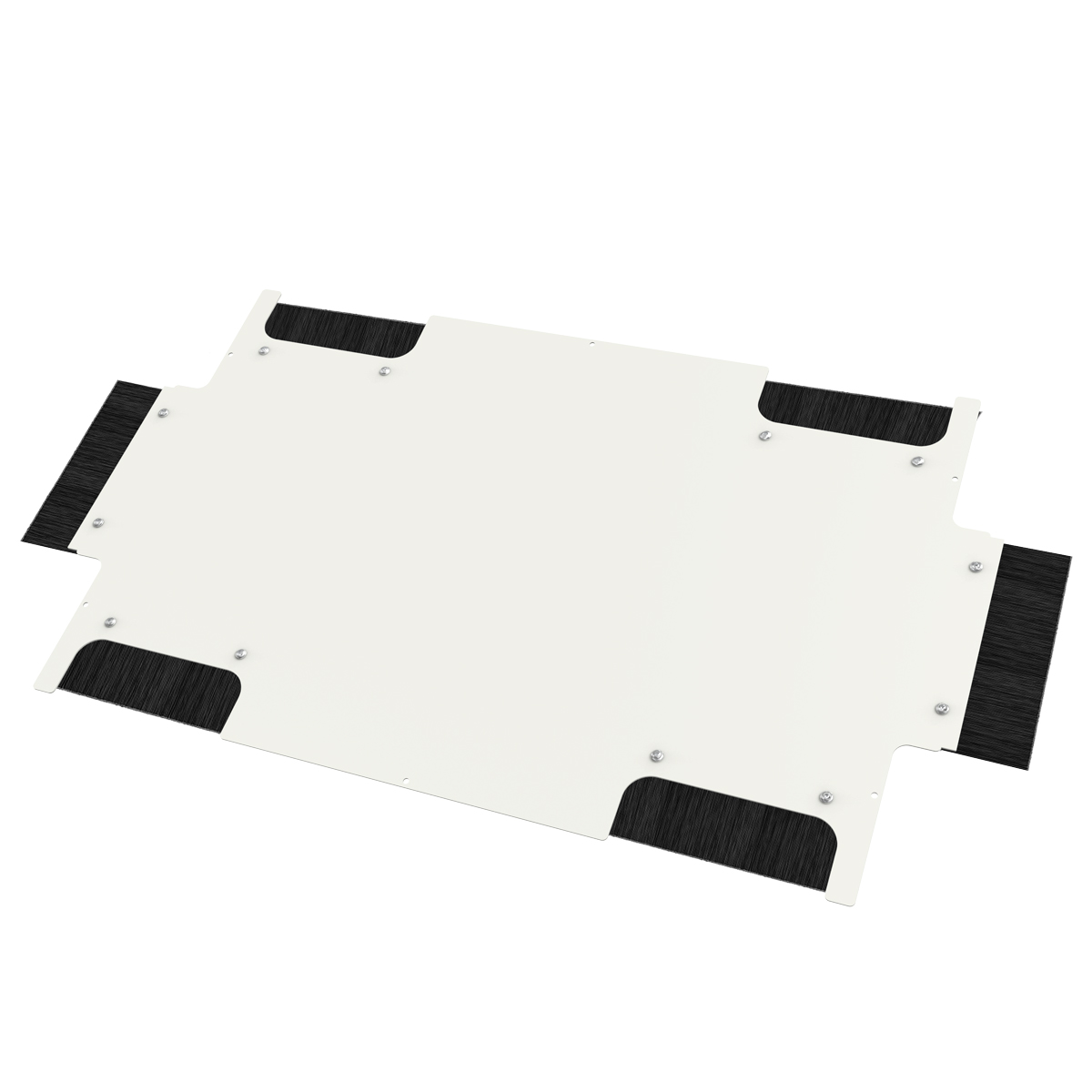

  • H1BB2448WH

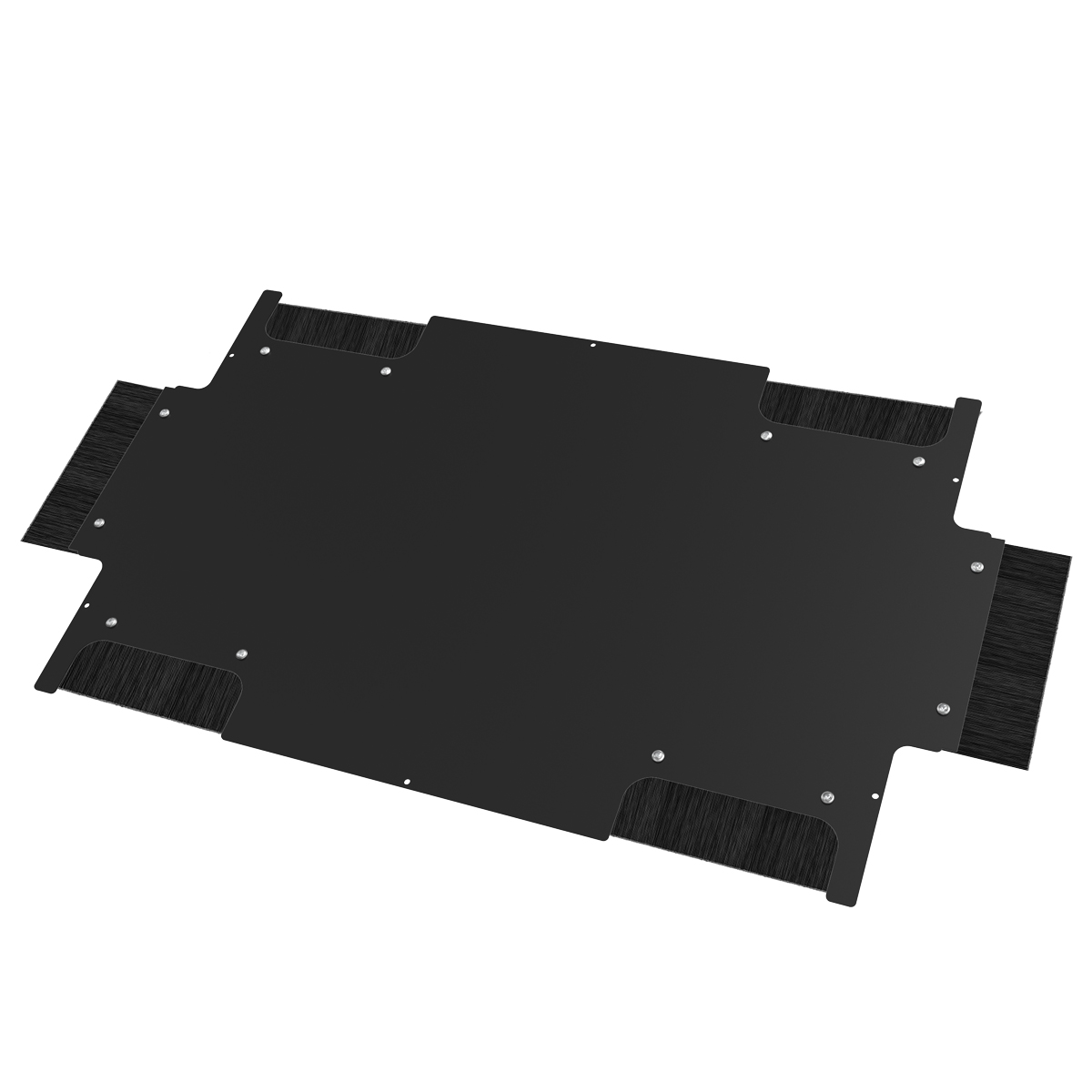

  • H1BB2448BK

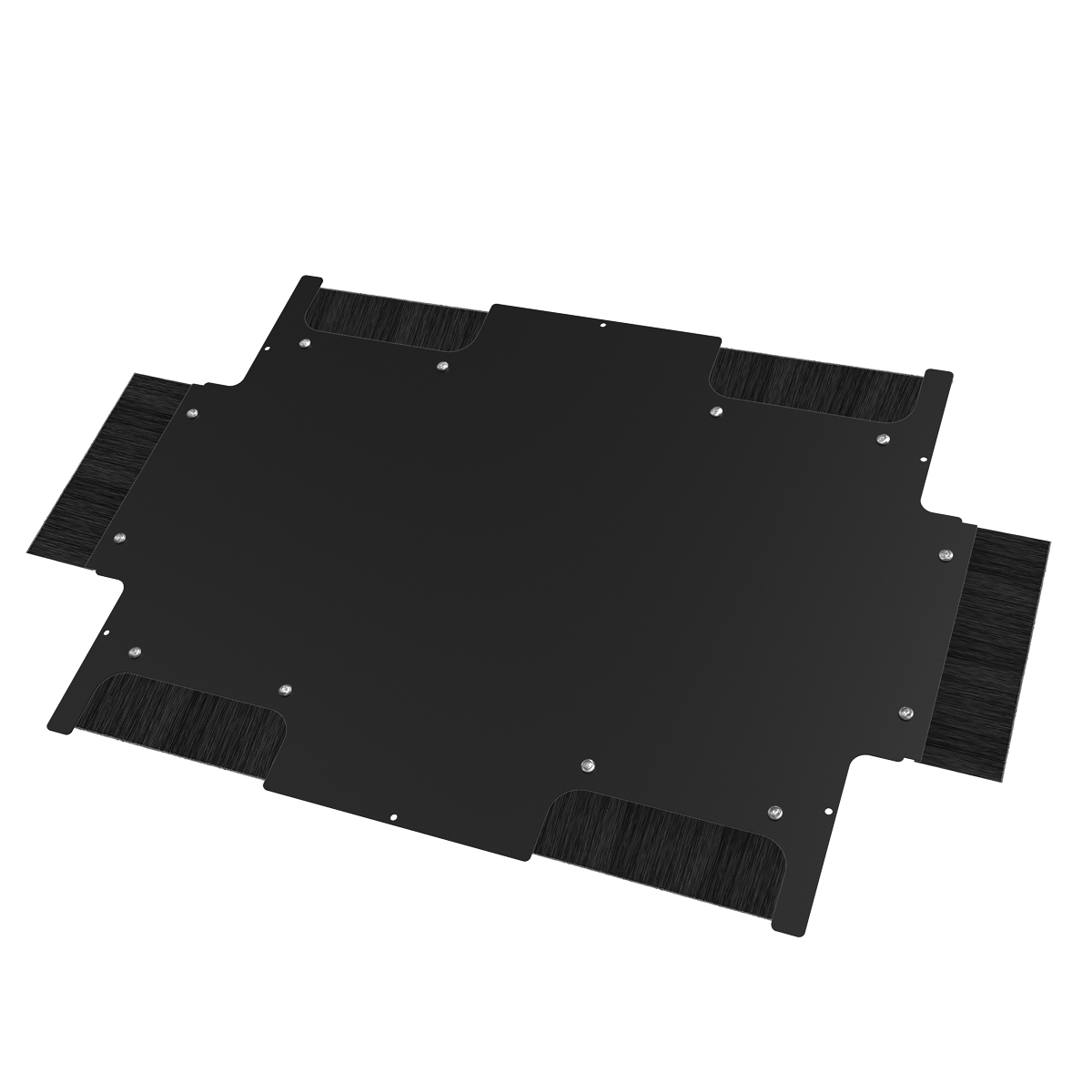

  • H1BB2442BK

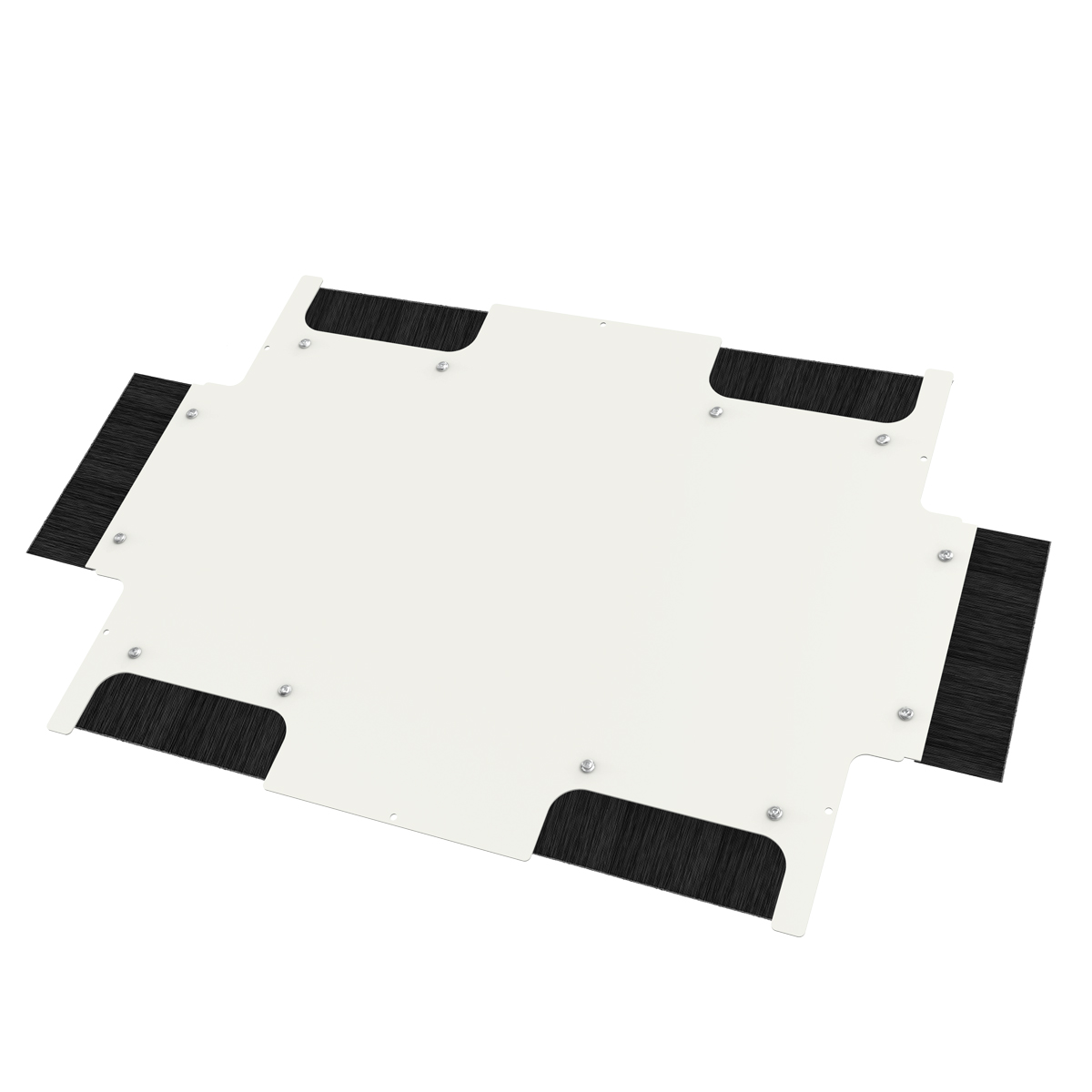

  • H1BB2442WH

Détails de la pièce

Cliquez sur le numéro de pièce pour plus de détails (p. Ex., fichiers CAO, instructions de montage, poids du navire)

Solid Bottom Panel (with knockouts)

Unités présentées: inch. Mettez unités: mm

Part No. Part No. Descriptions Use with Use with
Black White Cabinet Width Cabinet Depth

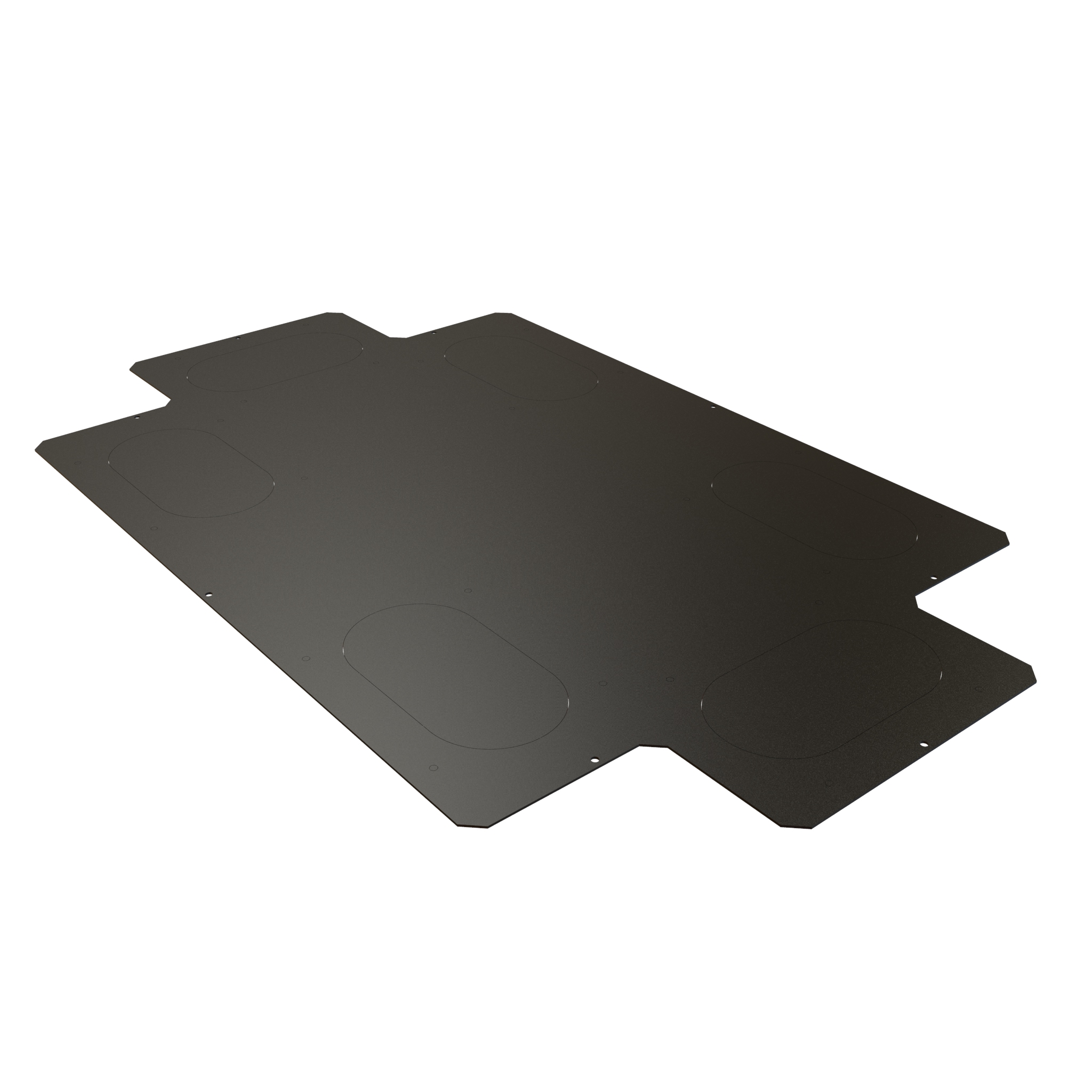

H1BS2442BK H1BS2442WH Solid with cable entry knockouts 24 42
H1BS2448BK H1BS2448WH Solid with cable entry knockouts 24 48
H1BS3042BK H1BS3042WH Solid with cable entry knockouts 30, 31.5 42
H1BS3048BK H1BS3048WH Solid with cable entry knockouts 30, 31.5 48

Brushed Bottom Panel

Unités présentées: inch. Mettez unités: mm

Part No. Part No. Descriptions Use with Use with
Black White Cabinet Width Cabinet Depth
H1BB2442BK H1BB2442WH Brushed with cable entry knockouts 24 42
H1BB2448BK H1BB2448WH Brushed with cable entry knockouts 24 48
H1BB3042BK H1BB3042WH Brushed with cable entry knockouts 30, 31.5 42
H1BB3048BK H1BB3048WH Brushed with cable entry knockouts 30, 31.5 48

What's Inside the Box

Qty Included Description Replacement Part No.
1 Bottom Panel
6 8-32 Clip Nut (Black Oxide Finish) CLPKIT832-6
6 8-32 x 0.5" Machine Screw (Zinc Plated) CLPKIT832-6
