| Part Attributes | |
|---|---|

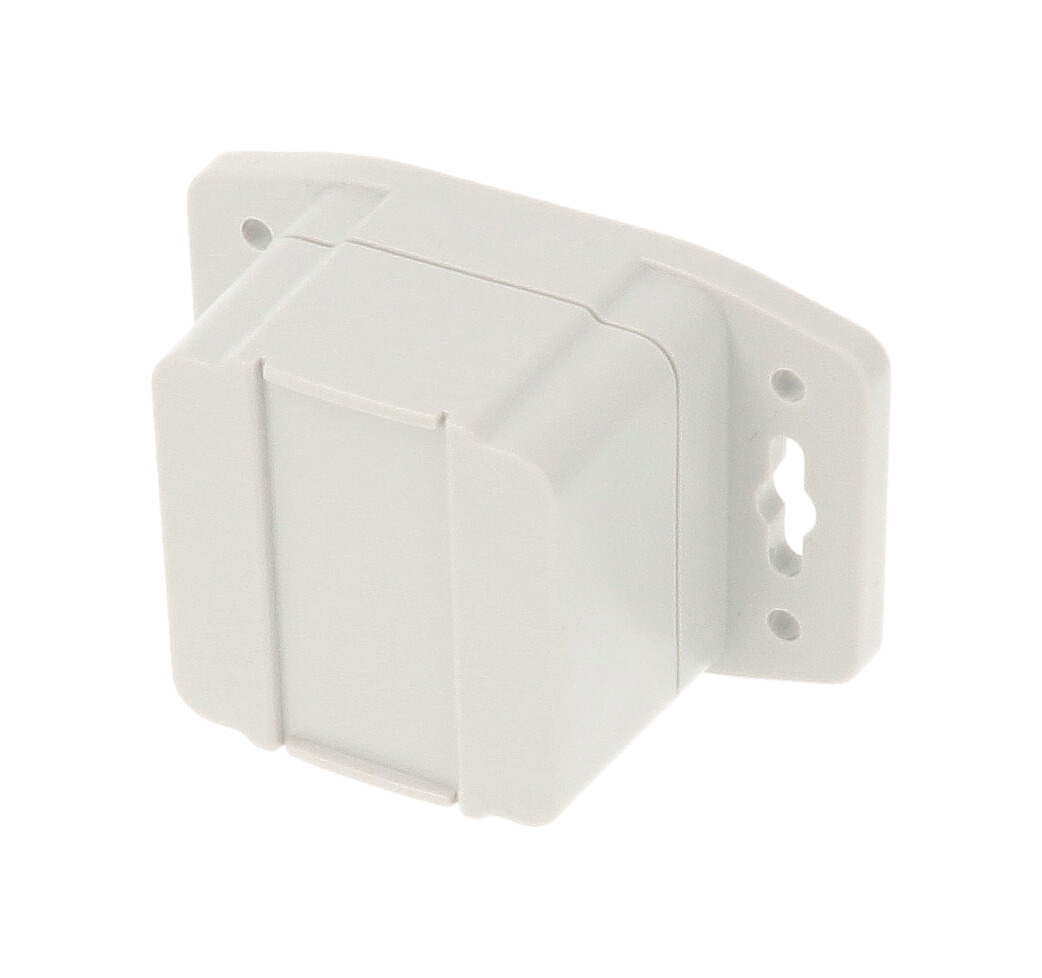

| Part Number | 1555AF22GY |
| Series | Boîtiers de type 4X, 6P (Série 1555F) |
| Short Description | ABS FLANGED BASE NEMA ENCL. |
| Long Description | RAL7035 grey ABS plastic watertight enclosure |
| Size L x W x H |
2.05 in x 1.97 in x 1.57 in (52 mm x 50 mm x 40 mm) |
| Shipping Weight | 0.11 lbs (0.05 kg) |
| UNSPSC | 39121301 |
| UPC | 623980039886 |
| UL File # | E65324 |
| REACH Compliant | Yes (more info...) |
| RoHS Compliant | Yes (more info...) |
| Material | ABS Plastic |
| Color | Light Gray |
| Flame Rating | UL94 HB |
| IP Rating | IP66 |
| Product Category | Enclosures |
| Type | Water-tight |
| Max. P.C. Board Length (mm) | 41 |
| Max. P.C. Board Width (mm) | 40.5 |
| Replacement Parts and Accessories | |
|---|---|
| 1554AGASKET | replacement gaskets for 1554 series, 2-pack (Replacement Gasket) |
| SC576-50 | M4 x 20 panhead screw - 50 pack (Lid Screws) |
