Thick Wall Diecast Aluminum (R101 Series)

ROLEC Logo

Path: Home > Enclosure Index > ROLEC-HAMMOND Aluminum Product Index > Thick Wall > R101 Series

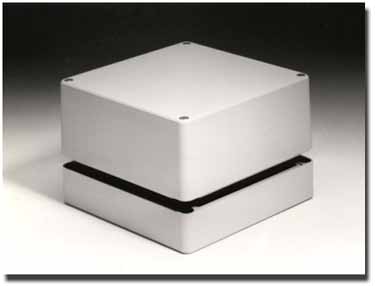

R101 Series Photo

Key Features:

Material - Aluminum die-cast: G AI SI 12 / DIN 1775
Deep lid, shallow body
Captive stainless steel lid screws
Neoprene oil and petrol resistant gasket standard. (-40ºC up to +80ºC)
Degree of protection NEMA 4X, IP66, DIN 40050
Temperature Range (-40ºC up to +80ºC)
Single-channel Fastening System. Trouble-free turning 90º to 90º with square enclosures by synchronous arrangement of channels
Special developed external mounting feet made from zinc-die-cast. Can be turned through 90º. The fastening holes have engagement lugs for this purpose. (See accessories)
All sizes have inner blind holes. A mounting plate made of zinc-plated steel is available (See accessories)
Textured polyester powder coat, light grey RAL7032. (can be supplied unpainted on special order)
CSA certified, Type 4, for use with industrial control equipment

CSA Certified

Part No.	Units	Width	Length	Depth (Including Lid)
Part No.	Units	A	B	C
R101-080-000	mm	80	80	60
R101-080-000	inches	3.2	3.2	2.4
R101-082-000	mm	80	120	60
R101-082-000	inches	3.2	4.8	2.4
R101-084-000	mm	80	160	60
R101-084-000	inches	3.2	6.4	2.4
R101-100-000	mm	100	100	80
R101-100-000	inches	4	4	3.2
R101-102-000	mm	100	150	80
R101-102-000	inches	4	6	3.2
R101-104-000	mm	100	200	80
R101-104-000	inches	4	8	3.2
R101-120-000	mm	120	120	100
R101-120-000	inches	4.8	4.8	4
R101-122-000	mm	120	180	100
R101-122-000	inches	4.8	7.2	4
R101-124-000	mm	120	240	100
R101-124-000	inches	4.8	9.6	4
R101-160-000	mm	160	160	100
R101-160-000	inches	6.4	6.4	4
R101-162-000	mm	160	240	100
R101-162-000	inches	6.4	9.6	4
R101-164-000	mm	160	320	100
R101-164-000	inches	6.4	12.8	4
R101-166-000	mm	160	480	100
R101-166-000	inches	6.4	19.2	4
R101-200-000	mm	200	200	120
R101-200-000	inches	8	8	4.8
R101-202-000	mm	200	300	120
R101-202-000	inches	8	12	4.8
R101-204-000	mm	200	400	120
R101-204-000	inches	8	16	4.8
R101-240-000	mm	240	240	120
R101-240-000	inches	9.6	9.6	4.8
R101-242-000	mm	240	360	120
R101-242-000	inches	9.6	14.4	4.8
R101-244-000	mm	240	480	120
R101-244-000	inches	9.6	19.2	4.8
R101-320-000	mm	320	320	120
R101-320-000	inches	12.8	12.8	4.8
R101-322-000	mm	320	480	120
R101-322-000	inches	12.8	19.2	4.8
R101-324-000	mm	320	640	120
R101-324-000	inches	12.8	25.6	4.8

Features (by photo):

Open R100 enclosure

1 - Screws and mounting holes outside of gasket seal...

2 - Space saving single channel mounting (ie...same hole used for mounting enclosure through rear and for the lid), provides larger interior space than dual channel enclosures.

3 - Captive stainless steel lid screws...

4 - Enclosure holes threaded for easy installation and repetitive assembly & disassembly...

5 - Internal mounting shelves placed along both sides of enclosure include blind holes and grounding screws...
