ROLEC-HAMMOND Watertight - Thick Wall Diecast Aluminum R280 Series (aluDISC)

click to enlarge	click to enlarge

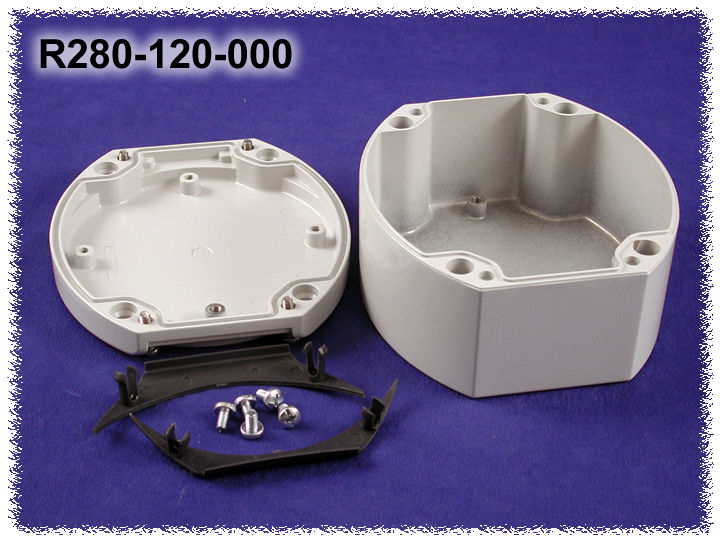

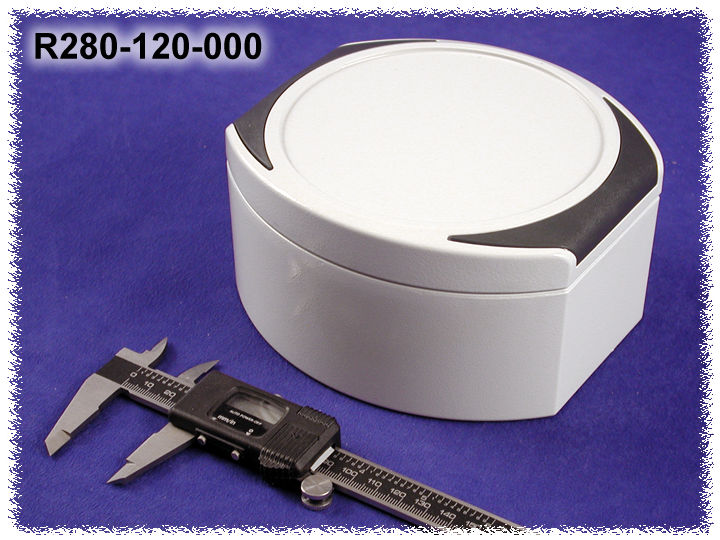

Relative View Caliper opened to 1" (25.4mm)	Internal View

Key Features:

• Round - modern, high quality instrument enclosure
• Material - Aluminum die-cast: GD SI 12 / DIN 1725
• Shallow lid, deep body
• Captive stainless steel lid screws
• Enclosure can be mounted to wall or shelf after closing the lid

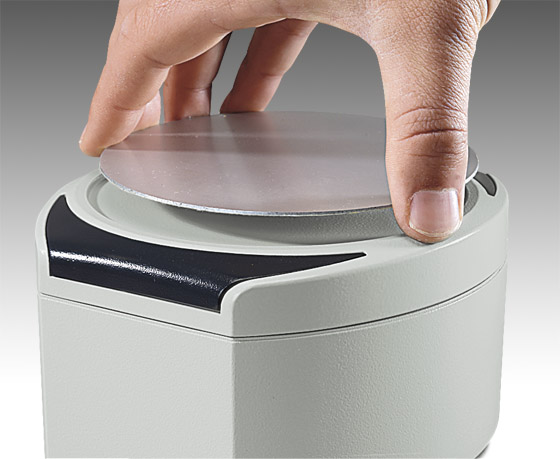

• Integrated 1.7 mm recess in lid for membrane keypads and front panels
• Silicone gasket standard. (-50ºC up to +140ºC)
• Dark grey plastic clip-on design covers - to hide mounting & lid screws (plastic - polyoxymethylene) - RAL 7016
• Complete with lid captivation devices
• Degree of protection: NEMA 4X, IP 66 & IP67
• Textured polyester powder coat, light grey RAL 7035. (can be supplied unpainted on special order)

Part Number	Drawing Files	Units	Length	Width	Depth (Including Lid)
R280-080-000		mm	110	97	55
		inches	4.3	3.8	2.1
R280-100-000		mm	130	119	65
		inches	5.1	4.7	2.5
R280-120-000		mm	150	139	80
		inches	5.9	5.5	3.1
R280-160-000		mm	190	179	90
		inches	7.5	7.0	3.5

---

Features (by photos):

click to enlarge	click to enlarge	click to enlarge

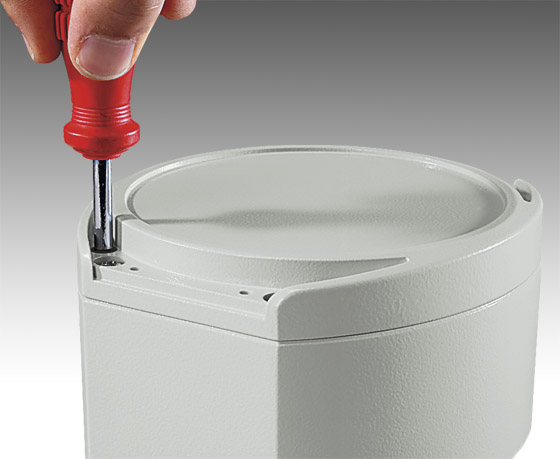

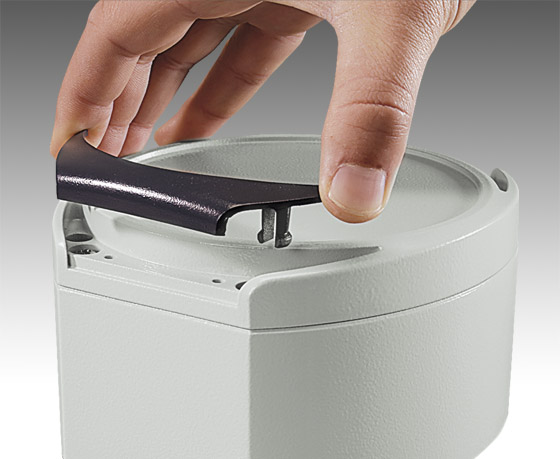

Snap in design covers hide both lid screws and installation holes	Integrated recesses for membrane keypads.	Enclosure can be installed after closing lid
	click to enlarge

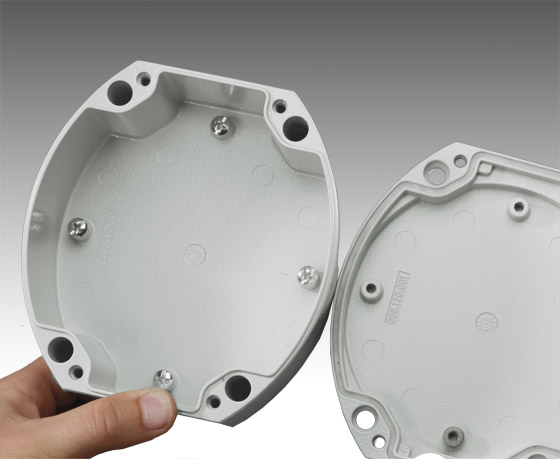

	Standoffs in the enclosure and lid for panels, P.C. boards & components.

---
