Fan Tray
300, 600, 900 CFM
<< Product Information << Climate Control <<

Download PDF


Application
  • Rack mount fan trays provide a compact, economical solution for cooling in electronic cabinets.
  • Fan trays can be positioned at the bottom of an enclosure to force air through the cabinet, at the top to exhaust air out of the cabinet or below specific pieces of equipment for spot cooling.
Standards
  • UR/CUR listed
Features
  • 300, 600 and 900 CFM sizes.
  • 115VAC, 50/60Hz.
  • 19" panel width mounting.
  • Low profile 1.75" (1U) height.
  • 600 and 900 CFM units include removable rear support brackets.
  • Circuit breaker protected.
  • 6 foot 14/3 SJTW cord with molded 3 prong plug.
  • Thermally protected, ball bearing fans.
  • Integral finger guards above and below fans.
  • Shipped fully assembled.
  • Available with or without ON/OFF switch.
Finish
  • Stocked in textured, black body finish.
  • Textured black face panel.
Options
  • Contact Hammond for information on:
    • 24" panel width mounting.
    • 230 V version (without plug).
    • 15 foot cord
    • Optional colors

Back to Top

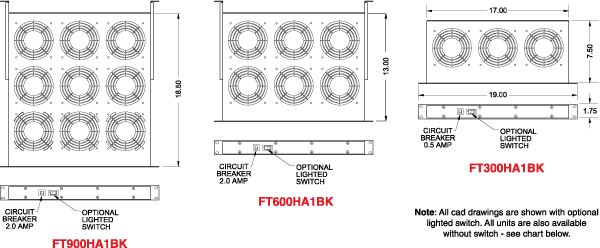

Without Switch Part No.
With Lighted Switch Part No.
 CFM Running Amps Watts Panel Width Case Width Case Depth Rear Bracket Depth
Min. Max.
FT300TA1BK
FT300HA1BK
 300 0.5 40 19 17.00 7.50 n/a n/a
FT600TA1BK
FT600HA1BK
 600 1.0 80 19 17.00 13.00 2.40 19.20
FT900TA1BK
FT900HA1BK
 900 1.5 120 19 17.00 18.50 7.90 24.70
