Cable Ladder Rack CL Series

English | Français

For high-capacity applications in data centers, telecom rooms, and any other densely cabled facilities, the Hammond Cable Ladder (CL Series) is ideal. Although the CL series is intended to mount to Hammond rack mounting products, it may also be mounted on existing racks and cabinets.

Features

  • Manufactured using 16 gauge 1.50in x 0.38in tube steel for the ladder tray.
  • Both horizontal and vertical mounting is possible with the add-on accessories listed below.
  • Mounting hardware is sold separately.
  • Offered in 6", 12", 18", 24" standard widths.
  • Rung spaced at 12". 9" spacing available by special order.
  • Bonding holes (0.219" ø) 3" from end of ladder.
  • Textured RAL9005 black powder paint coat. Complies with the Greenguard guidelines for indoor air quality.
  • Packaged in cardboard with wood at the ends to prevent shipping damage.
  • Load rated to 130 lbs (59 kg) per 1ft (0.3m) when supported every 5ft (1.5m).
  • TAA-compliant for GSA Schedule purchases.
  • RoHS Compliant.
  • Manufactured in North America.

Gallery

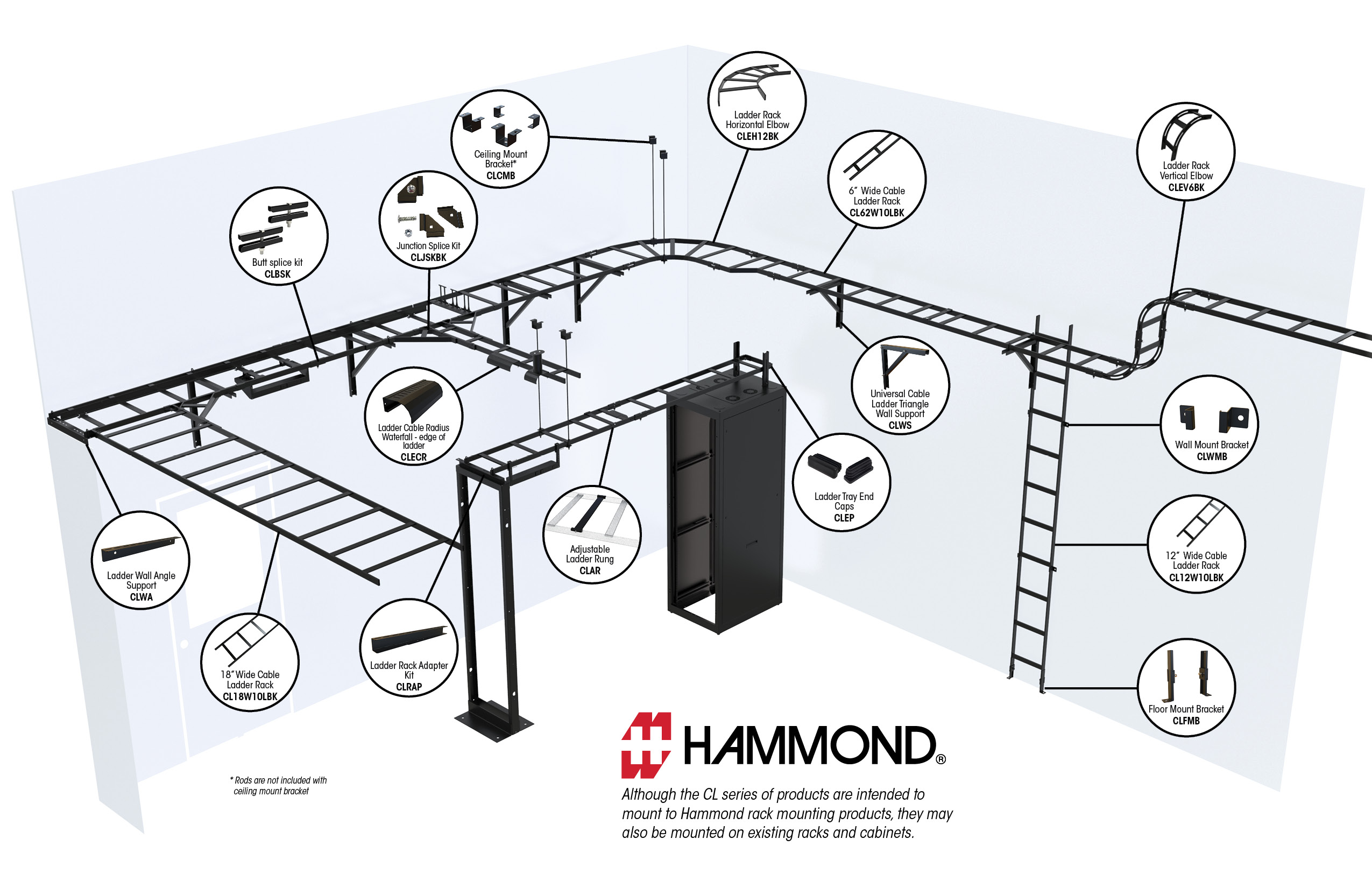

  • Ladder Buying Guide
  • BWK6A7 Bonding Wire shown on Cable Ladder Rack
  • CL1810BK
  • CL18W10LLG
  • CL18W10LWH
  • CLEP Installed

Accessories

Part Details

Click Part No, below, for details (e.g., Product drawings, assembly instructions, ship weight)
Part numbers with stars are new sizes or packaging configurations.

10ft Ladder

Units shown: inch. Switch units to: mm

Part No. Part No. Part No. Ladder Overall Dimenitons
RAL9005 RAL7035 RAL9003
Black Light Gray White Pieces Height Width Length
CL6W10LBK CL6W10LLG CL6W10LWH 1 1.50 6.00 119.50
CL12W10LBK CL12W10LLG CL12W10LWH 1 1.50 12.00 119.50
CL18W10LBK CL18W10LLG CL18W10LWH 1 1.50 18.00 119.50
CL24W10LBK CL24W10LLG CL24W10LWH 1 1.50 24.00 119.50

10ft Ladder Quick Ship Kit

Units shown: inch. Switch units to: mm

Part No. Included Components Ladder Dimensions
Butt Splice Kit Ladder Length Ladder Pieces Height Width Total Length
CL610SKBK 1 59.50 2 1.50 6.00 119.00
CL1210SKBK 1 59.50 2 1.50 12.00 119.00
CL1810SKBK 1 59.50 2 1.50 18.00 119.00

5ft Ladder Rack-to-Wall Kit

Units shown: inch. Switch units to: mm

Part No. Included Components Ladder Dimensions
J-Bolt Hardware Wall Angle Rack Adapter Height Width Length
CL65RWKBK Yes Yes Yes 1.50 6.00 59.50
CL125RWKBK Yes Yes Yes 1.50 12.00 59.50
CL185RWKBK Yes Yes Yes 1.50 18.00 59.50

90-Degree Horizontal Elbow

Units shown: inch. Switch units to: mm

Part No. Description Ladder Width Height Width Depth
CLEH12BK 90 Degree Corner Horizontal Elbow 12.00 1.50 29.19 29.19
CLEH18BK 90 Degree Corner Horizontal Elbow 18.00 1.50 29.19 29.19

Cable Ladder Joining Kits & Hardware

Part No. Description Qty Included
CLBSK Butt Splice Kit One (1) Pair
CLJSK Junction Splice Kit (T-Junction) Zinc Finish One (1) Pair
CLJSKBK Junction Splice Kit (T-Junction) Black Finish One (1) Pair
CLJBK J-Bolt Kit One (1) Pair
C4K-Z4 Floor Lagging Kit Four (4)
BWK6A7 #6 AWG Bonding Wire Kit One (1) Cable

Cable Management Waterfall

Units shown: inch. Switch units to: mm

Part No. Description Height Width Depth Bend Radius
CLECR Edge-of-ladder cable radius 2.45 10.00 3.63 2.00
CLE6CR Inside rung cable radius 2.25 5.55 4.63 2.00

Universal Cable Ladder Triangle Wall Supports

Units shown: inch. Switch units to: mm

Part No. Description Overall Dimensions
Height Width Depth
CLWS6 Support triangle for 6in wide ladder. 10.00 1.50 6.00
CLWS12 Support triangle for 12in or two (2) 6in wide ladder. 16.00 1.50 12.00
CLWS18 Support triangle for 18in or one (1) 12in and one (1) 6in wide ladder. 22.00 1.50 18.00
CLWS24 Support triangle for 24in or one (1) 12in and one (1) 6in wide ladder. 28.00 1.50 24.00
Wall mounting hardware sold separately. Includes pair of j-bolts.

Universal Cable Ladder Accessories

Part No. Description Qty Included
CLWMB Wall mount bracket for ladder tray One (1) Pair (Wall mounting hardware not included)
CLFMB Floor mount bracket for ladder tray One (1) Pair (Floor lagging hardware not included)
CLCMB Ceiling mount bracket for ladder tray One (1) Pair (Threaded rod not included)
CLRAP 2-Post/4-Post Rack Ladder Adaptor Kit One (1) Rack Adapter, Two (2) J-Bolts
CLRAP24 2-Post/4-Post Rack Ladder Adaptor Kit for 24in Ladder One (1) Rack Adapter, Two (2) J-Bolts
CLWA Wall Angle for up to 18in wide ladder with pair of J-Bolts One (1) Angle, Two (2) J-Bolts
CLWA24 Wall Angle for up to 24in wide ladder with pair of J-Bolts One (1) Angle, Two (2) J-Bolts
CLEP End plugs for ladder tray Two (2) Plastic Plugs
Surface mounting hardware sold separately.
