Horizontal Finger Cable Manager RB-HFM Series

English | Français

Features:

  • The rear manager body is constructed in 16-gauge steel.
  • The fingers and cover clips are constructed in black UL94V-0 Polycarbonate.
  • The included removable cover is constructed in aluminum.
  • Includes cutouts at the rear for cable pass-through.
  • Fits standard EIA-compliant mounting rails.
  • Metal components finished in textured RAL9005 black powder paint.
  • Requires mounting hardware.
  • Finished in textured RAL9005 black powder paint finish.
  • TAA-compliant for GSA Schedule purchases.
  • RoHS and REACH compliant.
  • Manufactured in North America.

For a double-sided manager, install two (2) managers mounted back-to-back. The rear opening provides a cable pass-thru.

Part of the Rack Basics® line of economy rack solutions.

Gallery

  • RB-HFMS1
  • RB-HFMS1_Open
  • RB-HFMS2
  • RB-HFMS2_Open
  • RB-HFMS3
  • RB-HFMS3_open
  • RB-HFMS4
  • RB-HFMS4_Open

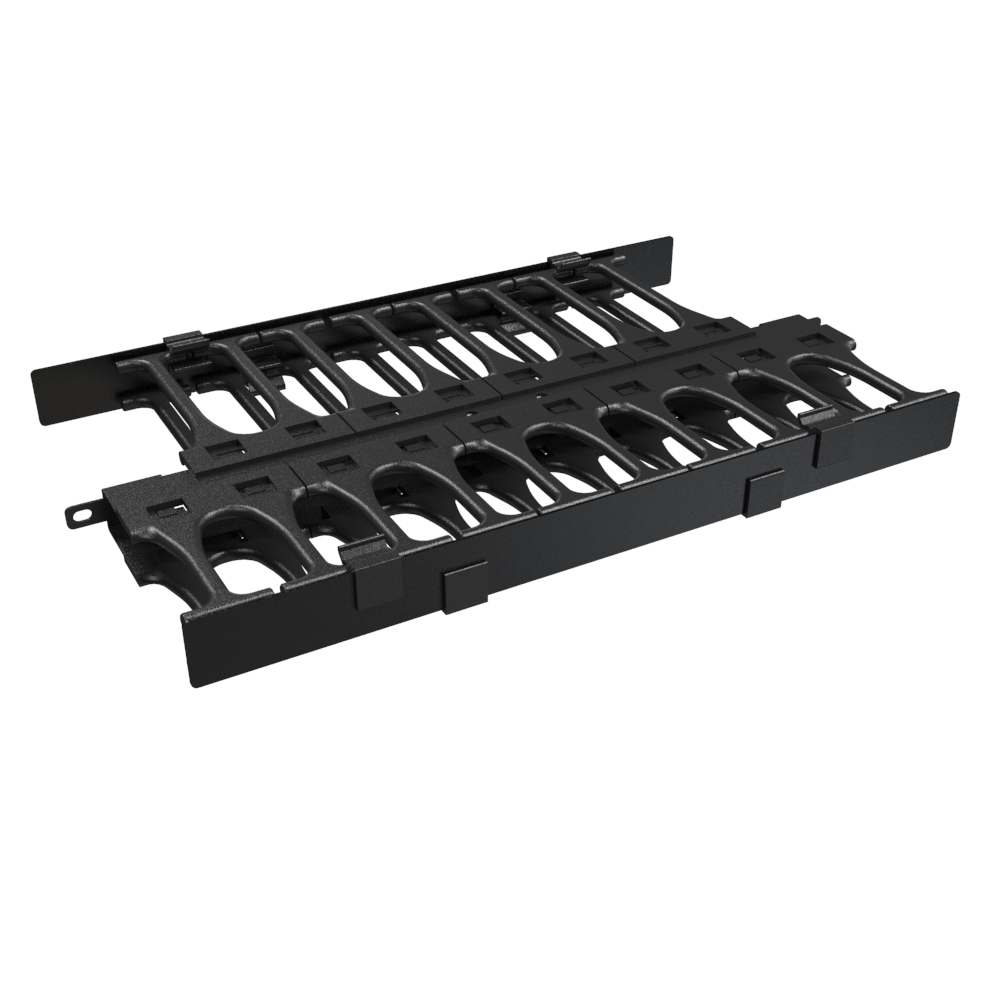

  • RB-HFMD1

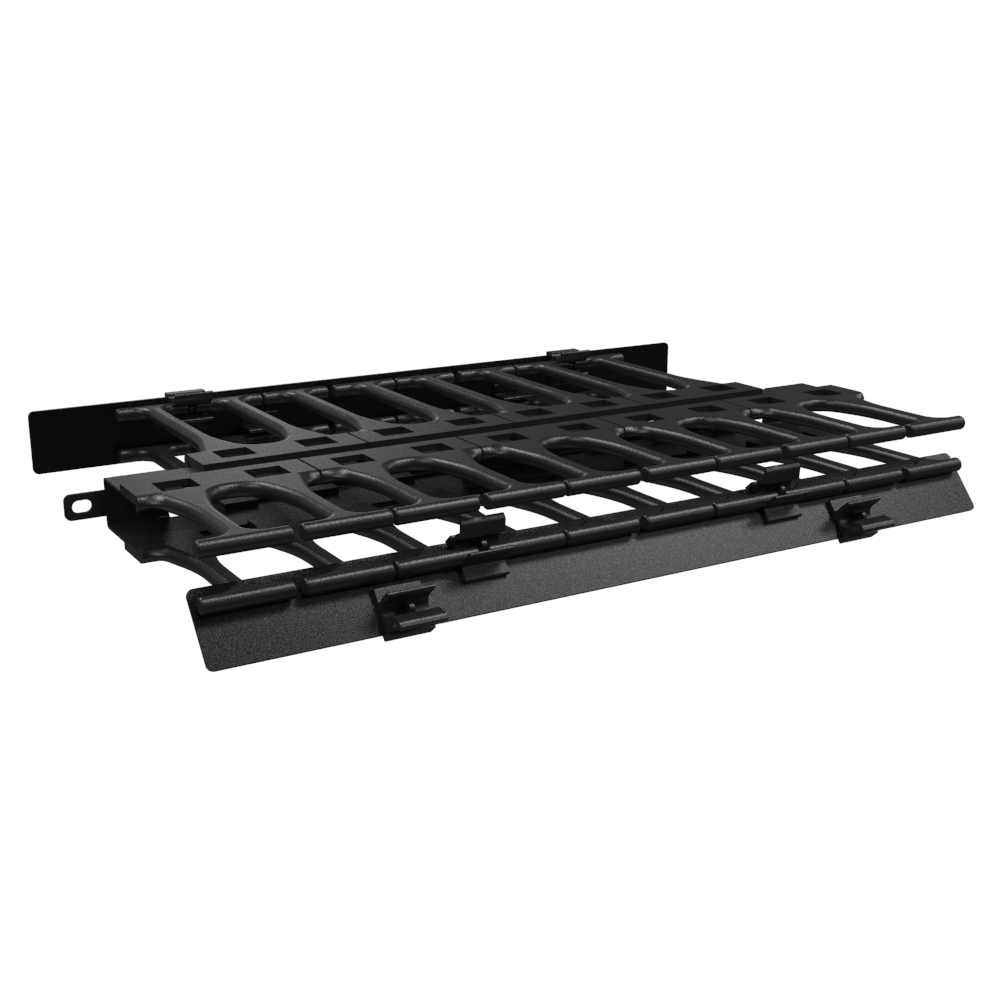

  • RB-HFMD1_open

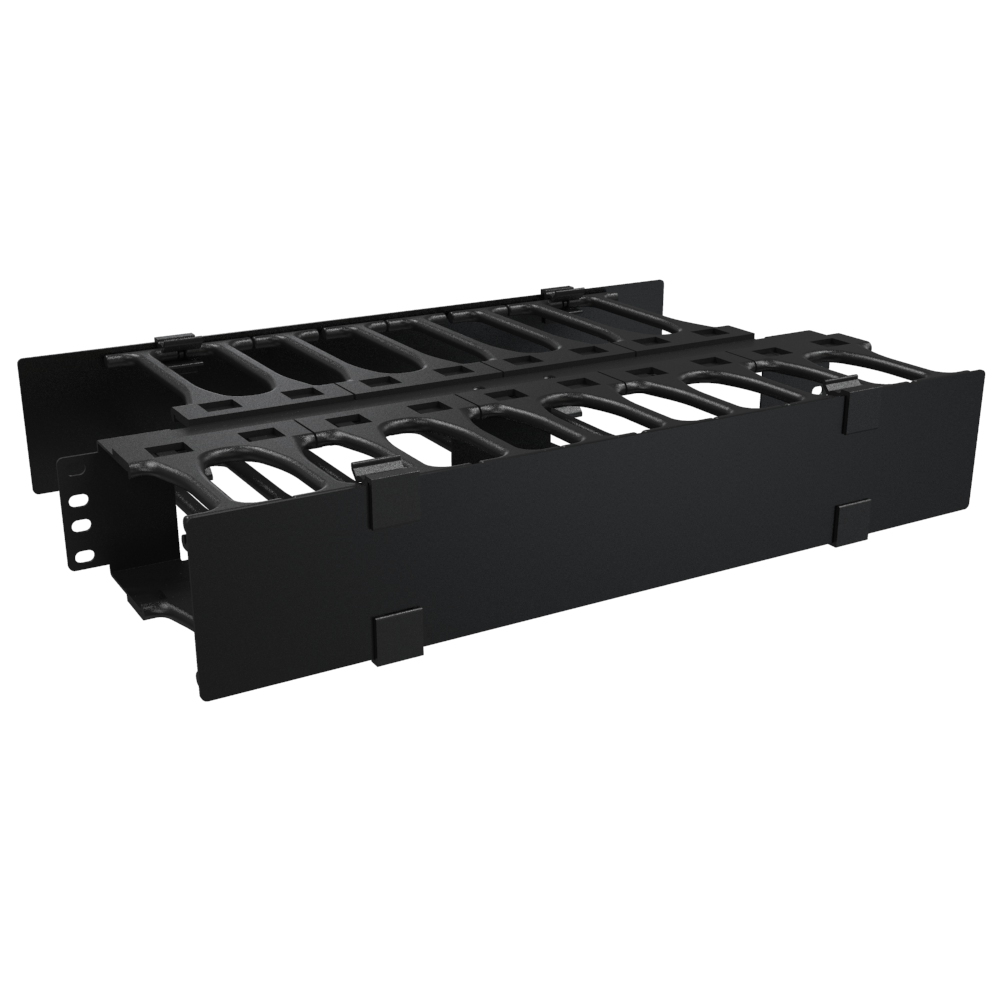

  • RB-HFMD2

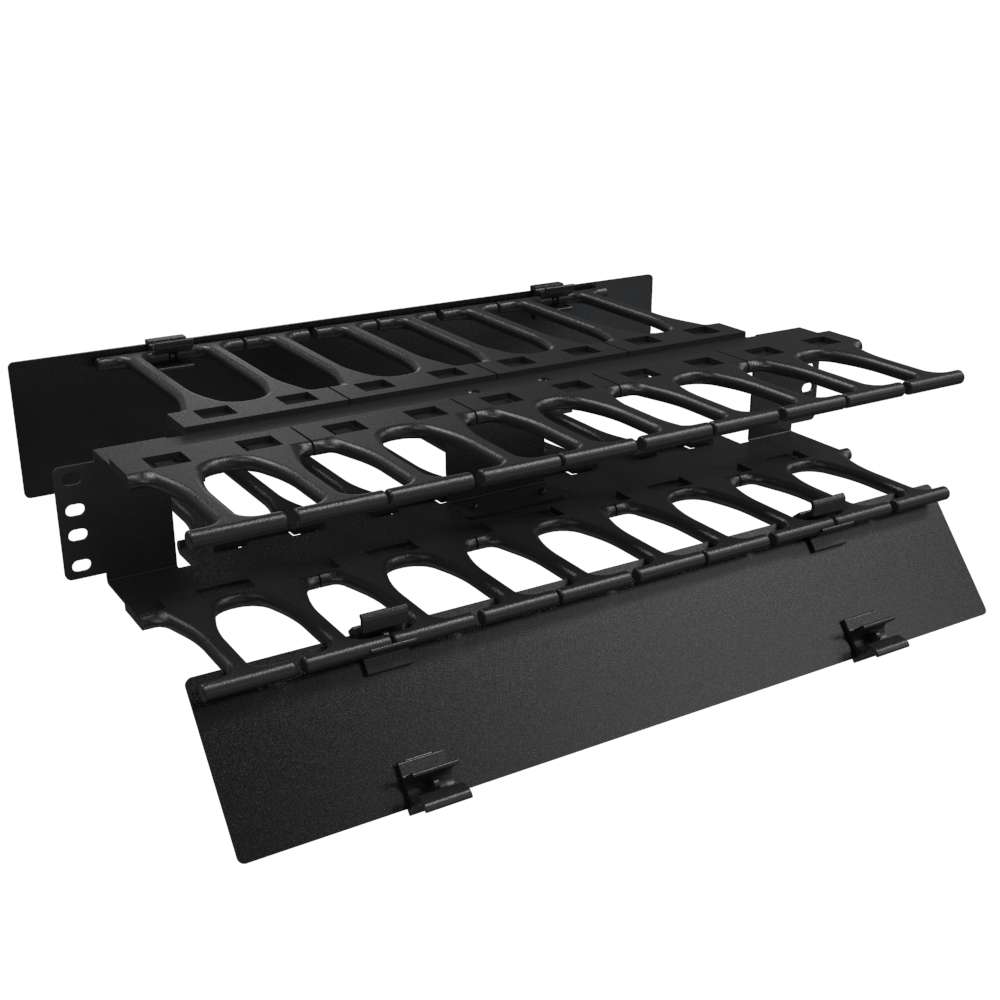

  • RB-HFMD2_open
  • RB-HFMD3
  • RB-HFMD3_open

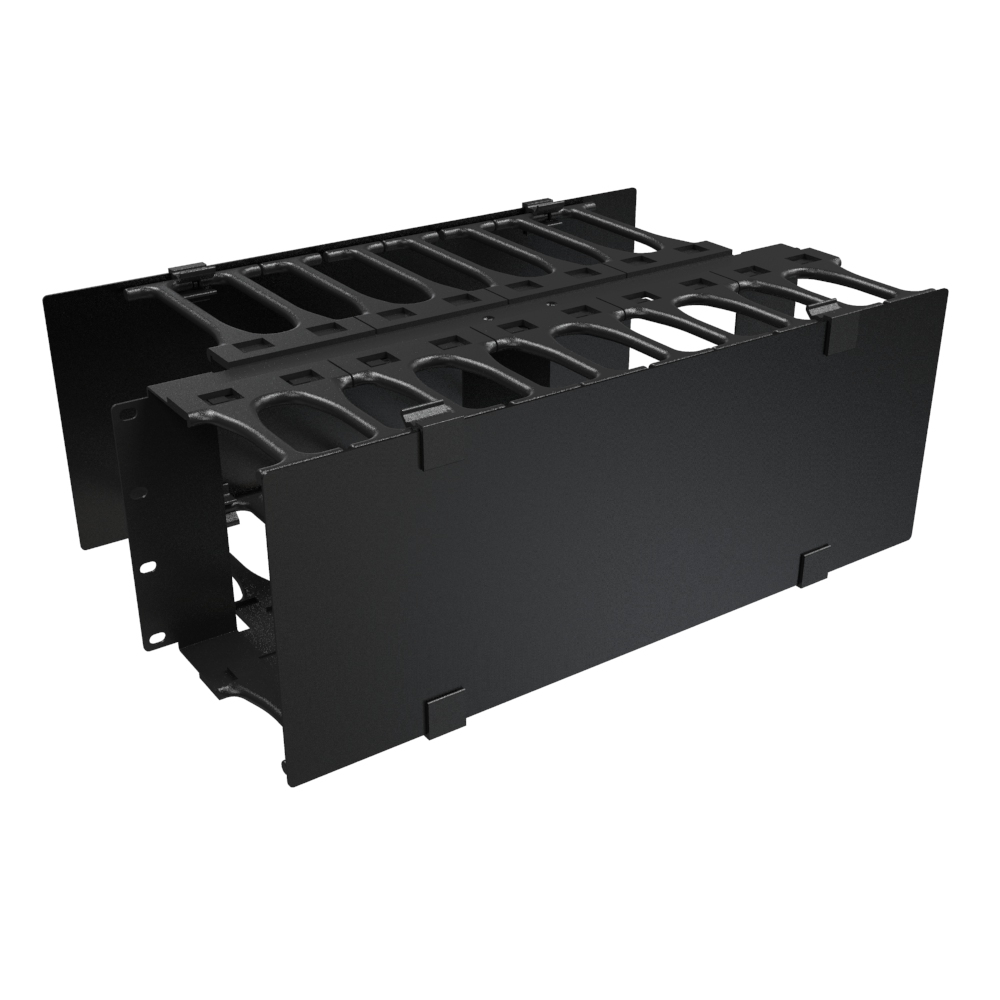

  • RB-HFMD4

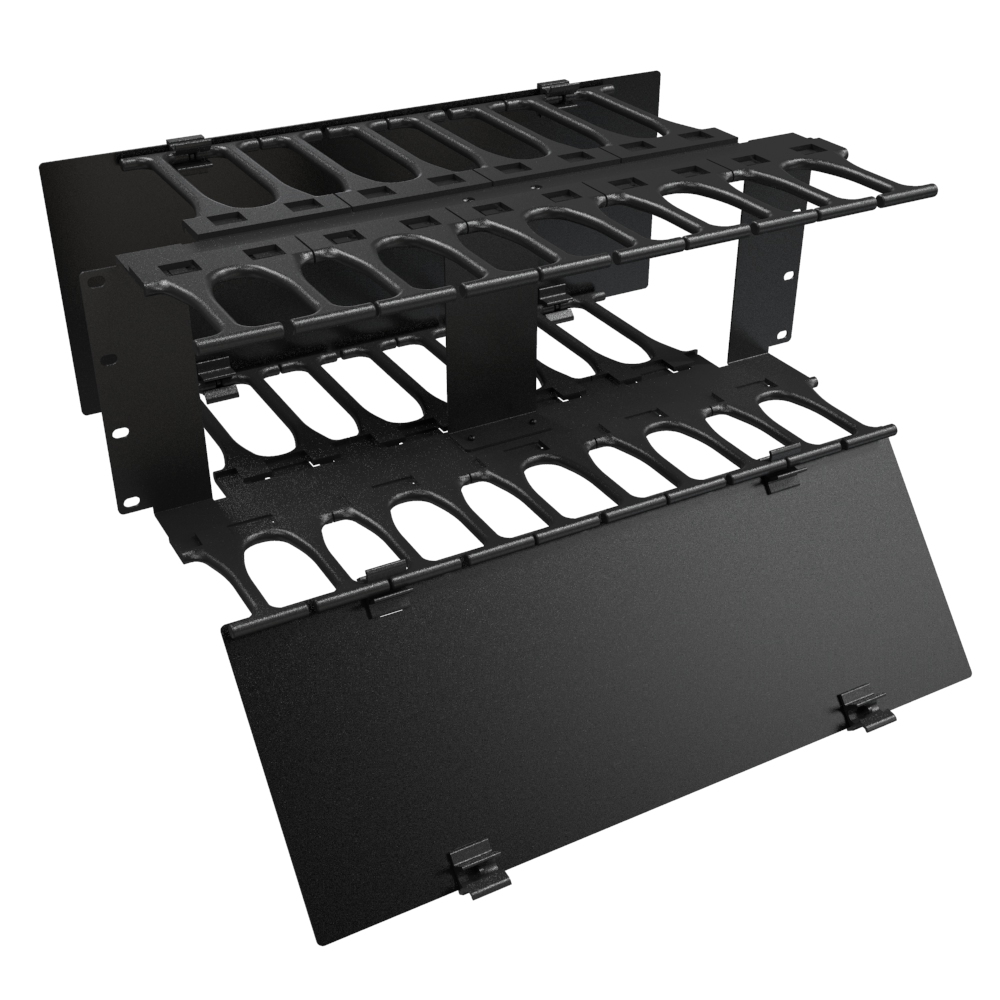

  • RB-HFMD4_Open

Accessories

RB-HFMD3_animation

Part Details

Click Part No, below, for details (e.g., Product drawings, assembly instructions, ship weight)
Part numbers with stars are new sizes or packaging configurations.

Units shown: inch. Switch units to: mm

Part No. Overall Dinmensions Usable Mounting Dimensions
Height Width Depth Rack Units Height
RB-HFMS1 1.47 19.00 4.37 1U 1.75
RB-HFMD1 1.47 19.00 6.50 1U 1.75
RB-HFMS2 3.22 19.00 4.37 2U 3.50
RB-HFMD2 3.22 19.00 6.50 2U 3.50
RB-HFMS3 5.22 19.00 4.37 3U 5.25
RB-HFMD3 5.22 19.00 6.50 3U 5.25
RB-HFMS4 6.97 19.00 4.37 4U 7.00
RB-HFMD4 6.97 19.00 6.50 4U 7.00

Need Assistance? Contact Us.

Data subject to change without notice.
