Vertical Cable Manager with Fingers and Cover for Open Frame Racks RB-VFM

Vertical finger cable manager with cover designed for high-capacity cable routing in open frame rack systems.

English | Français

Key Features and Benefits

  • 16-gauge steel frame with UL94V-0 polycarbonate fingers supports high-capacity cable routing and long-term durability in demanding environments.
  • Vertical finger duct design organizes cables into structured pathways for high-density cable management.
  • Removable aluminum cover provides cable concealment and a clean, professional installation.
  • Available in single-sided and double-sided configurations to support different rack layouts and cable volumes.
  • Offered in multiple widths (4in, 6in, 8in, 10in) to match cable density requirements.
  • Rear cable pass-through openings allow flexible routing between rack sections.
  • Keyhole cutouts support tool-less PDU mounting for integrated power and cable management.
  • Optional accessories including cable spools, dividers, and panels enhance routing and organization.
  • Designed for compatibility with Hammond and third-party open frame racks.
  • TAA-compliant, manufactured in North America supports government procurement requirements and ensures consistent quality.
  • Black powder coat finish (GREENGUARD, TSCA, RoHS compliant) supports indoor air quality and environmental compliance.

The RB-VFM Series vertical cable managers provide a high-capacity solution for organizing cables in open frame rack systems. Designed with finger duct pathways and a removable cover, they support structured cable routing while maintaining a clean and professional appearance.

Unlike horizontal cable managers, the RB-VFM Series handles the primary routing of cables along the full height of the rack. With multiple widths, single- or double-sided configurations, and optional accessories, it is ideal for high-density environments where cable organization, airflow, and accessibility are critical.

    Part of the Rack Basics® line designed for simple, reliable, and affordable installations.

    Gallery

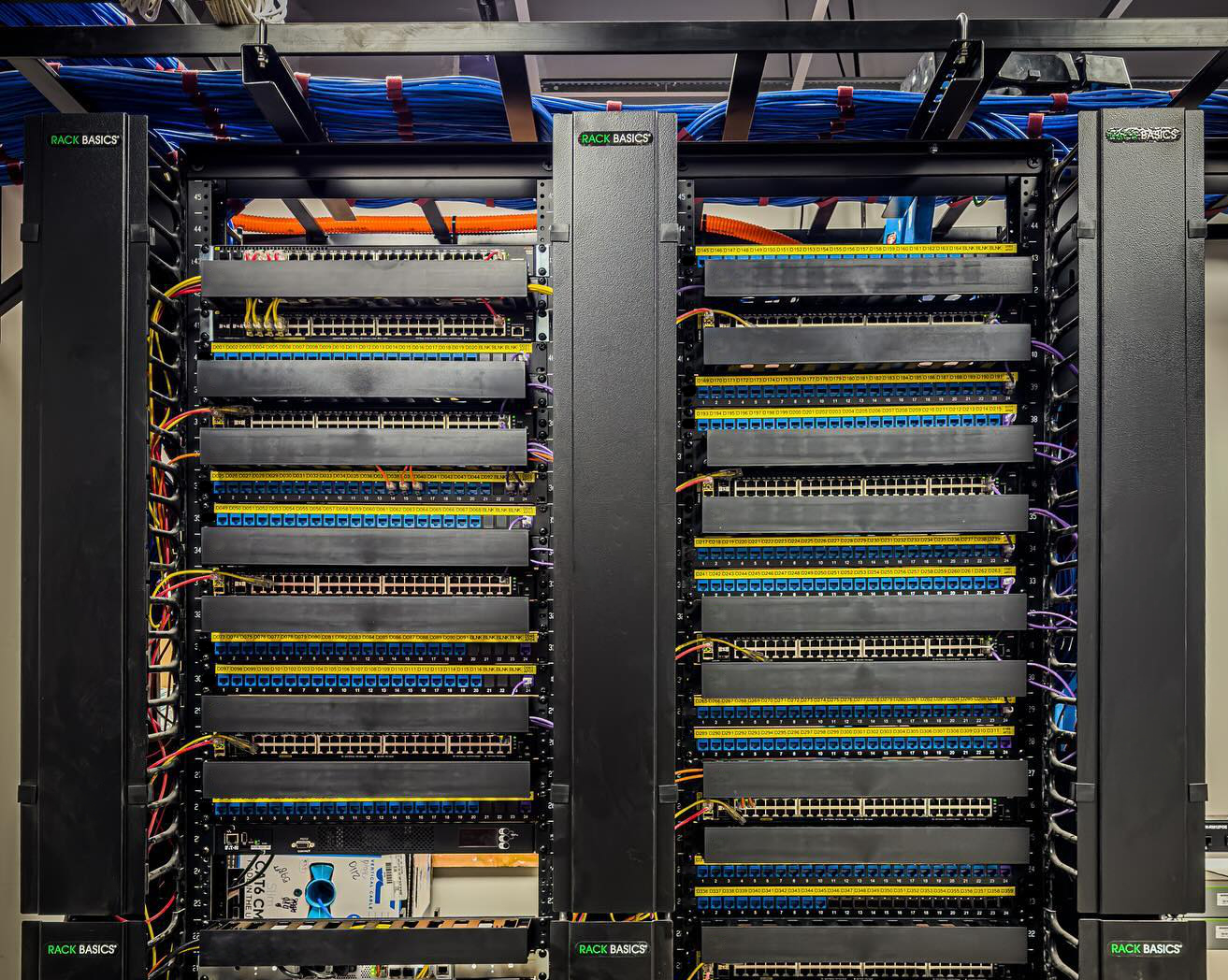

    • Customer Submitted Photo
    • RB-VFM45-4-1
    • RB-VFM45-4-2
    • RB-VFM45-6-1
    • RB-VFM45-8-1
    • RB-VFM45-6-2
    • RB-VFM45-8-2
    • RB-VFM45-10-1
    • RB-VFM45-10-2
    • RV-VFM45-10-1 Open
    • RV-VFM45-8-1 Open
    • RV-VFM45-6-1 Open
    • RB-VFM Exploded View

    RB-VFM_assembly Animation RV-VFM45-8-1 Animation

    Part Details

    Click Part No, below, for details (e.g., Product drawings, assembly instructions, ship weight)

    Single-Sided

    Units shown: inch. Switch units to: mm

    Part No. Overall Dimensions (Inches) Mounting Dimensions Door
    Black Height Width Depth Units Rack Units Included
    RB-VFM45-4-1 78.75 4.00 8.00 78.75 45 Yes
    RB-VFM45-6-1 78.75 6.00 8.00 78.75 45 Yes
    RB-VFM45-8-1 78.75 8.00 8.00 78.75 45 Yes
    RB-VFM45-10-1 78.75 10.00 8.00 78.75 45 Yes

    Double-Sided

    Units shown: inch. Switch units to: mm

    Part No. Overall Dimensions (Inches) Mounting Dimensions Door
    Black Height Width Depth Units Rack Units Included
    RB-VFM45-4-2 78.75 4.00 16.00 78.75 45 Yes
    RB-VFM45-6-2 78.75 6.00 16.00 78.75 45 Yes
    RB-VFM45-8-2 78.75 8.00 16.00 78.75 45 Yes
    RB-VFM45-10-2 78.75 10.00 16.00 78.75 45 Yes

    Replacement Cover Piece

    Units shown: inch. Switch units to: mm

    Part No. Overall Dimensions (Inches) Quantity
    Black Height Width Depth Included
    RB-VFM45-4-COV 39.38 4.00 0.50 1 Cover/Door
    RB-VFM45-6-COV 39.38 6.00 0.50 1 Cover/Door
    RB-VFM45-8-COV 39.38 8.00 0.50 1 Cover/Door
    RB-VFM45-10-COV 39.38 10.00 0.50 1 Cover/Door
    Where the RB-VFM Series Works Best
    • Data centers and IT rooms.
    • Network and telecom installations.
    • High-density open frame rack deployments.
    • Structured cabling environments.
    • Installations requiring vertical cable routing.
    Best Applications for the RB-VFM Series
    • Routing large volumes of patch cables between rack-mounted equipment.
    • Managing vertical cable runs in open frame racks.
    • Supporting high-density network and data center installations.
    • Organizing cables for improved airflow and serviceability.
    • Creating structured cable pathways for scalable rack systems.
