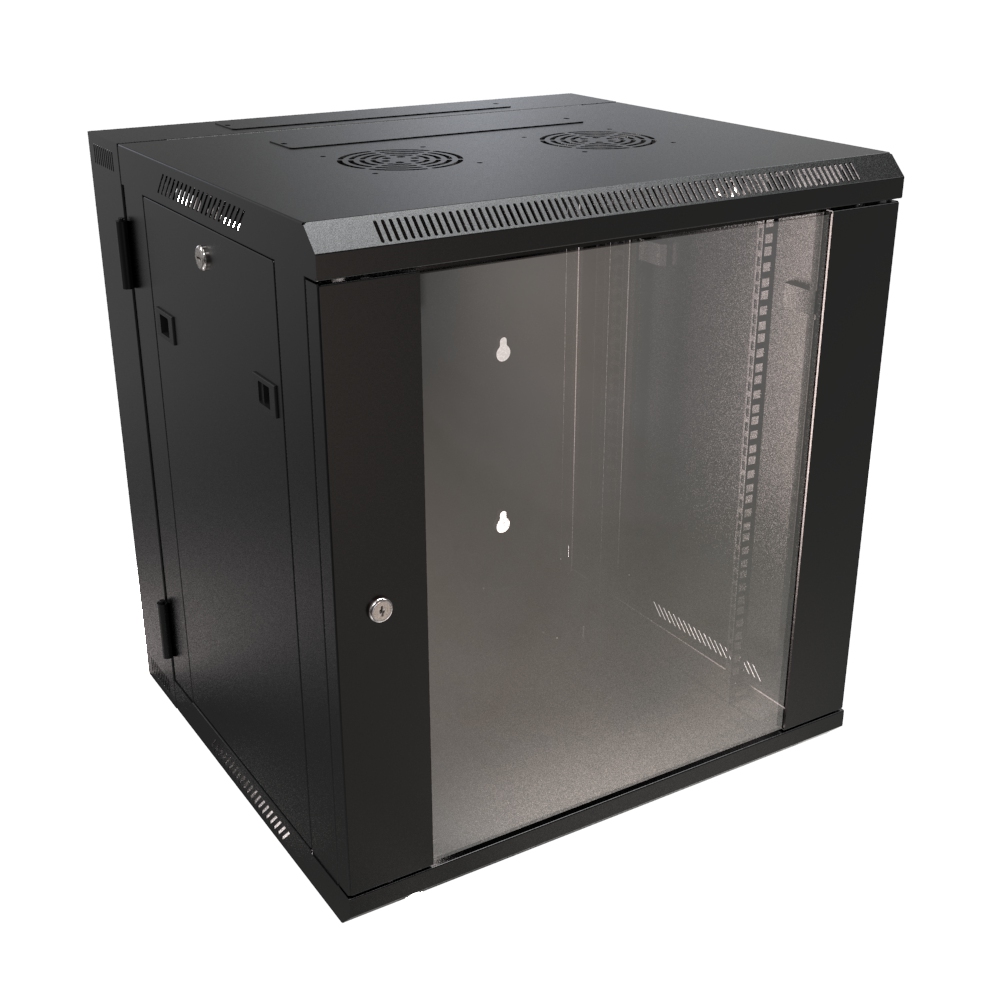

Economy Swing-Out Wall Mount Cabinet RB-SW Series

130 lbs Weight Capacity

Features

  • Double-hinged for easy rear access (body swings open to 120°).
  • Constructed in light duty 16-gauge steel.
  • Includes two (2) pairs of EIA-310-D compliant square hole punched rails with 19” mounting.
    • Starter pack of M5 screws and cage nuts included.
    • For 10-32 hardware see the CAGKIT Series.
  • Rails are adjustable.
  • Includes one (1) locking lightly smoked tempered glass reversible front door (hinged on right side as standard).
  • Includes one (1) pair of locking removable side panels.
  • Front and side of frame includes venting for air flow.
  • Top, bottom and rear cable access.
  • Provision for optional fans on top panel.
  • Middle body section is not reversible, and hinges on the left side.
  • Ships assembled - ready to install.
  • Finished in black powder paint.
  • Tested to 130 lbs (59 kg) of equipment load capacity.
  • RoHS Compliant.

Part of the Rack Basics® line of economy rack solutions.

To learn about our heavy duty version of the swing-out wall mount cabinet, click here.

Gallery

Accessories

Part No. Overall Dimensions Rack Mounting Dimensions Usable
Height Width Depth Units Height Width Depth Depth
RB-SW9 19.90 23.62 21.65 9U 15.75 19.00 16.13 18.25
RB-SW12 25.15 23.62 21.65 12U 21.00 19.00 16.13 18.25
RB-SW15 30.40 23.62 21.65 15U 26.25 19.00 16.13 18.25
RB-SW18 35.65 23.62 21.65 18U 31.50 19.00 16.13 18.25
