Eclipse Rack Panel ERP Series

For use with Eclipse Enclosure Series

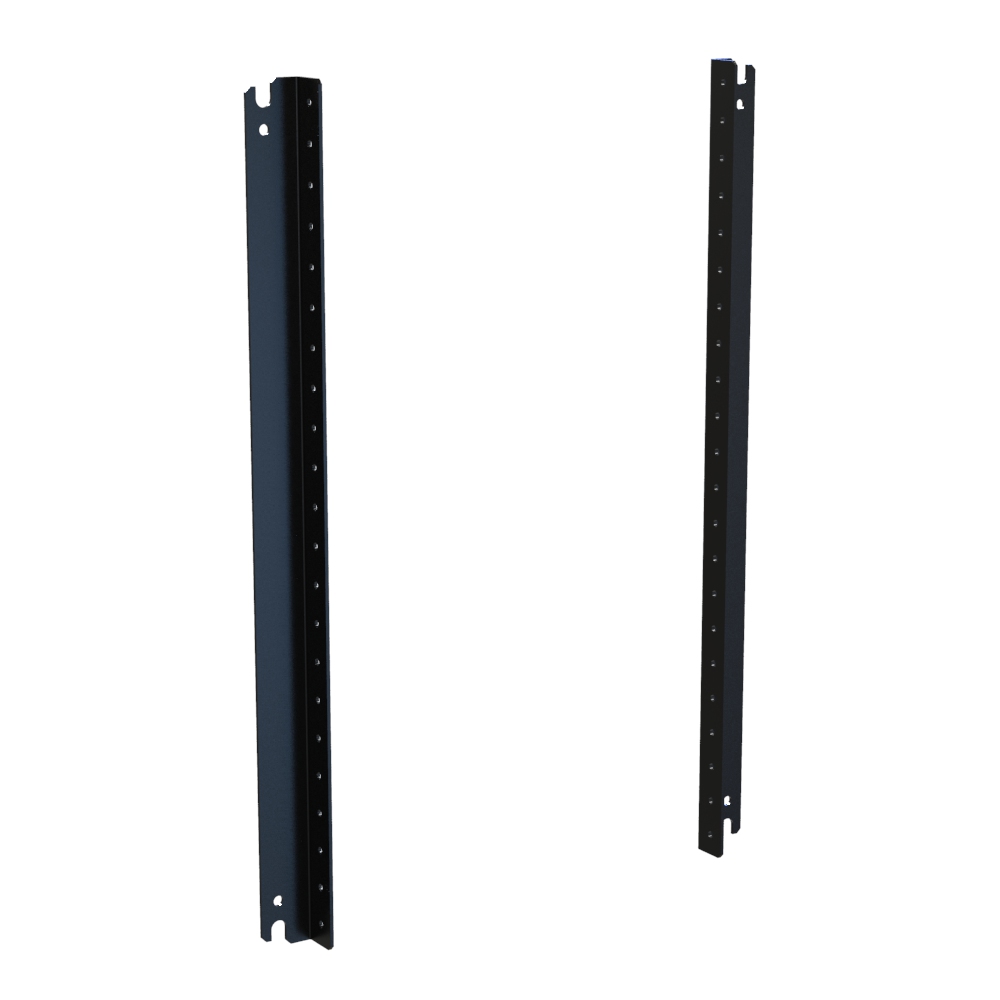

The ERP series is a pair of vertical brackets that allow specific mounting rails to be installed. Exclusively compatible with HLPUR series rack rails this combination provides an installer to mount EIA 19" rackmount equipment in three positions (vertical, angled or facing the door). The ERP, on its own, attaches to the panel studs at the rear of the enclosure and can be mounted on its own or over an installed inner panel to accommodate both electrical and data communication applications.

  • The ERP part numbers below ONLY include the vertical upright angles that support the mounting of HLPUR EIA rack rails. The HLPUR rails are sold separately.
  • Please verify the appropriately sized HLPUR rack rail is compatible with your enclosure as detailed in the tables below.
  • Maintains UL, CSA and NEMA ratings when field installed.
  • Finished in RAL9005 black powder paint finish.
  • TAA-compliant for GSA Schedule purchases.
  • RoHS and REACH compliant.
  • Manufactured in North America.

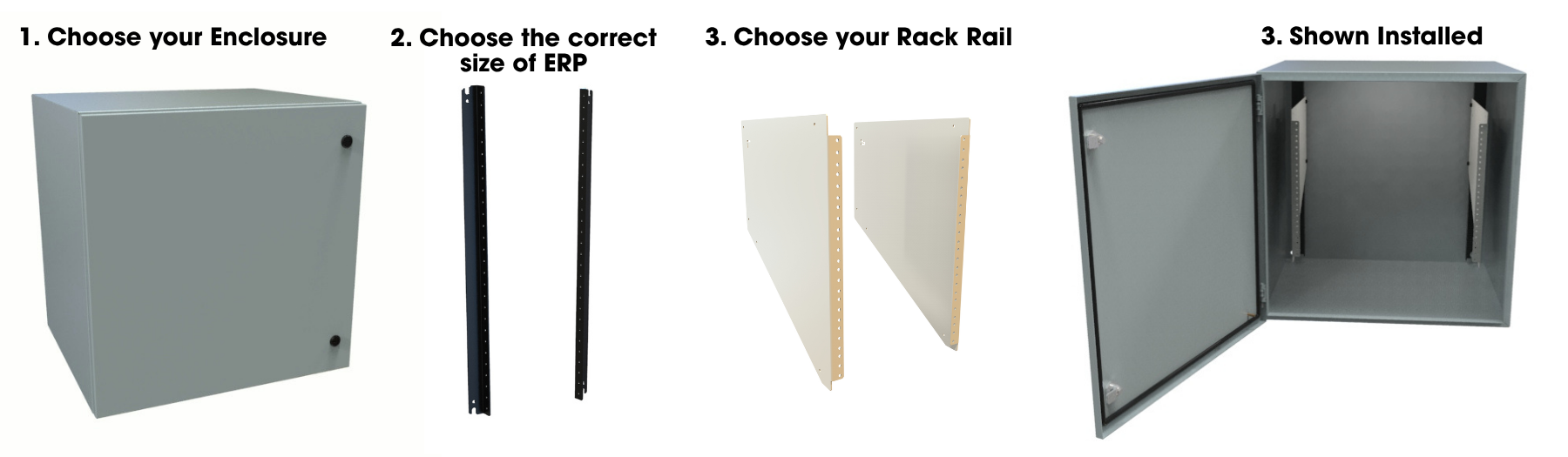

Example Buying Guide:
1. Choose your Enclosure

EN4SD302424GY
2. Choose the correct size of ERP

ERP3024
The ERP matches the H x W of the enclosure.
EN4SD302424GY
3. Choose your Rack Rail

HLP8UFR
Note that if you are not using the vertical rack-mounting, you can fit more than one fixed rail in an enclosure.

Accessories

STEP 1: CHOOSE AN ENCLOSURE STEP 2: STEP 3: IDENTIFY COMPATIBLE RACK RAIL
Part No. Material Paint Overall Enclosure Dimensions Identify Compatible ERP 2U Rail 4U Rail 6U Rail 8U Rail
Type Finish H W D Part No. Part No. Part No. Part No. Part No.
EN4SD242412GY Mild Steel ANSI 61 Gray 24.00 24.00 12.00 ERP2424 HLP2UR HLP4UFR - -
EN4SD242416GY Mild Steel ANSI 61 Gray 24.00 24.00 16.00 ERP2424 HLP2UR HLP4UFR HLP6UFR -
EN4SD242420GY Mild Steel ANSI 61 Gray 24.00 24.00 20.00 ERP2424 HLP2UR HLP4UFR HLP6UFR HLP8UFR
EN4SD302412GY Mild Steel ANSI 61 Gray 30.00 24.00 12.00 ERP3024 HLP2UR HLP4UFR - -
EN4SD302416GY Mild Steel ANSI 61 Gray 30.00 24.00 16.00 ERP3024 HLP2UR HLP4UFR HLP6UFR -
EN4SD302420GY Mild Steel ANSI 61 Gray 30.00 24.00 20.00 ERP3024 HLP2UR HLP4UFR HLP6UFR HLP8UFR
EN4SD302424GY Mild Steel ANSI 61 Gray 30.00 24.00 24.00 ERP3024 HLP2UR HLP4UFR HLP6UFR HLP8UFR
EN4SD362412GY Mild Steel ANSI 61 Gray 36.00 24.00 12.00 ERP3624 HLP2UR HLP4UFR - -
EN4SD242412LG Mild Steel RAL7035 Light Gray 24.00 24.00 12.00 ERP2424 HLP2UR HLP4UFR - -
EN4SD242416LG Mild Steel RAL7035 Light Gray 24.00 24.00 16.00 ERP2424 HLP2UR HLP4UFR HLP6UFR -
EN4SD242420LG Mild Steel RAL7035 Light Gray 24.00 24.00 20.00 ERP2424 HLP2UR HLP4UFR HLP6UFR HLP8UFR
EN4SD302412LG Mild Steel RAL7035 Light Gray 30.00 24.00 12.00 ERP3024 HLP2UR HLP4UFR - -
EN4SD302416LG Mild Steel RAL7035 Light Gray 30.00 24.00 16.00 ERP3024 HLP2UR HLP4UFR HLP6UFR -
EN4SD302420LG Mild Steel RAL7035 Light Gray 30.00 24.00 20.00 ERP3024 HLP2UR HLP4UFR HLP6UFR HLP8UFR
EN4SD302424LG Mild Steel RAL7035 Light Gray 30.00 24.00 24.00 ERP3024 HLP2UR HLP4UFR HLP6UFR HLP8UFR
EN4SD362412LG Mild Steel RAL7035 Light Gray 36.00 24.00 12.00 ERP3624 HLP2UR HLP4UFR - -
EN4SD242412SS 304 Stainless Steel Natural Finish 24.00 24.00 12.00 ERP2424 HLP2UR HLP4UFR - -
EN4SD302412SS 304 Stainless Steel Natural Finish 30.00 24.00 12.00 ERP3024 HLP2UR HLP4UFR - -
EN4SD302416SS 304 Stainless Steel Natural Finish 30.00 24.00 16.00 ERP3024 HLP2UR HLP4UFR HLP6UFR -
EN4SD362412SS 304 Stainless Steel Natural Finish 36.00 24.00 12.00 ERP3624 HLP2UR HLP4UFR - -
EN4SD242412S16 316 Stainless Steel Natural Finish 24.00 24.00 12.00 ERP2424 HLP2UR HLP4UFR - -
EN4SD302412S16 316 Stainless Steel Natural Finish 30.00 24.00 12.00 ERP3024 HLP2UR HLP4UFR - -
EN4SD302416S16 316 Stainless Steel Natural Finish 30.00 24.00 16.00 ERP3024 HLP2UR HLP4UFR HLP6UFR -
EN4SD362412S16 316 Stainless Steel Natural Finish 36.00 24.00 12.00 ERP3624 HLP2UR HLP4UFR - -

Sloped Stainless Steel Enclosure Comparability

Compatible HLPUR Rack 304 Gauge Overall Enclosure Dimensions
Rail Compatibility Stainless Steel
ERP 4U Rail 6U Rail 8U Rail Solid Door
Part No. Part No. Part No. Part No. Part No. A1 A2 B C
ERP2424 HLP4UFR - - ST242412SS 24.00 28.30 24.00 12.00
ERP3024 HLP4UFR - - ST302412SS 30.00 34.30 24.00 12.00
