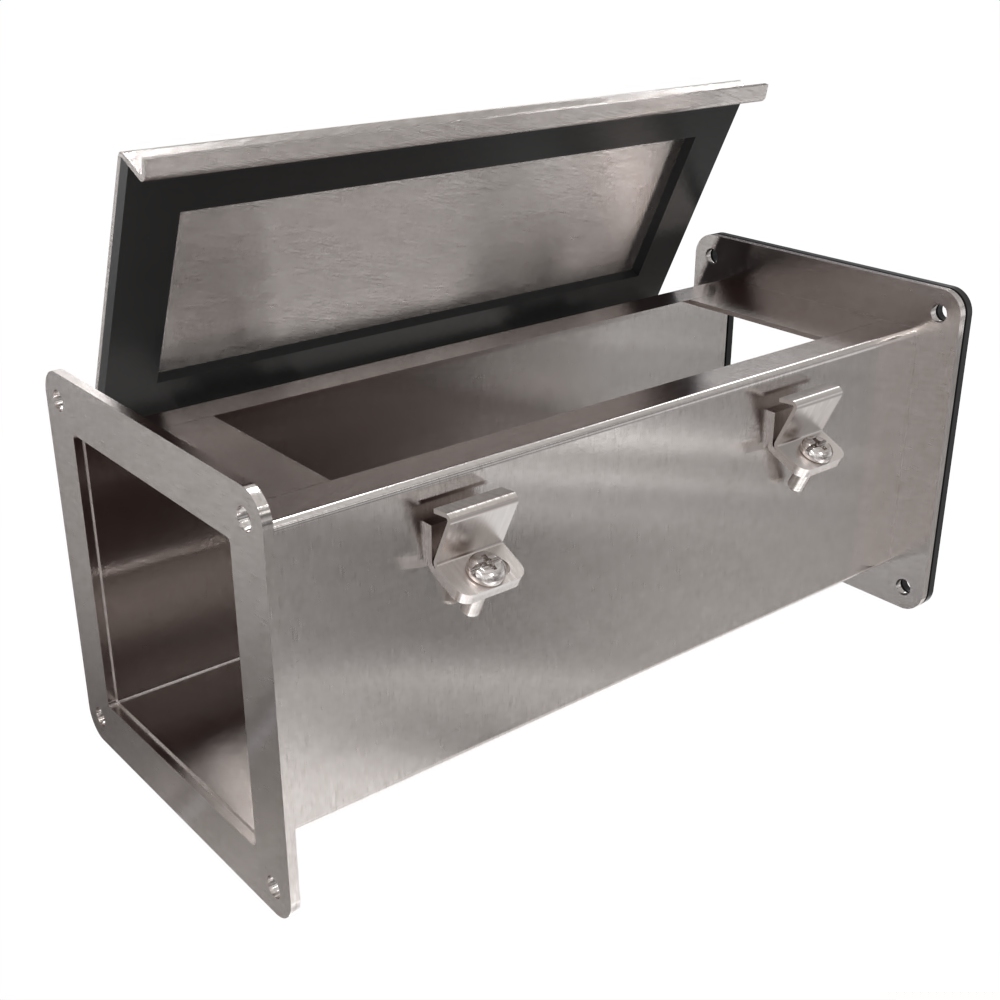

Type 4X Pull Through Wireway 1487SS Series

Wireway & Accessories

Application

  • Designed to enclose and protect electrical wiring from dirt, dust, oil and water.
  • Ideal for connecting machines to control panels or power sources.

Standards

  • UL 870 Type 1 (unless marked¹)
  • CSA Type 1 (unless marked¹)
  • Complies with
    • NEMA Type 4, 4X and 12
    • IEC 60529, IP66

Construction

  • Bodies and covers are formed from 14 gauge 304 stainless steel with 10 gauge flanges.
  • Smooth continuously welded seams.
  • Interior surfaces are smooth to prevent wire damage during installation.
  • Butt hinged covers are secured with easily operated screw clamps.
  • Oil resistant gaskets are permanently secured.
  • Solid oil resistant gaskets are used between flanges when sections and fittings are bolted together.
  • One gasket kit, complete with hardware is provided with each straight section or fitting.

Finish

  • Sections and fittings are natural stainless steel with a smooth brushed finish.

Accessories

Description 4 x 4 6 x 6 8 x 8
Part No. Part No. Part No.
12" Section 1487C12SS 1487D12SS 1487E12SS
24" Section 1487C24SS 1487D24SS 1487E24SS
36" Section 1487C36SS 1487D36SS 1487E36SS
48" Section 1487C48SS 1487D48SS 1487E48SS
60" Section 1487C60SS 1487D60SS 1487E60SS
120" Section 1487C120SS 1487D120SS 1487E120SS
6" Nipple 1487CM6SS 1487DM6SS 1487EM6SS
Standard Swivel Nipple 1487CV2SS 1487DV2SS 1487EV2SS
Flexible Fitting 1487CFFSS¹ 1487DFFSS¹ 1487EFFSS¹
Adjustable Fitting 1487CXSS¹ 1487DXSS¹ 1487EXSS¹
90° Elbow 1487C9PSS 1487D9PSS 1487E9PSS
45° Elbow 1487C4PSS 1487D4PSS 1487E4PSS
Tee Fitting 1487CTSS 1487DTSS 1487ETSS
Center Hole Reducers
Reducer - 6 x 6 to 4 x 4 - 1487DRCSS² -
Reducer - 8 x 8 to 4 x 4 - - 1487ERCCSS²
Reducer - 8 x 8 to 6 x 6 - - 1487ERCDSS²
Edge Hole Reducers
Reducer 6 x 6 to 4 x 4 - 1487DRESS² -
Reducer 8 x 8 to 4 x 4 - - 1487ERECSS²
Reducer 8 x 8 to 6 x 6 - - 1487EREDSS²
Box Connector 1487CKSS¹ 1487DKSS¹ 1487EKSS¹
Drop Hanger 1487CL1SS¹ 1487DL1SS¹ 1487EL1SS¹
Bracket Hanger 1487CL2SS¹ 1487DL2SS¹ 1487EL2SS¹
Cover Plate 1487CHSS² 1487DHSS² 1487EHSS²
Gasket & Screws 1487CSSS¹ 1487DSSS¹ 1487ESSS¹
